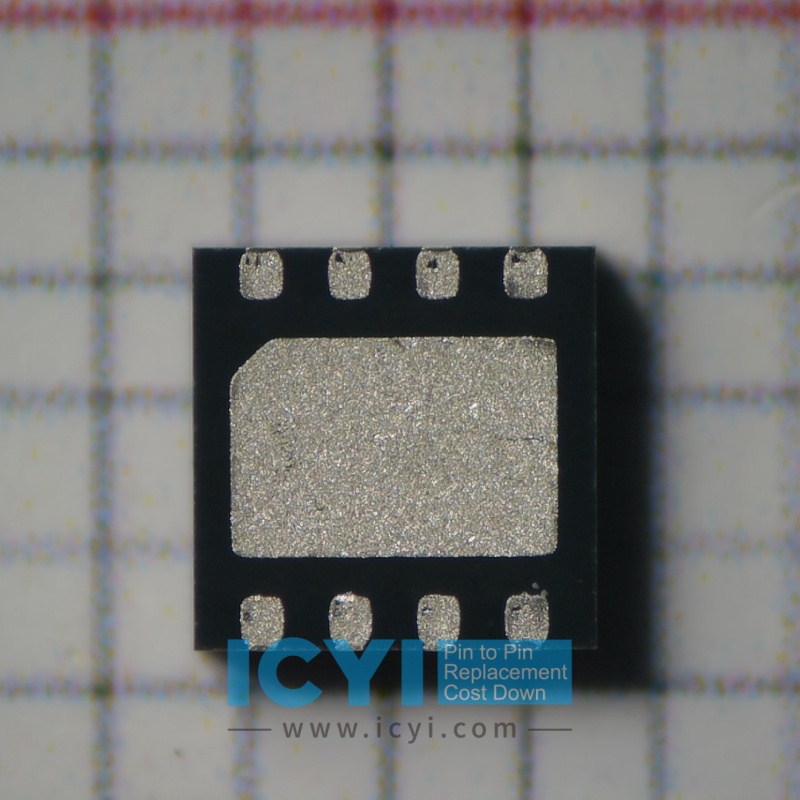

CA-IF4820FD RS485/RS422 Transceivers with ±30kV ESD Protection

CA-IF4820FD (Chipanalog) vs SN65HVD1474DR

The SN65HVD1474DR is an RS-485/RS-422 transceiver from Texas Instruments, designed for high-speed communication in industrial and automotive applications. While the SN65HVD1474DR offers good performance, the CA-IF4820FD brings several advantages, particularly in speed, integration, and reliability.

One of the most significant advantages of the CA-IF4820FD is its higher data rate capability. The CA-IF4820FD supports a maximum data rate of up to 20 Mbps, which is ideal for high-speed applications. In comparison, the SN65HVD1474DR is limited to a maximum speed of up to 10 Mbps. This higher data rate enables the CA-IF4820FD to handle more demanding, data-intensive tasks, making it a better choice for applications requiring high-speed communication.

CA-IF4820FD (Chipanalog) vs SN65HVD1474DR: Power Efficiency

Another key advantage of the CA-IF4820FD is its superior power efficiency. The CA-IF4820FD is designed to minimize power consumption while maintaining high performance, which is especially important in battery-powered or energy-sensitive applications. The SN65HVD1474DR, while efficient, does not match the CA-IF4820FD's ability to reduce power consumption at higher data rates. This makes the CA-IF4820FD a better fit for low-power applications such as portable devices, sensors, or remote monitoring systems.

CA-IF4820FD (Chipanalog) vs SN65HVD1474DR: Integration and Reliability

The CA-IF4820FD offers better integration, incorporating advanced features such as fault protection, overvoltage protection, and thermal shutdown in a single package. This high level of integration reduces the need for additional external components, simplifying the design and reducing overall system cost. In contrast, the SN65HVD1474DR may require more external protection circuitry to achieve a similar level of robustness.

Additionally, the CA-IF4820FD provides superior electromagnetic interference (EMI) immunity, ensuring reliable performance even in harsh industrial environments with high levels of noise. While the SN65HVD1474DR is also designed for use in industrial settings, its level of EMI protection may not be as advanced as that offered by the CA-IF4820FD, making the latter a more resilient choice in challenging environments.

CA-IF4820FD (Chipanalog) vs SN65HVD1474DR: Thermal Performance

In terms of thermal performance, the CA-IF4820FD excels with its ability to operate efficiently at higher temperatures. This makes it particularly suitable for applications that require high reliability under extreme conditions, such as automotive or industrial systems. The SN65HVD1474DR, while capable of operating in industrial environments, has more limited thermal tolerance compared to the CA-IF4820FD.

CA-IF4820FD (Chipanalog) vs SN65HVD1474DR: Cost and Design Flexibility

The CA-IF4820FD also offers cost advantages. Its high level of integration, coupled with lower power consumption, reduces the overall cost of the system by minimizing the need for additional external components. The SN65HVD1474DR, on the other hand, may require more external circuitry and components to meet the same performance and protection standards, which could lead to a higher total system cost.

Furthermore, the CA-IF4820FD provides greater design flexibility by offering more options for customization in different applications. Its advanced features and better integration allow for easier adaptation to specific customer requirements, making it a more versatile solution for a wider range of applications.

Summary of Advantages – CA-IF4820FD (Chipanalog)

In summary, the CA-IF4820FD offers several distinct advantages over the SN65HVD1474DR:

• Higher data rate of up to 20 Mbps, enabling more efficient handling of data-intensive tasks.

• Superior power efficiency, ideal for battery-powered or energy-sensitive applications.

• Better integration, with advanced fault protection, overvoltage protection, and thermal shutdown, reducing the need for external components.

• Enhanced EMI immunity, ensuring reliable performance in noisy industrial environments.

• Better thermal performance, making it suitable for extreme temperature applications.

• Lower system cost due to reduced external components and better overall integration.

• Greater design flexibility, making it adaptable for a wider range of applications.

The CA-IF4820FD is a more robust, energy-efficient, and high-performance alternative to the SN65HVD1474DR, offering a superior solution for industrial, automotive, and other demanding communication systems.
