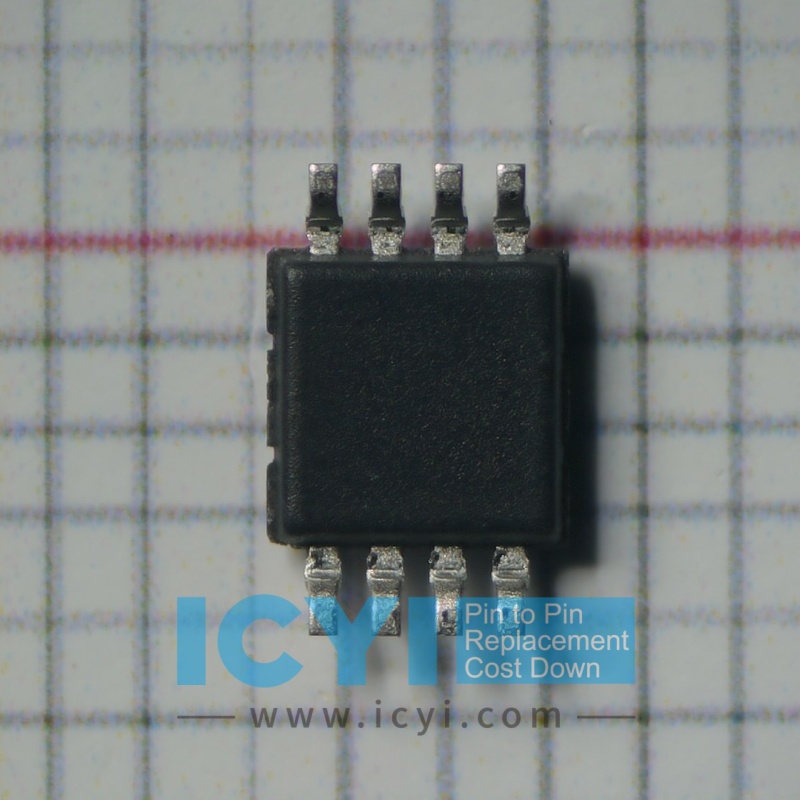

CA-IF4850HM RS485/RS422 Transceivers with ±30kV ESD Protection

CA-IF4850HM (Chipanalog) vs SN65HVD78DR

The SN65HVD78DR from Texas Instruments is a widely used RS-485 transceiver known for its robustness and reliability. However, the CA-IF4850HM provides distinct advantages over the SN65HVD78DR in several key areas, such as data rate, power efficiency, and protection features. The CA-IF4850HM supports a higher maximum data rate of 20 Mbps, whereas the SN65HVD78DR is limited to a maximum speed of 16 Mbps. This makes the CA-IF4850HM a better option for applications requiring faster data throughput, such as industrial automation and communication systems with high-speed data requirements.

CA-IF4850HM (Chipanalog) vs SN65HVD78DR - Power Efficiency

Another area where the CA-IF4850HM excels over the SN65HVD78DR is power efficiency. The CA-IF4850HM has been designed with low power consumption in mind, making it suitable for applications in battery-powered devices and energy-sensitive systems. In contrast, while the SN65HVD78DR is also relatively power-efficient, the CA-IF4850HM offers superior power-saving features, including sleep mode and automatic low-power states, which further extend the operational lifetime of devices relying on this chip.

CA-IF4850HM (Chipanalog) vs SN65HVD78DR - Integrated Protection Features

The CA-IF4850HM offers enhanced protection features, including overvoltage protection, short-circuit protection, and thermal shutdown capabilities. These integrated protection mechanisms significantly improve system reliability, reducing the need for additional external components for fault protection. The SN65HVD78DR also provides some level of protection but lacks the same comprehensive suite of integrated protections. For example, while it offers some level of thermal protection, it does not provide the overvoltage protection or short-circuit protection found in the CA-IF4850HM. This makes the CA-IF4850HM a more reliable and cost-effective solution for mission-critical applications where failure is not an option.

CA-IF4850HM (Chipanalog) vs SN65HVD78DR - EMI Immunity

In terms of electromagnetic interference (EMI) immunity, the CA-IF4850HM outperforms the SN65HVD78DR. The CA-IF4850HM has been specifically designed with enhanced EMI immunity to ensure stable performance even in high-noise industrial environments. This makes it ideal for communication systems in noisy settings, such as industrial control systems and heavy machinery. While the SN65HVD78DR also provides adequate EMI immunity, the CA-IF4850HM offers better resistance to high-frequency noise, ensuring that data integrity is maintained in the most challenging conditions.

CA-IF4850HM (Chipanalog) vs SN65HVD78DR - Temperature Range

The CA-IF4850HM is designed to operate across a wider temperature range, from -40°C to +125°C, making it suitable for extreme environmental conditions. The SN65HVD78DR, in comparison, operates within a narrower temperature range of -40°C to +85°C. This extended operating temperature range of the CA-IF4850HM allows it to be used in a broader range of applications, particularly those that involve exposure to high temperatures, such as automotive or outdoor industrial environments. This makes the CA-IF4850HM a more versatile choice for rugged and demanding environments.

CA-IF4850HM (Chipanalog) vs SN65HVD78DR - Flexibility in System Integration

The CA-IF4850HM provides greater flexibility in system integration by offering a higher level of integration with built-in termination resistors and fail-safe outputs. This reduces the need for external components and simplifies the overall system design, saving both time and cost. The SN65HVD78DR also supports RS-485 communication but lacks the same degree of integration, requiring additional external components such as termination resistors and fail-safe drivers. As a result, the CA-IF4850HM is a more streamlined and efficient solution, reducing the overall design complexity.

CA-IF4850HM (Chipanalog) vs SN65HVD78DR - Signal Integrity and Reliability

The CA-IF4850HM is designed to offer superior signal integrity with enhanced drive capability, ensuring reliable communication over longer distances and in more challenging environments. This improved signal integrity is particularly important for systems with long cable runs or high-speed data transmission. While the SN65HVD78DR offers good signal integrity, the CA-IF4850HM provides better high-speed performance with minimal degradation, making it a more reliable choice for applications requiring long-distance and high-speed data transmission.

Summary of Advantages – CA-IF4850HM (Chipanalog)

The CA-IF4850HM outperforms the SN65HVD78DR in several critical areas:

• Higher data rate of 20 Mbps compared to 16 Mbps, enabling faster communication.

• Enhanced power efficiency with advanced sleep modes and low-power operation, making it ideal for battery-operated systems.

• Superior integrated protection features, such as overvoltage protection, short-circuit protection, and thermal shutdown, offering greater system reliability.

• Better EMI immunity ensuring stable operation in noisy industrial environments.

• Wider temperature range of -40°C to +125°C, allowing operation in more extreme environmental conditions.

• Higher integration with built-in termination resistors and fail-safe outputs, reducing the need for external components.

• Improved signal integrity and higher reliability for long-distance and high-speed data transmission.

The CA-IF4850HM offers a comprehensive set of features that make it a superior choice over the SN65HVD78DR, especially in demanding industrial, automotive, and high-speed communication applications. Its enhanced performance, protection, and integration make it a more reliable, cost-effective, and efficient solution for complex communication systems.
