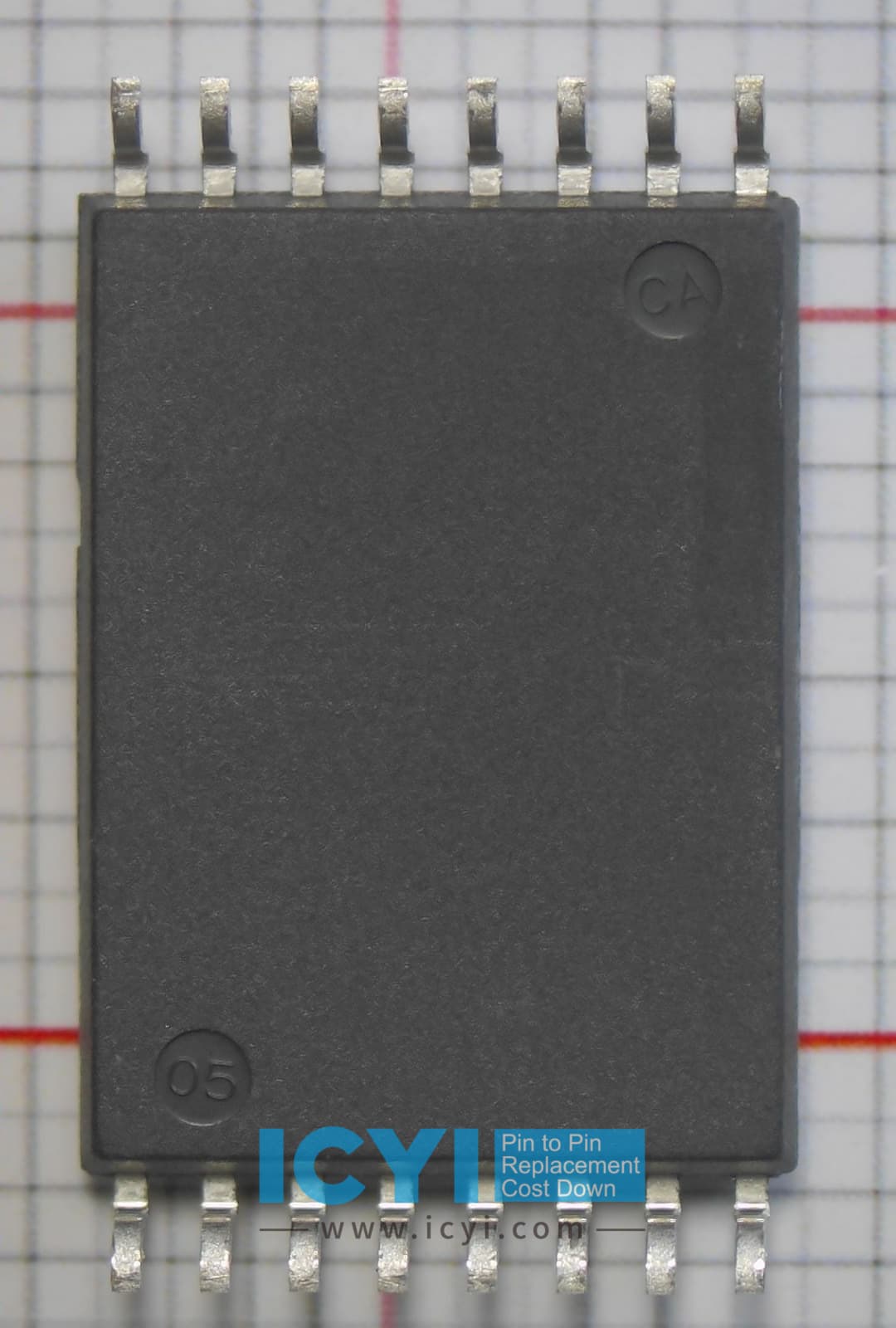

CA-IS3830LWW High Performance Reinforced Triple Channel Digital Isolators

CA-IS3830LWW

Comparison of CA-IS3830LWW vs. ISO7830FDWW: Highlighting Key Advantages of CA-IS3830LWW

The CA-IS3830LWW is a high-performance digital isolator designed for industrial, automotive, and communication applications. It offers advanced features such as high voltage isolation, low power consumption, fast switching speeds, and enhanced electromagnetic interference (EMI) immunity. When compared with ISO7830FDWW from Texas Instruments, both chips serve similar isolation purposes, but the CA-IS3830LWW stands out in several key areas. This comparison explores the strengths of the CA-IS3830LWW in relation to the ISO7830FDWW.

Voltage Isolation and Reliability

• CA-IS3830LWW: The CA-IS3830LWW offers a 5kV isolation rating, which is crucial for protecting sensitive circuits in high-voltage environments. It is engineered to meet the needs of safety-critical applications, including automotive electronics, industrial control systems, and high-voltage power management.

• ISO7830FDWW: The ISO7830FDWW has a 3.75kV isolation rating, which is lower than that of the CA-IS3830LWW. While it is adequate for general-purpose isolation tasks, it does not provide the same level of protection against voltage surges and spikes as the CA-IS3830LWW. For environments where higher isolation voltages are necessary, the CA-IS3830LWW offers superior protection.

Switching Speed and Propagation Delay

• CA-IS3830LWW: The CA-IS3830LWW is optimized for fast switching and low propagation delay, enabling quick data transmission with minimal latency. This is especially beneficial in applications requiring real-time processing, such as sensor data acquisition, industrial automation, and communication systems.

• ISO7830FDWW: While the ISO7830FDWW provides decent performance, its switching speed is somewhat slower than that of the CA-IS3830LWW. In high-speed applications, such as fast signal transmission or high-frequency communication, the CA-IS3830LWW provides a more efficient solution with its low latency and faster data throughput.

Power Consumption and Energy Efficiency

• CA-IS3830LWW: The CA-IS3830LWW is engineered with a focus on low power consumption, making it ideal for battery-powered systems, remote sensing applications, and other energy-sensitive environments. The chip operates with a low quiescent current and is designed to minimize overall power draw, which is crucial for energy-efficient designs.

• ISO7830FDWW: While the ISO7830FDWW is also designed with low power in mind, its power consumption is generally higher than the CA-IS3830LWW. For power-critical applications, the CA-IS3830LWW offers a more energy-efficient solution, helping to extend the operational lifespan of battery-operated devices and reducing energy costs.

Thermal Stability and Operating Conditions

• CA-IS3830LWW: The CA-IS3830LWW excels in thermal stability, offering reliable operation across a wide temperature range. This feature is essential in industrial environments, automotive applications, and other systems that are exposed to extreme temperature fluctuations. It ensures that the chip continues to function reliably under both high- and low-temperature conditions.

• ISO7830FDWW: The ISO7830FDWW performs well in standard temperature ranges but is less suitable for extreme temperature environments compared to the CA-IS3830LWW. For systems that require operation under harsh conditions, such as high-temperature industrial systems or automotive electronics, the CA-IS3830LWW offers better thermal endurance and reliability.

Electromagnetic Interference (EMI) Immunity

• CA-IS3830LWW: The CA-IS3830LWW is designed with enhanced EMI immunity, ensuring that it can withstand high levels of electromagnetic interference and maintain signal integrity. This is particularly important in applications such as automotive networks, industrial automation, and communication systems that operate in electromagnetically noisy environments.

• ISO7830FDWW: The ISO7830FDWW provides a reasonable level of EMI immunity, but it is not as robust as the CA-IS3830LWW in environments with high electromagnetic interference. For systems that require high reliability in the presence of EMI, the CA-IS3830LWW is the preferred option due to its superior EMI rejection capabilities.

Key Advantages of CA-IS3830LWW

1. Superior Voltage Isolation: The CA-IS3830LWW provides 5kV isolation, offering better protection against voltage surges and spikes than the ISO7830FDWW, which has a 3.75kV isolation rating.

2. Faster Switching Speed: With low propagation delay and high switching speeds, the CA-IS3830LWW outperforms the ISO7830FDWW in high-speed data transmission, making it ideal for real-time control and fast signal processing applications.

3. Lower Power Consumption: The CA-IS3830LWW is more energy-efficient, offering a lower quiescent current and reduced overall power consumption, making it the better choice for battery-operated systems and low-power applications.

4. Enhanced Thermal Stability: The CA-IS3830LWW offers superior thermal stability, making it more reliable in extreme temperature conditions compared to the ISO7830FDWW, which is better suited for standard temperature ranges.

5. Superior EMI Immunity: With enhanced EMI immunity, the CA-IS3830LWW is better equipped to handle environments with high electromagnetic interference, ensuring stable signal integrity in noisy environments.

Conclusion

The CA-IS3830LWW provides key advantages over the ISO7830FDWW, including higher voltage isolation, faster switching speeds, lower power consumption, better thermal stability, and superior EMI immunity. These features make the CA-IS3830LWW the optimal choice for high-performance, safety-critical, and energy-efficient applications that require reliable performance in challenging environments. Whether in automotive, industrial, or communication systems, the CA-IS3830LWW delivers a higher level of protection, efficiency, and reliability compared to the ISO7830FDWW, making it the preferred solution for advanced digital isolation needs.
