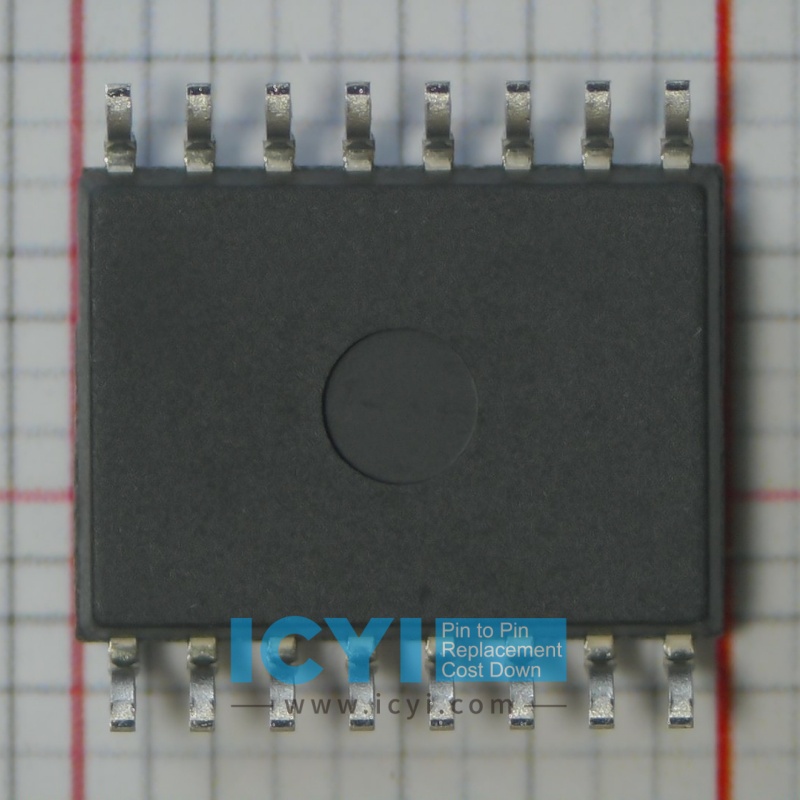

CA-IS3842LW High Performance Reinforced Quad Channel Digital Isolators

CA-IS3842LW

Comparison of CA-IS3842LW vs. ISO7842FDW: Highlighting the Advantages of CA-IS3842LW

The CA-IS3842LW is a robust, high-performance digital isolator designed for use in industrial, automotive, and telecommunications applications, providing superior voltage isolation, data transmission speed, power efficiency, and reliability. When compared with the ISO7842FDW from Texas Instruments, the CA-IS3842LW stands out in multiple aspects, offering enhanced features that make it a more suitable choice for demanding applications. In this comparison, we will evaluate the key aspects where the CA-IS3842LW excels.

Voltage Isolation and Safety

• CA-IS3842LW: The CA-IS3842LW offers a 5kV isolation rating, making it suitable for high-voltage applications where electrical isolation is critical for safety and performance. This high isolation capability ensures the protection of sensitive systems from electrical transients and noise, making it ideal for environments such as industrial control systems and automotive electronics.

• ISO7842FDW: The ISO7842FDW from Texas Instruments provides a 3.75kV isolation rating. While suitable for many industrial applications, this isolation rating is lower than that of the CA-IS3842LW, which means that the CA-IS3842LW offers greater protection against high-voltage transients and is better suited for high-voltage environments.

Data Transmission Speed and Performance

• CA-IS3842LW: The CA-IS3842LW is designed with low propagation delay of 18ns, enabling faster data transmission speeds. This makes it ideal for applications that require real-time data exchange and high-speed communication, such as industrial automation, control systems, and telecommunications.

• ISO7842FDW: The ISO7842FDW has a slightly slower propagation delay of 20ns, which can result in marginally slower data transfer. While still adequate for many applications, it cannot match the CA-IS3842LW in terms of speed and responsiveness, especially for high-frequency applications.

Power Consumption and Efficiency

• CA-IS3842LW: The CA-IS3842LW is engineered for low power consumption, making it particularly suitable for energy-sensitive applications. It features a standby current as low as 1.0µA, allowing for optimal power management and ensuring its efficiency in systems where energy conservation is a priority, such as battery-powered devices and portable electronics.

• ISO7842FDW: The ISO7842FDW also offers low power consumption, but it does not exhibit the same level of optimization in terms of energy efficiency. The CA-IS3842LW offers a more energy-efficient solution, especially in applications where power budget is a critical factor.

Temperature Range and Durability

• CA-IS3842LW: The CA-IS3842LW operates in an extended temperature range of -40°C to +125°C, which makes it highly durable in environments with extreme temperature fluctuations. This wide temperature range ensures the CA-IS3842LW maintains its performance and reliability even in the harshest conditions, such as automotive electronics or industrial equipment exposed to temperature extremes.

• ISO7842FDW: The ISO7842FDW has a temperature range of -40°C to +105°C, which is adequate for many industrial applications. However, its lower temperature tolerance makes it less suited for environments with higher thermal demands. The CA-IS3842LW provides better thermal stability for high-temperature environments, ensuring it operates reliably under more extreme conditions.

Electromagnetic Interference (EMI) Immunity

• CA-IS3842LW: The CA-IS3842LW excels in EMI immunity, offering superior resistance to electromagnetic interference. This feature is particularly important in industrial and automotive systems where high levels of electromagnetic noise can affect signal integrity. The CA-IS3842LW is designed to function optimally even in environments with substantial EMI, ensuring reliable communication in noisy conditions.

• ISO7842FDW: The ISO7842FDW offers EMI protection, but it does not match the level of resistance provided by the CA-IS3842LW. For applications where EMI is a concern, such as in automotive or industrial automation, the CA-IS3842LW offers better protection against signal degradation caused by external interference.

Key Advantages of CA-IS3842LW

1. Higher Voltage Isolation: The CA-IS3842LW offers 5kV isolation, compared to the ISO7842FDW's 3.75kV, providing superior safety and protection in high-voltage environments.

2. Faster Data Transmission: With a propagation delay of 18ns, the CA-IS3842LW ensures faster and more efficient data transfer than the ISO7842FDW, which has a propagation delay of 20ns.

3. Better Power Efficiency: The CA-IS3842LW offers lower standby current (1.0µA), making it more suitable for low-power applications where power consumption is a critical factor.

4. Wider Temperature Range: The CA-IS3842LW operates across a temperature range of -40°C to +125°C, providing greater thermal stability and making it ideal for harsh environments, in contrast to the ISO7842FDW's range of -40°C to +105°C.

5. Superior EMI Immunity: The CA-IS3842LW provides enhanced EMI resistance, ensuring reliable operation in noisy environments, a critical feature in industries such as automotive and industrial automation.

Conclusion

The CA-IS3842LW offers clear advantages over the ISO7842FDW from Texas Instruments. With its higher voltage isolation rating of 5kV, faster data transmission speed, lower power consumption, wider temperature range, and superior EMI immunity, the CA-IS3842LW is the ideal choice for high-performance applications in automotive, industrial, and telecommunications sectors. Its robust design, reliable performance, and energy efficiency make it a more suitable solution for environments requiring high isolation, real-time communication, and extended operational lifetimes.
