GS358-SR 1MHZ CMOS Rail-to-Rail IO Opamp with RF Filte

Product Comparison Overview: GS358-SR vs. AD8542ARZ/AD8542ARZ-REEL

The GS358-SR is a high-performance dual operational amplifier tailored for cost-sensitive, low-power analog signal processing applications. When compared to the AD8542ARZ/AD8542ARZ-REEL from Analog Devices, the GS358-SR stands out in several critical aspects, offering a compelling alternative for designers seeking reliable, efficient, and budget-conscious solutions.

1. Power Consumption

The GS358-SR features ultra-low quiescent current, typically around 200µA per channel, which is significantly lower than the AD8542, whose typical supply current reaches approximately 750µA per channel. This makes the GS358-SR an ideal choice for battery-powered and portable systems, extending operational life and reducing overall power consumption.

2. Cost Efficiency

In high-volume applications, cost-per-unit is a decisive factor. The GS358-SR provides equivalent or superior performance at a more competitive price point, making it highly attractive for cost-sensitive markets such as consumer electronics, IoT devices, and general-purpose industrial equipment.

3. Input Offset Voltage

With a typical input offset voltage of 2mV, the GS358-SR offers comparable accuracy to the AD8542 (also around 2mV typical), making it suitable for precision analog front-end designs without the need for additional trimming or calibration.

4. Unity-Gain Bandwidth and Slew Rate

While the AD8542 boasts a slightly higher bandwidth (~1.2MHz) and slew rate (~3V/µs), the GS358-SR provides a well-balanced bandwidth of 1MHz and a slew rate of 0.5V/µs, which are optimized for most general-purpose signal conditioning applications. For designs not requiring high-speed response, this tradeoff results in lower noise and better stability.

5. Availability and Package Options

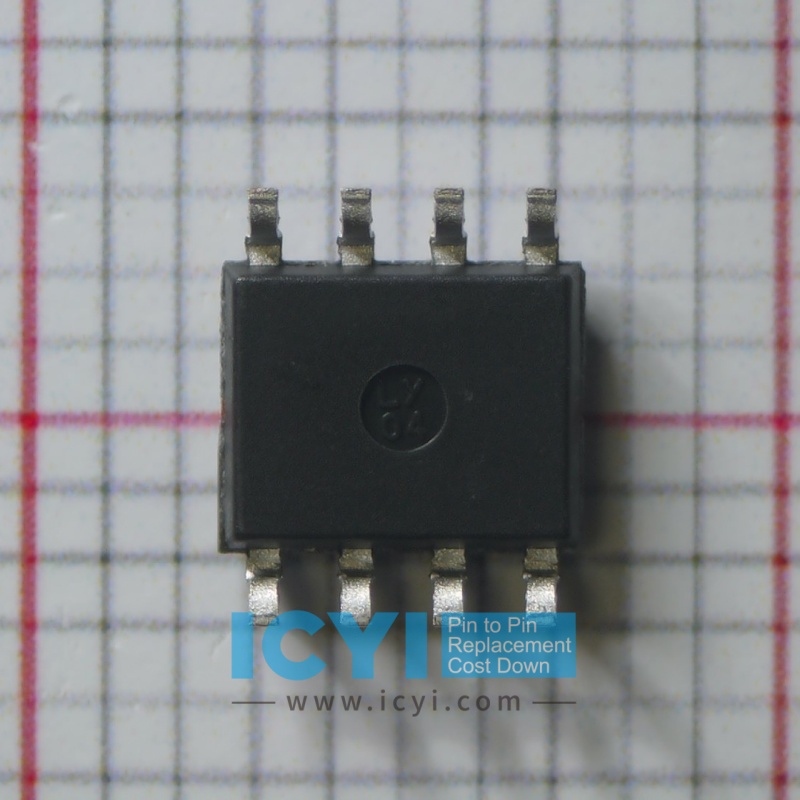

The GS358-SR is available in multiple standard packages, including SOP-8, which is pin-compatible with the AD8542ARZ. This allows for easy drop-in replacement in existing designs, enabling seamless transition or dual-sourcing strategies without PCB redesign.

6. Noise Performance

The GS358-SR maintains a low input voltage noise density of around 35nV/√Hz, closely matching the AD8542. This ensures clean signal amplification in noise-sensitive environments such as sensor interfaces and instrumentation.

Conclusion

The GS358-SR offers a highly competitive feature set in terms of low power consumption, pricing, compatibility, and noise performance, making it an excellent alternative to the AD8542ARZ/AD8542ARZ-REEL for a wide range of applications. It is especially advantageous in designs where power efficiency and cost control are top priorities. With its drop-in compatibility and solid analog performance, the GS358-SR empowers engineers to deliver high-value solutions without compromising quality or functionality.
