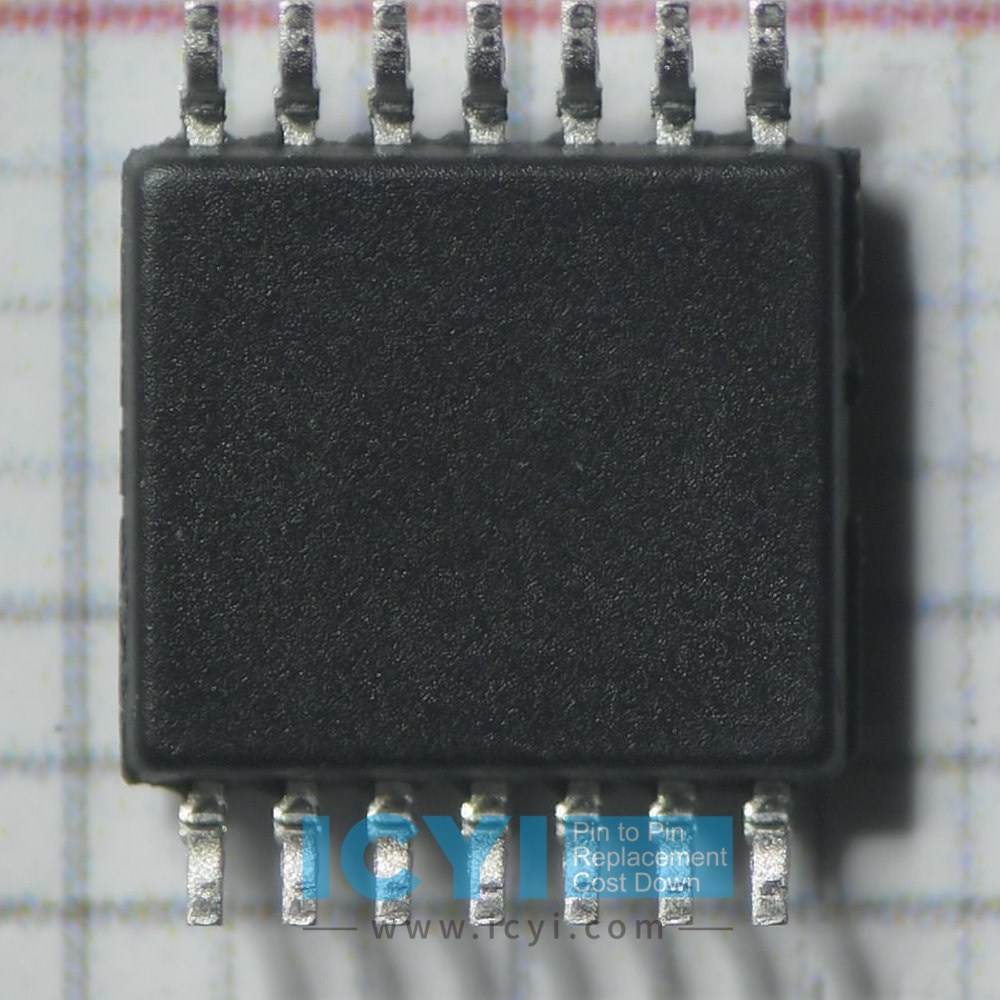

RS824XQ 14MHz, Rail-to-Rail I/O CMOS Operational Amplifier

RS824XQ vs. Competitors: A Comprehensive Comparison

The RS824XQ is an advanced operational amplifier designed by RUNIC, offering exceptional precision, low power consumption, and excellent temperature stability. In this comparison, we will analyze the RS824XQ against three key competitors in the market: OPA4322AIPWR and OPA4322AQPWRQ1 from Texas Instruments, and MCP634-E/ST from Microchip, highlighting the superior performance and advantages of the RS824XQ in various critical applications.

RS824XQ vs. OPA4322AIPWR

The OPA4322AIPWR from Texas Instruments is a low-power, precision quad op-amp designed for applications requiring low offset voltage and low quiescent current. However, when compared to the RS824XQ, there are several key advantages that RS824XQ offers:

1. Lower Offset Voltage: The RS824XQ provides a significantly lower offset voltage (typically 20 μV) compared to the OPA4322AIPWR's typical offset voltage of 50 μV. This translates to higher accuracy in precision-sensitive applications, such as sensor interfacing, where minimizing offset error is crucial.

2. Better Power Efficiency: While the OPA4322AIPWR is designed to be low-power, the RS824XQ is even more power-efficient, with lower quiescent current and lower supply current, making it ideal for battery-powered systems and portable devices that demand long battery life.

3. Enhanced Temperature Stability: The RS824XQ exhibits superior temperature stability, ensuring minimal drift across a wide temperature range, compared to the OPA4322AIPWR, which has a higher temperature coefficient. This makes the RS824XQ a more reliable choice in extreme environments, such as industrial or automotive applications.

RS824XQ vs. OPA4322AQPWRQ1

The OPA4322AQPWRQ1 is the automotive-grade version of the OPA4322 op-amp, offering enhanced reliability in automotive applications. While this op-amp is designed for the automotive market, the RS824XQ provides several distinct advantages, especially in terms of precision and power efficiency:

1. Superior Precision: The RS824XQ offers a lower offset voltage and lower input bias current than the OPA4322AQPWRQ1, making it better suited for high-accuracy applications, such as signal conditioning in medical devices and precision instrumentation.

2. Higher Bandwidth: The RS824XQ supports a bandwidth of 10 MHz, providing a faster response time and better high-frequency performance compared to the OPA4322AQPWRQ1, which typically has a bandwidth of around 5 MHz. This makes the RS824XQ more suitable for high-speed signal processing applications where maintaining signal integrity at higher frequencies is essential.

3. Lower Power Consumption: The RS824XQ operates with lower supply current than the OPA4322AQPWRQ1, providing better power efficiency for low-power systems, without compromising on performance, especially in battery-operated designs.

RS824XQ vs. MCP634-E/ST

The MCP634-E/ST from Microchip is a low-power, general-purpose operational amplifier aimed at applications where minimal power consumption is critical. While the MCP634-E/ST performs well in low-power settings, the RS824XQ excels in areas requiring greater precision and faster response times:

1. Better Precision: The RS824XQ has an offset voltage of 20 μV, significantly lower than the MCP634-E/ST's typical offset voltage of 50 μV. This provides more accurate signal amplification, making the RS824XQ more suitable for high-precision applications such as data acquisition systems and sensor interfaces.

2. Higher Speed and Bandwidth: The RS824XQ offers a 10 MHz bandwidth, providing faster signal processing capabilities compared to the MCP634-E/ST, which is limited to a 1 MHz bandwidth. This makes the RS824XQ more appropriate for high-speed applications like signal conditioning and audio processing, where faster processing speeds are essential.

3. Superior Temperature Stability: The RS824XQ exhibits better temperature stability, with lower drift over a wide temperature range. In contrast, the MCP634-E/ST may experience more significant temperature-induced changes in its performance, making the RS824XQ the better option for temperature-sensitive applications such as automotive and industrial environments.

Key Advantages of RS824XQ

• Superior Precision: The RS824XQ offers a low offset voltage (20 μV) and low input bias current, ensuring highly accurate signal amplification for sensitive applications.

• Enhanced Power Efficiency: With its low quiescent current and low supply current, the RS824XQ is designed to be highly power-efficient, making it ideal for battery-operated and low-power designs.

• Higher Bandwidth: The RS824XQ provides a 10 MHz bandwidth, allowing for faster signal processing and better performance in high-speed applications.

• Improved Temperature Stability: The RS824XQ is designed with better temperature stability, ensuring reliable operation across a wide temperature range, making it suitable for industrial and automotive applications.

Conclusion

The RS824XQ stands out as a superior precision operational amplifier when compared to competitors such as the OPA4322AIPWR, OPA4322AQPWRQ1, and MCP634-E/ST. With its lower offset voltage, higher bandwidth, and better power efficiency, the RS824XQ is ideal for applications requiring high-accuracy, low-power consumption, and reliable performance across a broad temperature range. Whether in sensor interfacing, signal conditioning, or high-speed processing, the RS824XQ offers the best combination of precision and efficiency, making it the optimal choice for a wide range of industrial, automotive, and portable device applications.
