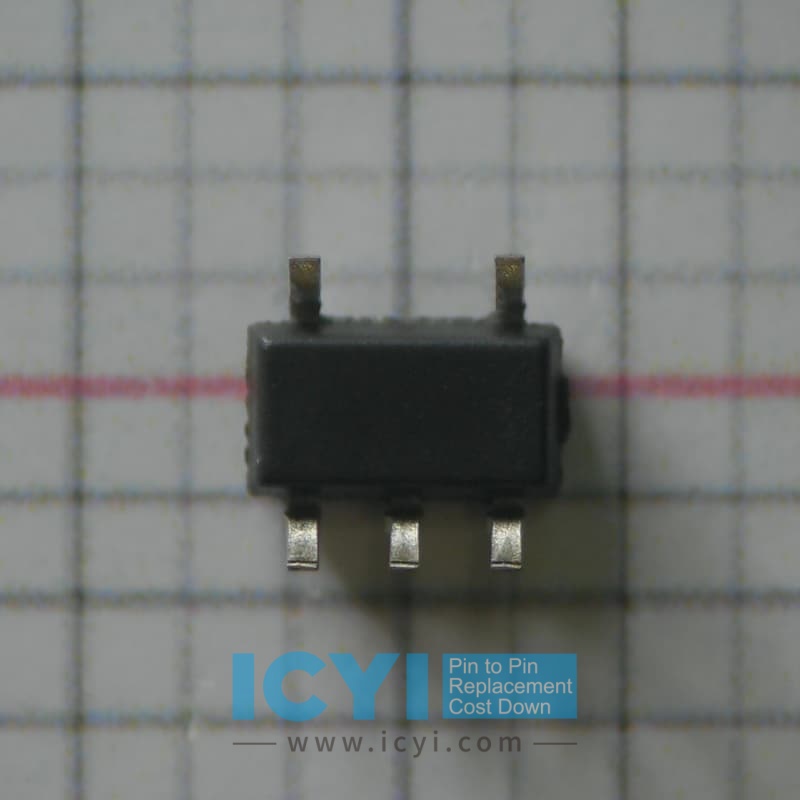

RY3415 5.5V 1.5A 1.5MHz Sync Step-Down Regulator

RY3415

Efficiency and Power Conversion

• RY3415: The RY3415 features an ultra-efficient buck regulator with a peak efficiency of up to 96%. This high efficiency minimizes power loss, improving thermal management and extending battery life in portable applications. The RY3415 is engineered to maintain consistent performance even under light loads, ensuring that energy consumption is kept to a minimum.

• TLV62565DBVR: The TLV62565DBVR offers a maximum efficiency of around 92%. While efficient for many applications, this is lower than the RY3415, which may result in greater power dissipation and increased thermal output. For battery-operated devices and low-power systems, the RY3415's higher efficiency provides an edge, especially in environments where thermal constraints are a concern.

Output Voltage Range

• RY3415: The RY3415 provides a wide output voltage range from 0.8V to 5.5V, allowing it to meet the needs of a broad spectrum of applications, from low-voltage microprocessors to 5V logic systems. This wide range makes it suitable for powering a variety of devices, ensuring compatibility with different systems and design requirements.

• TLV62565DBVR: The TLV62565DBVR supports a more limited output voltage range of 0.8V to 5V, which, while still versatile, may not be as accommodating in applications requiring precise voltage levels or for systems that operate at higher voltage levels. The RY3415 offers more flexibility in meeting various design specifications.

Current Handling and Power Capability

• RY3415: The RY3415 can deliver a maximum output current of 3A, making it ideal for applications with higher current requirements such as FPGA, communications equipment, or industrial automation. Its ability to handle larger current draws while maintaining high efficiency ensures that it performs optimally in high-demand environments.

• TLV62565DBVR: The TLV62565DBVR is rated for a maximum output current of 2A. While sufficient for most low to moderate power applications, this lower current capacity might not meet the needs of high-power devices or systems that require 3A or more. The RY3415's ability to deliver 3A of current gives it a distinct advantage in power-hungry applications.

Package and Size

• RY3415: The RY3415 comes in a compact QFN-16 package, making it ideal for space-constrained designs. Its small footprint and efficient power handling make it suitable for portable electronics, IoT devices, and other applications where minimizing PCB real estate is crucial.

• TLV62565DBVR: The TLV62565DBVR is also packaged in a small 3mm x 3mm QFN package, which provides a similar advantage in terms of size. However, the RY3415's higher current output and efficiency in the same compact package make it a more attractive solution for systems that require both space-saving and high-power capabilities.

External Components and Flexibility

• RY3415: The RY3415 is designed to minimize the need for external components, with a simple and flexible external component selection, providing significant ease of integration into system designs. This helps reduce overall system complexity and cost. Its adjustable switching frequency also provides designers with more control over electromagnetic interference (EMI) and noise.

• TLV62565DBVR: The TLV62565DBVR requires slightly more external components to achieve optimal performance, especially for handling noise and optimizing EMI. The RY3415's more streamlined external component requirements provide greater flexibility and design simplicity, especially in applications that demand low noise and stable performance over varying loads.

Thermal Management and Reliability

• RY3415: The RY3415 is optimized for excellent thermal performance, thanks to its high efficiency and low heat generation. It features a wide operating temperature range of -40°C to +125°C, which ensures reliable operation even in harsh environmental conditions, such as industrial and automotive applications.

• TLV62565DBVR: The TLV62565DBVR also operates in a similar temperature range of -40°C to +125°C but has a slightly higher thermal dissipation due to its lower efficiency. In applications with thermal constraints or extended operating hours, the RY3415's ability to maintain lower temperatures while providing higher efficiency makes it the superior choice for reliability and long-term operation.

Startup and Control Features

• RY3415: The RY3415 integrates advanced startup features such as soft-start and voltage tracking, making it easier to integrate into systems with complex power-up sequences. It also provides features like undervoltage lockout (UVLO) and overcurrent protection, ensuring safe and reliable operation in demanding environments.

• TLV62565DBVR: The TLV62565DBVR includes basic startup features, but lacks the same advanced features that are integrated into the RY3415. The RY3415's soft-start capability and protection features give it an advantage in sensitive power systems where maintaining voltage stability and protecting against overcurrent is critical.

Key Advantages of RY3415

1. Higher Efficiency: The RY3415 offers up to 96% efficiency, which leads to lower power loss, reduced heat generation, and improved system reliability, especially in power-sensitive applications like mobile devices and portable electronics.

2. Higher Output Current: With a 3A output current, the RY3415 is better suited for high-power applications such as FPGA, communication equipment, and industrial automation, while the TLV62565DBVR can only provide 2A.

3. Flexible Output Voltage Range: The RY3415 offers a slightly wider output voltage range of 0.8V to 5.5V, providing more design flexibility for a wider variety of applications compared to the TLV62565DBVR's 0.8V to 5V range.

4. Smaller Footprint with High Power: Despite its compact QFN-16 package, the RY3415 delivers more power and efficiency than the TLV62565DBVR, making it a more space-efficient solution for high-power designs.

5. Advanced Protection and Control: The RY3415 integrates advanced protection features like undervoltage lockout, overcurrent protection, and soft-start, ensuring safe, reliable, and controlled operation, making it ideal for critical and safety-sensitive applications.

Conclusion

In conclusion, the RY3415 stands out as a more efficient, powerful, and flexible DC-DC regulator when compared to the TLV62565DBVR. Its higher efficiency, higher output current, broader output voltage range, and advanced protection features make it the superior choice for demanding applications in mobile, industrial, and communications sectors. The RY3415's enhanced performance and low thermal dissipation ensure it operates reliably even in power-hungry or thermally constrained environments, providing a more robust solution than the TLV62565DBVR.
