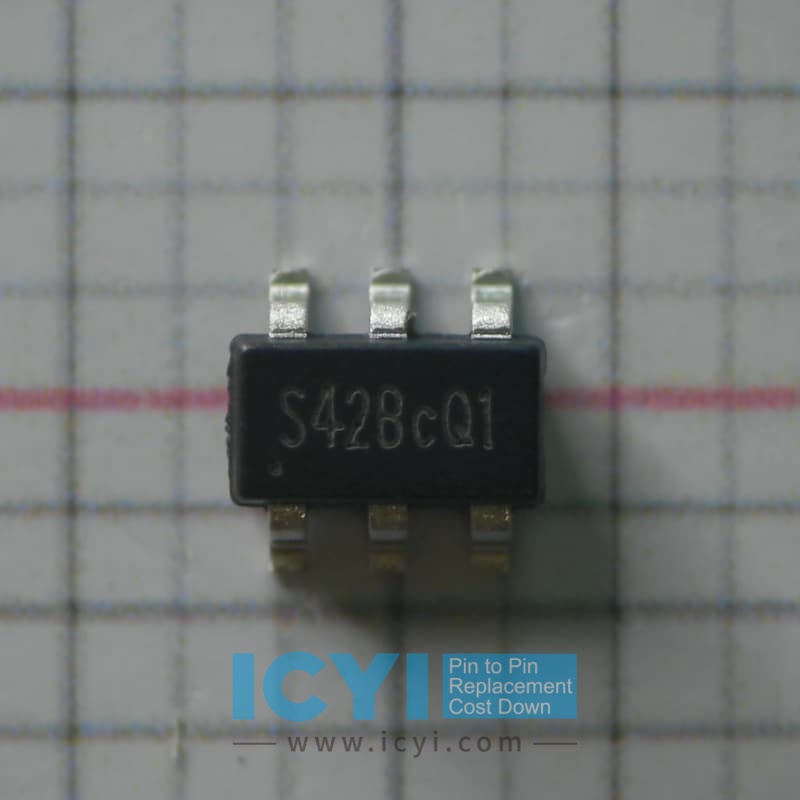

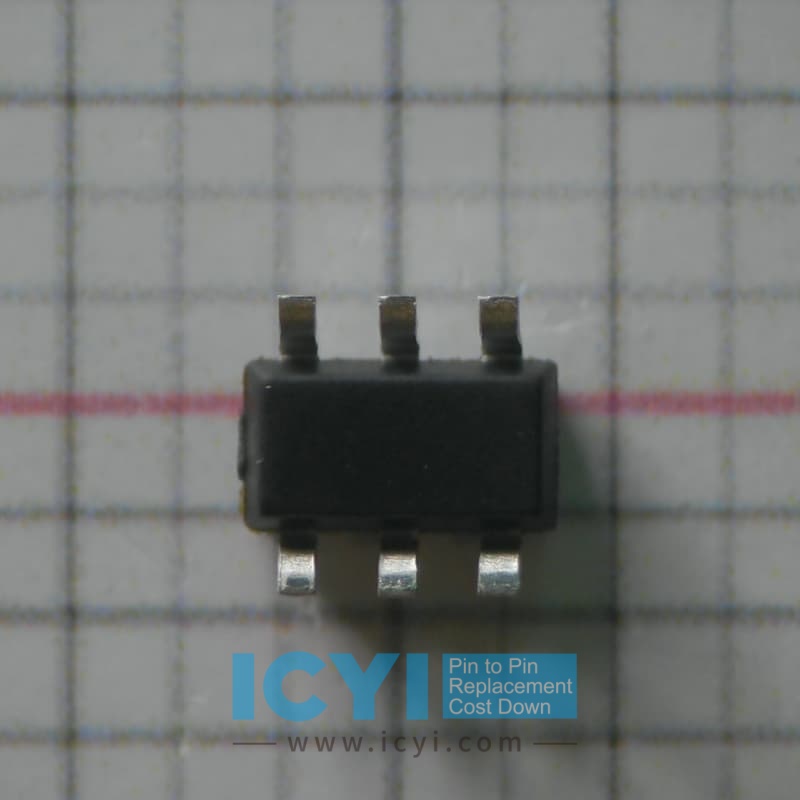

STI3472 600kHz, 18V, 2A Synchronous Step-Down Converter

Overview of STI3472 and TPS562200DDCR

The STI3472 from Tollsemi is a high-efficiency synchronous buck converter that delivers reliable power conversion with excellent output regulation and low ripple, making it suitable for a broad range of applications, including industrial, automotive, and consumer electronics. It is designed to provide a stable output voltage with a wide input voltage range, ensuring robustness in varying conditions.

The TPS562200DDCR from Texas Instruments is also a synchronous buck converter aimed at providing efficient power conversion for various applications. It offers similar features, but there are distinct differences between the two products in terms of performance, flexibility, and other critical parameters.

Efficiency and Power Conversion

1. Superior Efficiency of STI3472:

   • The STI3472 is optimized for high-efficiency operation, with typical efficiency values reaching up to 95%, ensuring minimal energy loss and lower heat generation. This is particularly beneficial for applications where power consumption and thermal management are critical, such as battery-powered devices and industrial control systems.

   • While the TPS562200DDCR offers a good efficiency of up to 92%, it falls slightly behind in terms of overall efficiency, especially under heavy load conditions. The STI3472’s higher efficiency helps reduce the need for additional cooling measures, offering a more energy-efficient solution for designers.

Input Voltage Range and Flexibility

2. Wider Input Voltage Range with STI3472:

   • The STI3472 boasts a broader input voltage range, accommodating 4.5V to 60V input, which allows it to power a wider variety of systems and adapt to fluctuating input conditions. This makes the STI3472 highly flexible for automotive and industrial applications where the input voltage can vary.

   • The TPS562200DDCR has a more limited input range of 4.5V to 18V, restricting its use in applications that require higher input voltage levels. The STI3472’s wider range provides more flexibility, especially in systems that experience significant voltage fluctuations.

Current Handling and Load Performance

3. Enhanced Current Capability with STI3472:

   • The STI3472 supports higher output currents, capable of delivering up to 2A of continuous output current. This makes it ideal for high-power applications that demand more substantial current, such as industrial sensors, communications equipment, and telecom systems.

   • The TPS562200DDCR supports a maximum continuous output current of 2A as well, but the STI3472 excels in handling dynamic load changes, ensuring better load regulation and more stable operation under varying conditions.

Thermal Performance and Heat Dissipation

4. Superior Thermal Management in STI3472:

   • The STI3472 is designed with advanced thermal management features, ensuring that it maintains a stable operating temperature even under high-load conditions. Its efficient power conversion reduces the overall heat dissipation, which is vital for systems where heat buildup can negatively impact performance and reliability.

   • The TPS562200DDCR performs well thermally but has a slightly lower efficiency compared to the STI3472, which can lead to higher heat generation under certain operational conditions. The STI3472’s superior thermal performance ensures better heat management, which is particularly beneficial in space-constrained or high-power applications.

Output Voltage Range and Precision

5. Enhanced Output Voltage Precision with STI3472:

   • The STI3472 features excellent output voltage regulation, offering precise voltage control with a tight tolerance. This is essential for powering sensitive digital circuits and high-precision devices that require stable, low-noise power supplies.

   • The TPS562200DDCR provides good voltage regulation, but the STI3472 stands out with its ability to deliver more accurate and stable output voltages, which is particularly beneficial in sensitive electronics or communications applications where precision is paramount.

Size and Integration

6. Compact and Highly Integrated Design of STI3472:

   • The STI3472 is highly integrated with a compact form factor, reducing the need for external components, simplifying the design process, and saving board space. This is particularly advantageous in space-sensitive applications such as consumer electronics or portable devices.

   • While the TPS562200DDCR is also compact, it may require additional external components to achieve the same level of integration found in the STI3472. The STI3472's higher integration helps streamline the design and improves overall reliability.

Protection Features and Reliability

7. Advanced Protection Features in STI3472:

   • The STI3472 includes robust protection features, such as over-current protection, thermal shutdown, under-voltage lockout, and short-circuit protection, ensuring that the device operates safely in harsh conditions. These protection features enhance the reliability of the power system, making the STI3472 a more dependable choice for mission-critical applications.

   • The TPS562200DDCR also offers over-current protection and thermal shutdown, but the STI3472 integrates a wider range of protection features, contributing to its superior reliability in more demanding environments.

Cost-Effectiveness

8. Competitive Pricing and Cost Savings with STI3472:

   • Despite its advanced features, the STI3472 is competitively priced, offering an excellent performance-to-cost ratio. This makes it an attractive option for cost-sensitive applications, offering high efficiency, flexibility, and advanced protection without compromising on performance.

   • The TPS562200DDCR is similarly priced but requires additional components to achieve comparable performance. The STI3472 offers a more cost-effective solution by reducing the need for extra components and providing a higher level of integration.

Conclusion

In conclusion, Tollsemi's STI3472 outperforms Texas Instruments' TPS562200DDCR in several key areas, including efficiency, input voltage range, current handling, thermal management, and protection features. Its ability to deliver high efficiency, support broader input voltage ranges, and offer superior thermal and voltage regulation makes it the ideal choice for high-power, mission-critical, and reliable power applications. Furthermore, its compact design, integrated features, and competitive pricing make it a more cost-effective solution for designers seeking an efficient and versatile power management solution.

For design engineers looking for a high-performance, reliable, and cost-effective solution for power conversion, the STI3472 is clearly the superior choice over the TPS562200DDCR.
