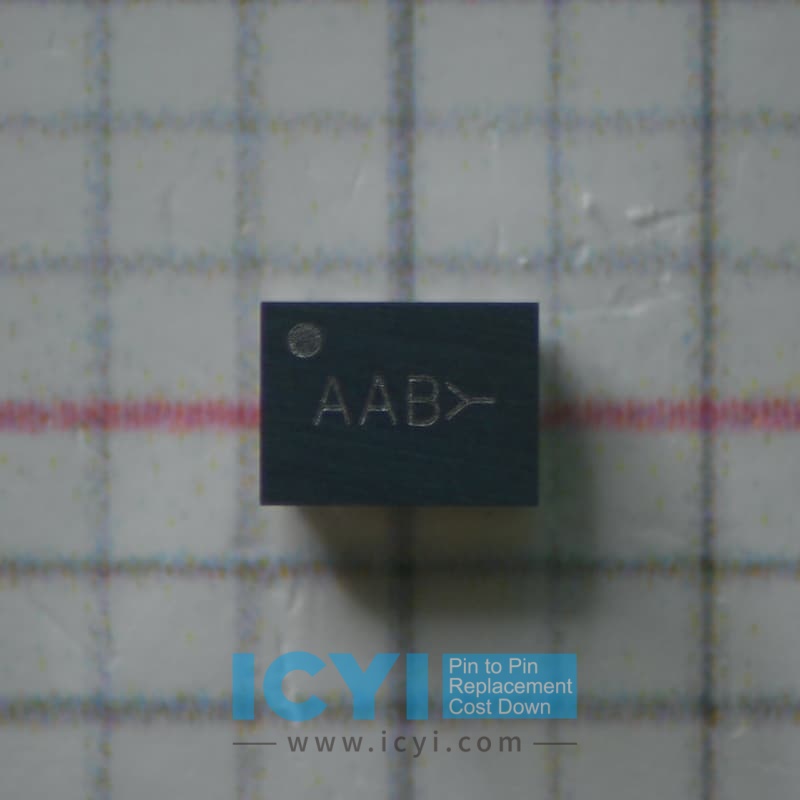

UM3204H 4-Bit Bidirectional Voltage-Level Translator

UM3204H is a Replacement parts of

TRS202EID


UM3204H has good quality and a cheaper price, which can effectively help you reduce costs and make your products more competitive. In addition, we have sufficient supply and stable price of this parts, which can greatly help you to avoid problems such as price increases and parts shortages of similar products from other brands.
  • Mfr.Part No. :

    UM3204H
  • Manufacturer :

    UNION
  • Description :

    4-Bit Bidirectional Voltage-Level Translator for Open-Drain and Push-Pull Application
  • Packaging :

    Reel
  • Package :

    CSP-12(1.4x1.9)
  • Stock :

    in stock
  • Price :

    $0.29-$0.58



UM3204H



Price: $0.29-$0.58 $0.6-$0.88
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
UM3204H
TRS202EID




Overview

Union’s UM3204H is a high-performance RS-232 transceiver designed for robust serial communication in harsh industrial, automotive, and consumer applications. It features integrated charge pumps, ±15kV ESD protection, and high data rate support. The TRS202EID from Texas Instruments is a well-established dual-channel RS-232 transceiver with similar features. However, the UM3204H provides several advantages in terms of protection, performance, and power efficiency, making it a highly competitive and reliable alternative.


ESD Protection and Electrical Robustness

A key differentiator of the UM3204H is its ±15kV IEC61000-4-2 ESD protection on RS-232 pins (both contact and air discharge). This high level of protection ensures outstanding reliability in environments prone to electrostatic discharge, such as industrial equipment, medical devices, or consumer interfaces.

In comparison, the TRS202EID only provides ±2kV HBM (Human Body Model) ESD protection, which is significantly lower and may require additional protection circuitry in demanding applications. Thus, UM3204H minimizes the need for external TVS components, reducing system cost and complexity.


Power Supply and Efficiency

The UM3204H operates from a single 3.0V to 5.5V power supply, offering excellent flexibility across both legacy and modern designs. It features low quiescent current (<1 µA in shutdown) and an automatic power-down mode, which significantly extends battery life in portable systems.

While the TRS202EID also supports 3.3V and 5V supply operation, it consumes higher static power and lacks power-saving shutdown features in some configurations. Therefore, UM3204H is better suited for power-sensitive and battery-operated applications.


Data Rate and Signal Integrity

The UM3204H supports data rates up to 1 Mbps, which is sufficient for nearly all RS-232 applications including modems, printers, automation systems, and embedded debugging. Its internal slew rate control reduces EMI and ensures signal integrity over long cables.

The TRS202EID typically supports up to 250 kbps to 1 Mbps, depending on the load and supply conditions. However, under capacitive loading or longer cable lengths, signal distortion is more likely to occur due to less refined edge control. Union’s UM3204H offers improved signal clarity and better performance under adverse cable conditions.


Integration and System Simplification

UM3204H includes an internal charge pump, requiring only four low-cost external capacitors for full RS-232 voltage level generation. Its footprint and pinout are compatible with industry-standard RS-232 ICs, allowing for seamless drop-in replacement in existing designs.

TRS202EID also uses a charge pump but may require larger-value capacitors (1 µF) for stability and full compliance across the voltage range. UM3204H’s ability to work with smaller (0.1 µF) capacitors offers space and BOM cost savings, particularly in compact system boards.


Packaging and Thermal Performance

Union offers the UM3204H in a compact SOP-16 or TSSOP-16 package, suitable for automated assembly and thermally constrained environments. The device is designed to maintain thermal stability under continuous operation, even in extended industrial temperature ranges (-40°C to +85°C).

The TRS202EID is also available in a similar 16-pin SOIC package, but Union's tighter thermal resistance control and lower quiescent current result in better thermal efficiency, making the UM3204H a superior choice for high-density or high-temperature environments.


Cost Competitiveness and Supply Stability

Union’s UM3204H is priced competitively and benefits from shorter lead times and high-volume production readiness, ensuring supply continuity in today’s challenging procurement climate. It is fully qualified for mass production and supported with detailed datasheets and reference designs.

In contrast, TI’s TRS202EID has been subject to availability fluctuations and longer lead times, which can pose challenges for time-sensitive designs. Union’s domestic support and flexible logistics model give customers a dependable sourcing advantage.


Conclusion

The Union UM3204H RS-232 transceiver provides clear advantages over TI’s TRS202EID, particularly in:

  • Superior ±15kV ESD protection

  • Lower power consumption with power-down mode

  • Higher data rate stability across varying conditions

  • Compact integration with smaller external components

  • Robust thermal and electrical reliability

  • Cost-effective supply chain support



For customers seeking a reliable, efficient, and robust RS-232 solution, the UM3204H stands out as a stronger alternative for modern serial communication needs.
