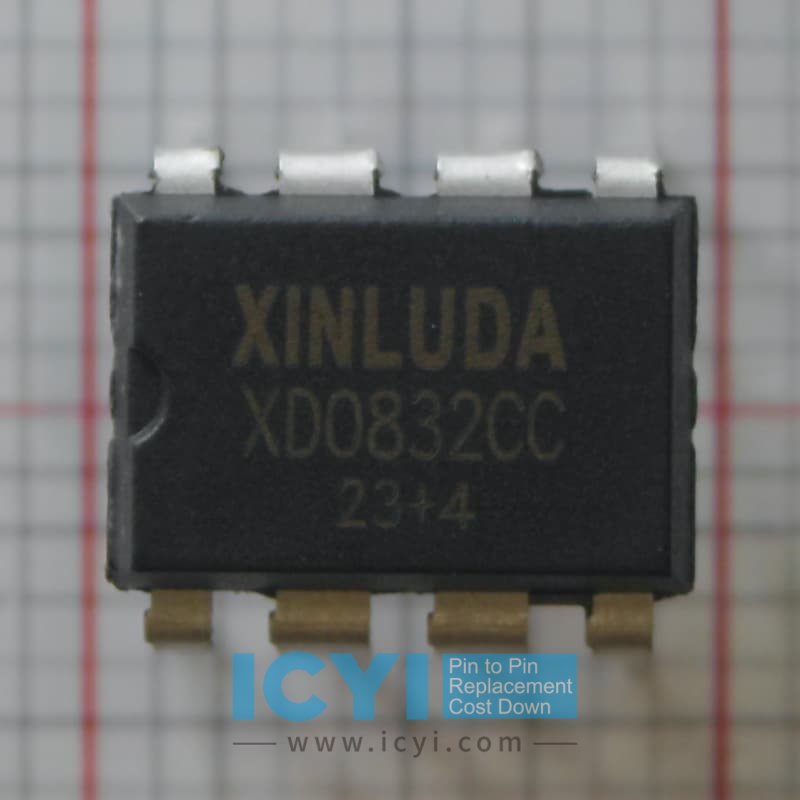

XD0832CC 8-bit analog-to-digital converter

Product Overview

The XINLUDA XD0832CC is a dual-channel, 8-bit resolution analog-to-digital converter (ADC) designed for microcontroller interfacing in low-power embedded systems. It directly competes with the ADC0832CCN/NOPB from Texas Instruments, offering nearly identical functional specifications and pin-to-pin compatibility. However, XD0832CC provides notable advantages in sourcing flexibility, reliability, and cost-effectiveness without sacrificing performance.

Functionality and Performance

Both the XD0832CC and ADC0832CCN/NOPB offer 8-bit successive approximation ADC conversion with 2-channel analog input, selectable via an internal multiplexer. The devices include a serial interface that simplifies communication with microcontrollers, particularly in systems with limited GPIOs.

In terms of data acquisition accuracy, timing specifications, and conversion rate, XD0832CC matches the performance of its competitor, ensuring drop-in replacement compatibility for most designs.

Advantage: Functionally equivalent to the ADC0832CCN/NOPB, while maintaining full software and hardware compatibility.

Supply Voltage and Power Consumption

Both devices operate within a supply voltage range of +4.5V to +5.5V, typically powered from a 5V rail. However, XD0832CC is optimized for lower quiescent current consumption, which helps extend battery life in portable or always-on applications.

Advantage: Reduced static power draw, ideal for energy-conscious or battery-powered designs.

Temperature Range and Reliability

XD0832CC is rated for the full industrial temperature range of –40°C to +85°C, identical to the operating range of ADC0832CCN/NOPB. It undergoes rigorous reliability screening, including 100% functional testing and ESD stress validation, ensuring dependable performance in harsh environments.

Advantage: Industrial-grade robustness with proven ESD performance and consistent quality across production lots.

Packaging and Pin Compatibility

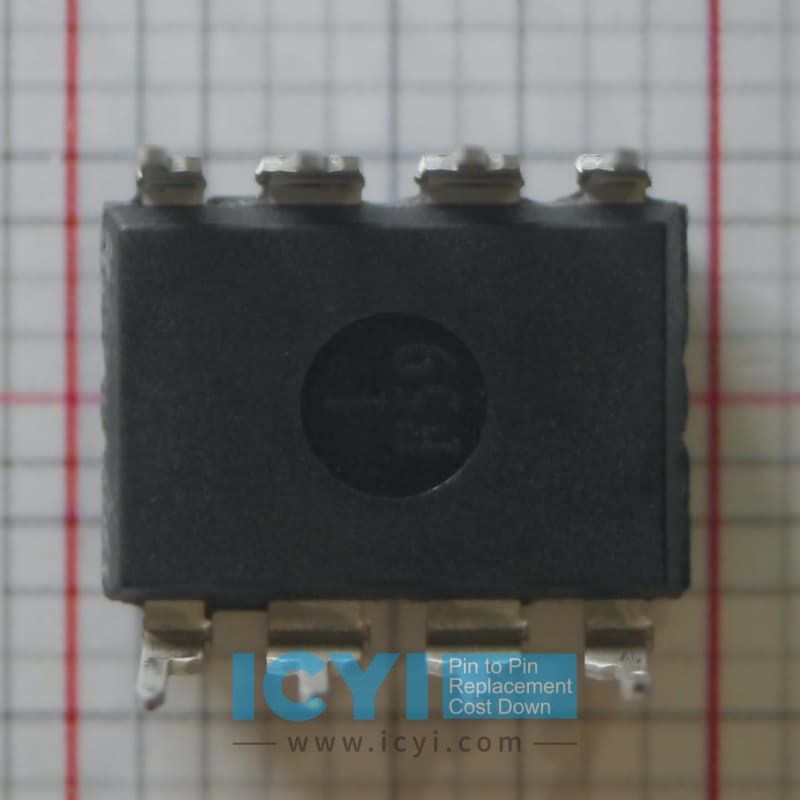

Both chips are housed in 8-pin DIP (Dual In-line Package) format, facilitating easy prototyping and through-hole assembly. The XD0832CC is a pin-to-pin drop-in alternative to the ADC0832CCN/NOPB, requiring no changes to existing PCB layout or firmware in legacy systems.

Advantage: Seamless integration into existing designs as a direct replacement without engineering overhead.

Sourcing and Cost Efficiency

The XINLUDA XD0832CC offers clear advantages in price competitiveness and lead time, particularly important in high-volume applications or during global supply chain constraints. While ADC0832CCN/NOPB may experience longer lead times and pricing volatility, XD0832CC maintains stable supply and favorable cost-performance for both industrial and consumer applications.

Advantage: Improved supply availability and better BOM cost control, especially for OEMs and contract manufacturers.

Quality Assurance and Compliance

XD0832CC is manufactured under strict quality management systems, adhering to RoHS and REACH compliance standards. The production process incorporates full traceability, electrical parameter screening, and long-term product reliability testing.

Advantage: Confidence in long-term deployment and compliance with global environmental regulations.

Conclusion

The XINLUDA XD0832CC is a fully compatible, reliable, and cost-effective alternative to the ADC0832CCN/NOPB, offering:

• Equivalent 8-bit ADC performance with dual input channels

• Lower static power consumption

• Full industrial temperature range support

• Drop-in DIP-8 compatibility

• Strong ESD protection and functional consistency

• Shorter lead time and reduced procurement cost

These strengths make XD0832CC an ideal choice for ADC integration in embedded applications, educational platforms, and cost-sensitive designs without compromising performance or quality.
