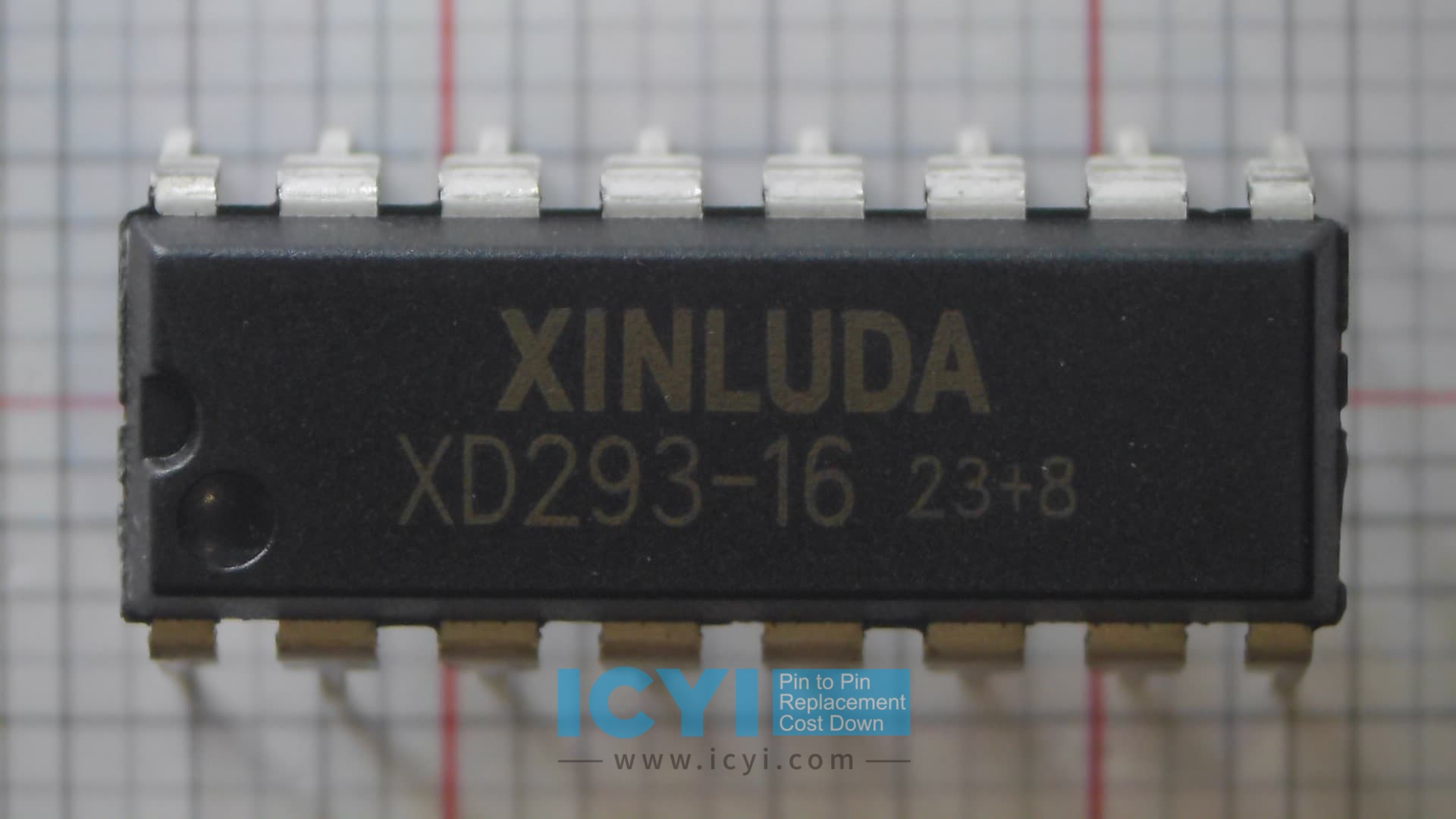

XD293-16 PUSH-PULL FOUR CHANNEL DRIVER WITH DIODES

Introduction

The XD293-16 from XINLUDA is a powerful and efficient quadruple high-current half-H driver, designed for a wide range of applications, including motor control, robotics, and automation. When compared to the L293NE and L293DNE from STMicroelectronics, the XD293-16 offers superior features in terms of efficiency, thermal management, and overall performance, making it the ideal choice for demanding applications. This comparison highlights the key advantages of the XD293-16, emphasizing why it stands out as the optimal solution in the market.

Power Efficiency and Heat Dissipation

One of the major advantages of the XD293-16 over the L293NE and L293DNE is its superior power efficiency and thermal management. While both L293NE and L293DNE are known for their ability to drive motors and other loads, they tend to generate higher levels of heat, particularly under heavy loads or during extended operations. The XD293-16 features advanced thermal management technology, which significantly reduces heat buildup, enhancing the longevity of the device and improving its overall efficiency. This feature is especially beneficial in applications where heat dissipation is a critical factor, such as in high-power motor control or industrial automation systems.

Higher Output Current Capability

The XD293-16 supports a higher output current capability compared to the L293NE and L293DNE. While both the L293NE and L293DNE can handle output currents up to 600mA continuously, the XD293-16 is capable of delivering 1.2A continuous output current, which is double the capacity of the L293NE and L293DNE. This higher current output allows the XD293-16 to power larger motors and heavier loads without compromising on performance, making it ideal for demanding applications in robotics, industrial automation, and vehicle control systems.

Efficiency in Motor Control

In motor control applications, the XD293-16 offers greater efficiency compared to the L293NE and L293DNE. The XD293-16 features lower saturation voltage, meaning that less power is wasted in the form of heat during operation. This leads to better overall motor control efficiency, which is essential for reducing energy consumption in battery-powered or low-energy systems. The L293NE and L293DNE, while functional for a wide range of applications, tend to experience higher voltage drops under load, leading to reduced motor efficiency. The XD293-16 provides enhanced motor control, delivering smoother performance and extended battery life in portable applications.

Protection Features

The XD293-16 also stands out for its enhanced protection features. Unlike the L293NE and L293DNE, the XD293-16 incorporates built-in overcurrent and thermal shutdown protection. These features ensure that the device can safely handle fluctuating load conditions without the risk of damage due to overheating or overcurrent situations. While the L293NE and L293DNE do provide some level of protection, they are not as comprehensive as the XD293-16 in terms of safeguarding against extreme operating conditions, making the XD293-16 a more reliable choice in critical applications.

Compact Design and Integration

The XD293-16 is designed with compactness in mind, offering a higher level of integration compared to the L293NE and L293DNE. The L293NE and L293DNE are dual H-bridge motor driver ICs that can require more board space for higher-power designs. The XD293-16, with its four H-bridge configuration, allows for more efficient space utilization, particularly in systems where space constraints are a concern. This compact design also simplifies integration into complex systems, making the XD293-16 a more versatile choice for compact electronics and applications where minimizing the form factor is essential.

Operating Voltage Range

The XD293-16 offers a wider operating voltage range than both the L293NE and L293DNE. The L293NE and L293DNE typically operate within the 4.5V to 36V range, while the XD293-16 supports a broader voltage range from 4.5V to 40V. This wider voltage range gives the XD293-16 greater flexibility in various applications, from low-voltage systems to higher voltage industrial motor control systems. The ability to operate at higher voltages provides more versatility for engineers to select the right power supply and optimize the system’s performance.

Cost-Effectiveness and Long-Term Value

While both the XD293-16 and L293NE/L293DNE are competitively priced, the XD293-16 offers greater long-term value due to its higher current handling capacity, better thermal performance, and additional protection features. These factors can significantly reduce the overall cost of the system, as fewer components are needed for heat dissipation and protection, and the risk of failure is minimized. The L293NE and L293DNE, although cost-effective, may require additional cooling solutions or external protection circuits in high-load or demanding applications, which can increase overall system costs. The XD293-16 simplifies design and integration while maintaining cost-effectiveness.

Conclusion

In conclusion, the XD293-16 from XINLUDA offers a number of advantages over the L293NE and L293DNE from STMicroelectronics. The XD293-16 delivers higher output current, better power efficiency, and enhanced thermal management, making it ideal for high-power motor control applications. Its improved protection features, wider voltage range, and more compact design also make it a superior choice for demanding systems in robotics, automation, and other industrial applications. When considering long-term value, reliability, and performance, the XD293-16 is the optimal solution, outpacing the L293NE and L293DNE in key areas that are critical for modern electronics and motor control systems.

The XD293-16 offers superior performance, efficiency, and reliability compared to the L293NE and L293DNE, providing the best solution for advanced motor control applications.
