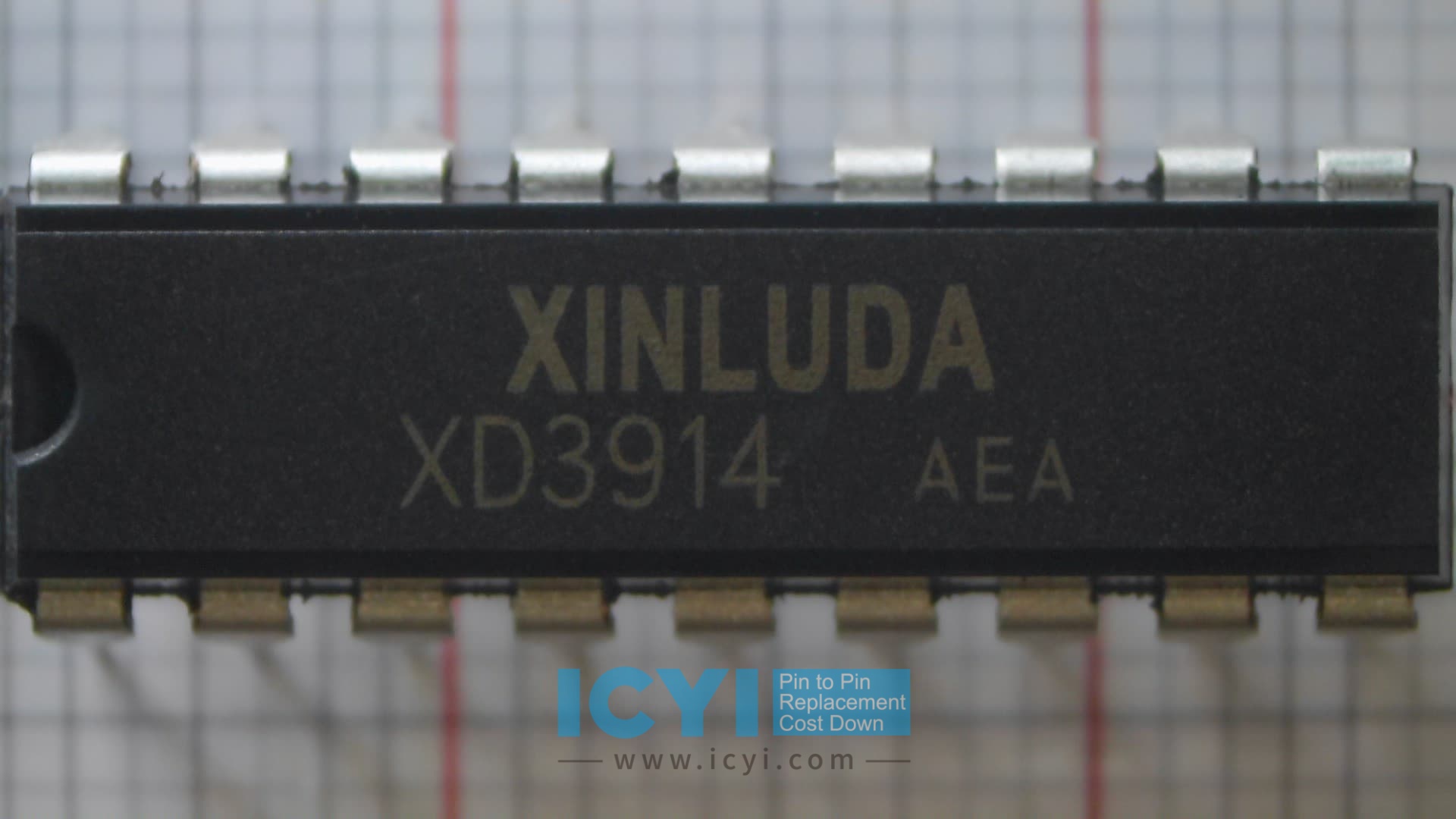

XD3914 Dot/Bar Display Driver

Introduction

The XD3914 from XINLUDA and the LM3914N-1/LM3914N-1/NOPB from Texas Instruments (TI) are integrated circuits designed for LED bar and LED graph display applications. Both chips are used to drive LEDs in various visual indicator applications, such as signal strength meters, volume indicators, and other display systems. While both products serve the same primary function, the XD3914 offers several significant advantages in terms of performance, efficiency, and design flexibility. In this comparison, we will highlight how the XD3914 outperforms the LM3914N-1 in several critical areas.

Power Efficiency and Supply Voltage

The XD3914 is designed to operate with a wider supply voltage range of 3V to 40V, providing greater flexibility in power supply design, especially for battery-powered and low-power applications. In contrast, the LM3914N-1/LM3914N-1/NOPB operates with a narrower supply voltage range of 4V to 40V, which may limit its application in designs that require a lower voltage supply. The XD3914’s ability to function with lower voltages ensures that it can be used in energy-efficient designs, reducing the overall power consumption, particularly in battery-operated systems.

Output Drive Capability and Efficiency

The XD3914 provides superior output drive capability with its internal constant current regulation for driving LEDs, allowing for more consistent brightness levels across the LED bar or graph. Additionally, the XD3914 can drive a larger number of LEDs compared to the LM3914N-1 while maintaining a lower current draw. This makes the XD3914 particularly advantageous in applications that require a large number of LEDs to be driven without significant power loss or thermal issues. The LM3914N-1, although efficient, may not be as effective in large-scale LED display systems due to its lower output current drive capabilities, especially when multiple LEDs need to be illuminated simultaneously.

Enhanced Display Control and Versatility

The XD3914 offers improved control over the LED display behavior by integrating features such as adjustable reference voltage and LED display intensity control. These built-in adjustments provide designers with more flexibility in fine-tuning the visual output without needing external components. The LM3914N-1, in comparison, lacks some of these flexible display control options and may require external circuitry to achieve the same level of display customization. This additional flexibility and ease of integration in the XD3914 make it an ideal choice for applications where precise control over the LED intensity and brightness is critical.

Integrated Features for Simplified Design

The XD3914 is designed with enhanced integration, including features like internal voltage reference and current regulation, which reduce the need for external components. This reduces design complexity and component count, saving both cost and board space. In contrast, the LM3914N-1 often requires external components such as resistors and capacitors to achieve optimal performance, leading to additional design steps and potentially increased cost. The XD3914’s all-in-one solution simplifies the design process, making it easier for engineers to integrate the chip into their systems without the need for additional parts.

Thermal Performance and Stability

Thermal management is a critical consideration in high-performance display applications. The XD3914 boasts superior thermal performance with built-in thermal shutdown protection and better heat dissipation characteristics, allowing it to operate reliably under higher loads and temperatures. This makes the XD3914 more suitable for industrial and high-ambient temperature environments. On the other hand, the LM3914N-1 may require additional heat management solutions when used in high-power or high-current applications, as its thermal stability is more limited under demanding conditions.

Output Modes and Display Configuration

The XD3914 offers both LED bar graph and LED analog voltage display modes, providing a versatile solution for a variety of display applications. It supports both standard bar mode and dot mode, making it suitable for different types of visual indicators. In contrast, the LM3914N-1 primarily supports a single LED bar display mode and may require external configuration for certain types of displays, limiting its application versatility. The XD3914’s ability to adapt to various display modes without additional configuration makes it an easier and more flexible choice for designers.

Supply Current and Quiescent Power Consumption

The XD3914 features a lower quiescent current and reduced supply current during operation, which improves overall energy efficiency, especially in battery-operated devices. This makes it an ideal choice for portable applications where power conservation is important. The LM3914N-1, while efficient, typically draws higher supply current, particularly in low-voltage or low-power conditions. The lower quiescent current of the XD3914 contributes to longer battery life and less heat generation in power-sensitive applications.

Cost-Effectiveness and Integration

The XD3914 offers better overall cost-effectiveness by reducing the number of external components required for system operation, thereby lowering the overall bill of materials (BoM). The LM3914N-1, although cost-effective in its own right, often requires additional external components to optimize performance, which increases the overall cost of the end product. The XD3914’s higher level of integration and its ability to meet a wider range of application needs without additional components make it a more economical solution for modern LED display designs.

Conclusion

While the LM3914N-1 from Texas Instruments remains a solid and reliable choice for many LED display applications, the XD3914 from XINLUDA offers several notable advantages, including greater flexibility in voltage range, improved output drive capabilities, better thermal performance, and enhanced integration. The XD3914's ability to drive more LEDs with lower power consumption, along with its built-in features like adjustable intensity control and internal voltage reference, make it the superior choice for high-performance and energy-efficient LED display systems. Designers looking for a more versatile, cost-effective, and high-performing solution should consider the XD3914 as the preferred option over the LM3914N-1.

This comparison highlights the key advantages of the XD3914 and why it offers a superior solution in LED display applications, offering more flexibility, better performance, and lower design complexity than the LM3914N-1 from Texas Instruments.
