AT8833CQ Dual-channel H-bridge motor drive chip

Motor Control Performance

• AT8833CQ: The AT8833CQ is a full-bridge motor driver capable of driving DC motors with a voltage range of 2.5V to 10.8V and a maximum current of 1.5A per channel. It utilizes advanced PWM (Pulse Width Modulation) control to ensure smooth and efficient motor control. The AT8833CQ offers precise speed control and direction control, making it suitable for a wide array of applications in robotics, home appliances, and automotive systems.

• DRV8833RTYR: The DRV8833RTYR is also a dual H-Bridge motor driver designed to drive DC motors with a similar voltage range of 2.5V to 10.8V and a maximum current of 1.5A per channel. While it provides basic motor control capabilities, it lacks some of the advanced features present in the AT8833CQ, such as enhanced current sensing and adaptive control. The AT8833CQ offers better motor performance, particularly for systems requiring precise control and higher efficiency.

Efficiency and Power Consumption

• AT8833CQ: The AT8833CQ is designed for high efficiency, incorporating low R_DS(on) MOSFETs that reduce conduction losses and improve overall system efficiency. The AT8833CQ also features adaptive PWM control, which helps optimize power consumption based on load and motor speed, thereby improving overall energy efficiency. This makes the AT8833CQ ideal for battery-operated applications, where longer battery life is a key consideration.

• DRV8833RTYR: While the DRV8833RTYR also boasts low R_DS(on) for efficient operation, it lacks the adaptive control mechanism of the AT8833CQ. As a result, the DRV8833RTYR may not achieve the same level of energy efficiency in variable load conditions. In applications that require extended battery life or low power consumption, the AT8833CQ provides superior performance, offering lower power dissipation during idle and load conditions.

Integration and External Components

• AT8833CQ: The AT8833CQ is a highly integrated solution that combines dual H-Bridge drivers with current sensing and thermal protection in a single package. This integration reduces the need for additional external components, such as external resistors or capacitors for current sensing, resulting in a simplified design and lower overall BOM (Bill of Materials). The AT8833CQ’s integration allows engineers to create more compact and cost-effective motor control systems.

• DRV8833RTYR: The DRV8833RTYR provides basic integration with dual H-Bridge drivers but may require additional external components, such as current sensing resistors or capacitors, to achieve optimal motor performance. While the DRV8833RTYR is a reliable choice for simpler designs, the AT8833CQ offers a more complete and compact solution for engineers looking to minimize external components and simplify the design process.

Protection Features

• AT8833CQ: The AT8833CQ incorporates a range of advanced protection features to safeguard the system and ensure reliable operation in harsh conditions. These include overcurrent protection, thermal shutdown, under-voltage lockout, and over-voltage protection. These features not only protect the motor driver but also extend the overall system lifespan by preventing damage due to electrical or thermal stress. The AT8833CQ’s built-in overcurrent protection ensures that the system operates within safe parameters, even under load surges or power spikes.

• DRV8833RTYR: The DRV8833RTYR includes basic thermal shutdown and overcurrent protection. However, it does not offer under-voltage lockout or over-voltage protection, which makes the AT8833CQ a more robust option for applications with fluctuating power sources or environments prone to electrical surges. The AT8833CQ's additional protection mechanisms make it more suitable for high-reliability applications where protection is crucial.

Thermal Management

• AT8833CQ: The AT8833CQ is designed with efficient thermal management in mind. It features a low thermal resistance package that ensures effective heat dissipation during operation. This allows the AT8833CQ to handle higher currents without excessive heat buildup, ensuring more stable performance and longer device lifespan. The AT8833CQ is ideal for applications requiring continuous motor operation, such as in industrial automation or home appliances, where heat management is critical.

• DRV8833RTYR: While the DRV8833RTYR has thermal protection, its thermal performance may not be as optimized as the AT8833CQ. In applications that require extended motor use or higher current drives, the DRV8833RTYR may require additional cooling solutions, such as heat sinks, to manage heat dissipation effectively. In comparison, the AT8833CQ’s enhanced thermal design allows for more flexible and reliable operation in demanding applications.

Size and Packaging

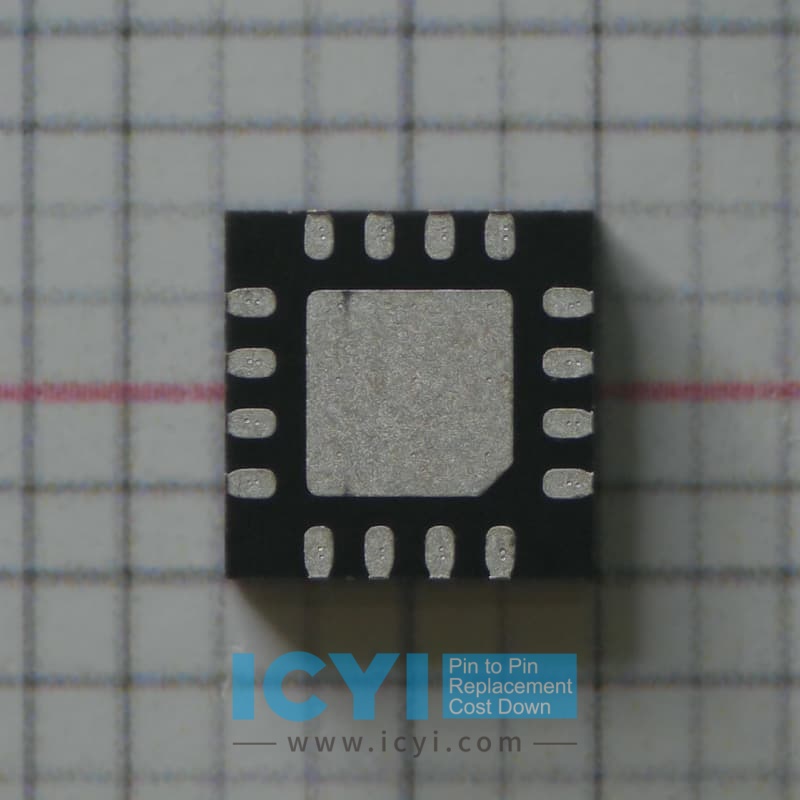

• AT8833CQ: The AT8833CQ is available in a compact QFN package, which allows for a small footprint while providing excellent thermal performance and high current capability. This compact packaging makes the AT8833CQ ideal for space-constrained designs such as portable devices or wearable electronics, where minimizing the size of the overall system is essential.

• DRV8833RTYR: The DRV8833RTYR is available in a similar QFN package but is slightly larger due to the need for additional external components in some designs. While it is still a relatively small package, the AT8833CQ offers slightly better packaging optimization for highly space-sensitive applications, without compromising performance or reliability.

Cost-Effectiveness

• AT8833CQ: The AT8833CQ offers a highly cost-effective solution, thanks to its high integration, efficient thermal management, and advanced protection features. The reduced external component requirement and simplified design process contribute to lower overall system cost. This makes the AT8833CQ a competitive option in cost-sensitive applications, offering excellent value for money.

• DRV8833RTYR: While the DRV8833RTYR is competitively priced, its need for additional external components such as current sensing resistors can increase the total system cost. In high-volume applications where cost efficiency is a priority, the AT8833CQ's higher integration provides a more affordable solution without sacrificing performance.

Key Advantages of AT8833CQ

1. Higher Integration: The AT8833CQ integrates current sensing, thermal protection, and motor control functions, reducing the need for external components and simplifying system design.

2. Superior Efficiency: The AT8833CQ delivers higher energy efficiency, thanks to its low R_DS(on) and adaptive PWM control, which helps in reducing power dissipation and extending battery life.

3. Advanced Protection Features: The AT8833CQ includes over-voltage protection, under-voltage lockout, and overcurrent protection, providing a more comprehensive protection mechanism than the DRV8833RTYR.

4. Optimized Thermal Management: With a low thermal resistance package and advanced thermal protection, the AT8833CQ operates efficiently even in high-current applications, requiring less external cooling.

5. Cost-Effective: The AT8833CQ offers a more cost-effective solution with its high integration, reduced BOM, and low power consumption, making it suitable for a wide range of applications, especially in high-volume production.

Conclusion

The AT8833CQ offers superior performance, integration, and protection features compared to the DRV8833RTYR. With higher integration, better efficiency, and more advanced protection mechanisms, the AT8833CQ provides a more reliable, cost-effective solution for motor control applications. Its enhanced thermal performance and compact packaging make it particularly well-suited for space-constrained and high-performance systems. While the DRV8833RTYR is a solid choice for basic motor control needs, the AT8833CQ provides additional advantages in terms of efficiency, integration, and protection, making it the optimal choice for advanced motor control designs.
