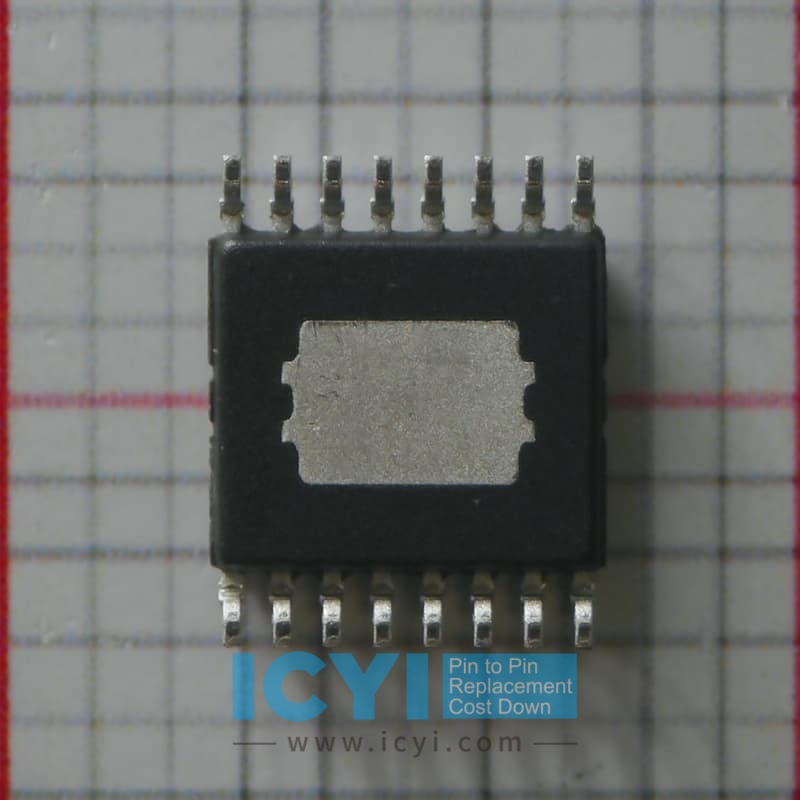

AT8833CT Dual-channel H-bridge motor drive chip

AT8833CT is a Replacement parts of

DRV8833RTYR


AT8833CT has good quality and a cheaper price, which can effectively help you reduce costs and make your products more competitive. In addition, we have sufficient supply and stable price of this parts, which can greatly help you to avoid problems such as price increases and parts shortages of similar products from other brands.
  • Mfr.Part No. :

    AT8833CT
  • Manufacturer :

    ZHONGKE MICRO
  • Description :

    Dual-channel H-bridge motor drive chip
  • Packaging :

    Reel
  • Package :

    HTSSOP-16
  • Stock :

    in stock
  • Price :

    $0.15-$0.30



AT8833CT



Price: $0.15-$0.30 $0.9-$1.1
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
AT8833CT
DRV8833RTYR





Motor Control Performance

  • AT8833CT: The AT8833CT is a dual H-Bridge motor driver designed for precision motor control. It supports a voltage range of 2.5V to 10.8V and provides a peak output current of up to 2A per channel, allowing it to drive various types of motors effectively. The driver also features advanced PWM control, which enables smooth motor speed regulation, precise direction control, and braking capability. With its flexible motor control options, the AT8833CT ensures reliable and consistent performance in demanding applications.

  • DRV8833PWPR: The DRV8833PWPR is a similar dual H-Bridge motor driver with a voltage range of 2.5V to 10.8V and a maximum current rating of 1.5A per channel. While it provides basic motor control functionality, the AT8833CT offers higher current capacity, enabling it to handle larger motors or more demanding operational conditions. The AT8833CT also includes advanced control features like soft switching and dynamic braking, which are not available in the DRV8833PWPR, giving it a distinct edge in terms of motor control flexibility and precision.


Efficiency and Power Consumption

  • AT8833CT: The AT8833CT features low R_DS(on) MOSFETs, ensuring minimal conduction losses and improved overall system efficiency. This results in a reduced power dissipation during operation, which is critical for battery-powered applications or systems where energy efficiency is a priority. The AT8833CT also employs adaptive PWM control, which adjusts the duty cycle to optimize the motor's energy consumption based on load, thus improving overall power efficiency.

  • DRV8833PWPR: The DRV8833PWPR also utilizes low R_DS(on) MOSFETs for power efficiency; however, it does not incorporate adaptive PWM control. While it still provides a reasonable level of efficiency, it may not achieve the same energy savings under varying load conditions as the AT8833CT. The AT8833CT's ability to adjust to different motor loads makes it a better choice for applications that require extended battery life or lower power consumption.


Integration and External Components

  • AT8833CT: The AT8833CT integrates current sensing, thermal protection, overvoltage protection, and under-voltage lockout features in a compact package. This integration reduces the need for additional external components, such as external resistors or capacitors, resulting in a simplified design and a lower overall BOM (Bill of Materials). By providing greater system integration, the AT8833CT helps reduce system complexity, shortens design cycles, and lowers manufacturing costs.

  • DRV8833PWPR: The DRV8833PWPR includes basic motor driver functionality but requires additional external components to optimize motor performance. For example, current sensing resistors or filter capacitors may be necessary for accurate control and stability. While the DRV8833PWPR offers a reliable motor control solution, the AT8833CT's higher integration makes it more suitable for cost-sensitive applications that require fewer external components, resulting in a more compact and economical solution.


Protection Features

  • AT8833CT: The AT8833CT comes with comprehensive built-in protection features to ensure safe and reliable operation. These include overcurrent protection, thermal shutdown, under-voltage lockout, and over-voltage protection. These features provide enhanced system reliability by preventing damage from electrical faults such as overvoltage, undervoltage, and overcurrent conditions. Additionally, the AT8833CT includes a soft-start mechanism that reduces inrush current during startup, further protecting the system from damage.

  • DRV8833PWPR: The DRV8833PWPR also includes thermal shutdown and overcurrent protection. However, it lacks under-voltage lockout and over-voltage protection, which are critical in preventing motor driver failure in unstable power environments. The AT8833CT offers a more robust protection suite, making it the superior choice for applications where the risk of power fluctuations or overload conditions is high.


Thermal Management

  • AT8833CT: The AT8833CT features efficient thermal management, incorporating a low thermal resistance package for effective heat dissipation. This is especially important for applications requiring continuous motor operation under high loads. The AT8833CT is capable of handling higher currents without excessive temperature rise, allowing for more reliable and stable operation in challenging thermal conditions.

  • DRV8833PWPR: While the DRV8833PWPR offers some thermal protection, it may not handle the same high current conditions as efficiently as the AT8833CT. In high-load applications, the DRV8833PWPR may require additional cooling solutions, such as heat sinks or external fans, to prevent thermal shutdown. The AT8833CT’s superior thermal management ensures it can operate effectively with lower thermal stress, reducing the need for additional cooling measures.


Size and Packaging

  • AT8833CT: The AT8833CT is available in a compact QFN package, which offers a small footprint while maintaining excellent thermal performance and current capacity. This compact size makes the AT8833CT ideal for space-constrained applications, where minimizing the size of the motor driver is essential, such as in portable electronics or automotive systems.

  • DRV8833PWPR: The DRV8833PWPR is also available in a QFN package, but its design may require more external components to achieve optimal motor performance, leading to a larger overall solution. The AT8833CT's more efficient packaging and higher integration allow it to offer better space utilization for compact applications.


Cost-Effectiveness

  • AT8833CT: The AT8833CT offers a cost-effective solution due to its higher integration, which minimizes the need for external components. This not only reduces the Bill of Materials (BOM) but also simplifies the design process, resulting in lower manufacturing costs. The AT8833CT delivers exceptional value for money while providing superior performance in terms of efficiency, protection, and integration.

  • DRV8833PWPR: The DRV8833PWPR is competitively priced but may require additional components to optimize its performance. These added costs for external components can increase the overall system cost. The AT8833CT provides a more affordable and comprehensive solution by reducing the need for additional parts and minimizing system complexity.


Key Advantages of AT8833CT

  1. Higher Current Handling: The AT8833CT supports up to 2A per channel, making it more suitable for demanding motor control applications compared to the DRV8833PWPR's 1.5A per channel.

  2. Advanced Integration: The AT8833CT integrates current sensing, over-voltage protection, under-voltage lockout, and thermal protection in a single package, reducing the need for external components and simplifying design.

  3. Superior Protection: The AT8833CT offers comprehensive protection mechanisms such as overcurrent, thermal shutdown, and soft-start, ensuring reliable operation in challenging conditions.

  4. Enhanced Thermal Management: With a low thermal resistance design, the AT8833CT can handle higher currents and greater power dissipation without compromising performance, unlike the DRV8833PWPR, which may require additional cooling.

  5. Cost-Effective: The AT8833CT's high level of integration and reduced external component requirements result in a lower overall system cost, making it an excellent value proposition for manufacturers.


Conclusion

The AT8833CT provides a more robust, efficient, and cost-effective solution than the DRV8833PWPR for motor control applications. Its higher current handling, advanced protection features, superior thermal management, and better system integration make it the optimal choice for applications requiring reliable and efficient motor control. With its competitive pricing and compact design, the AT8833CT is well-suited for high-performance, space-constrained applications, offering clear advantages over the competition.
