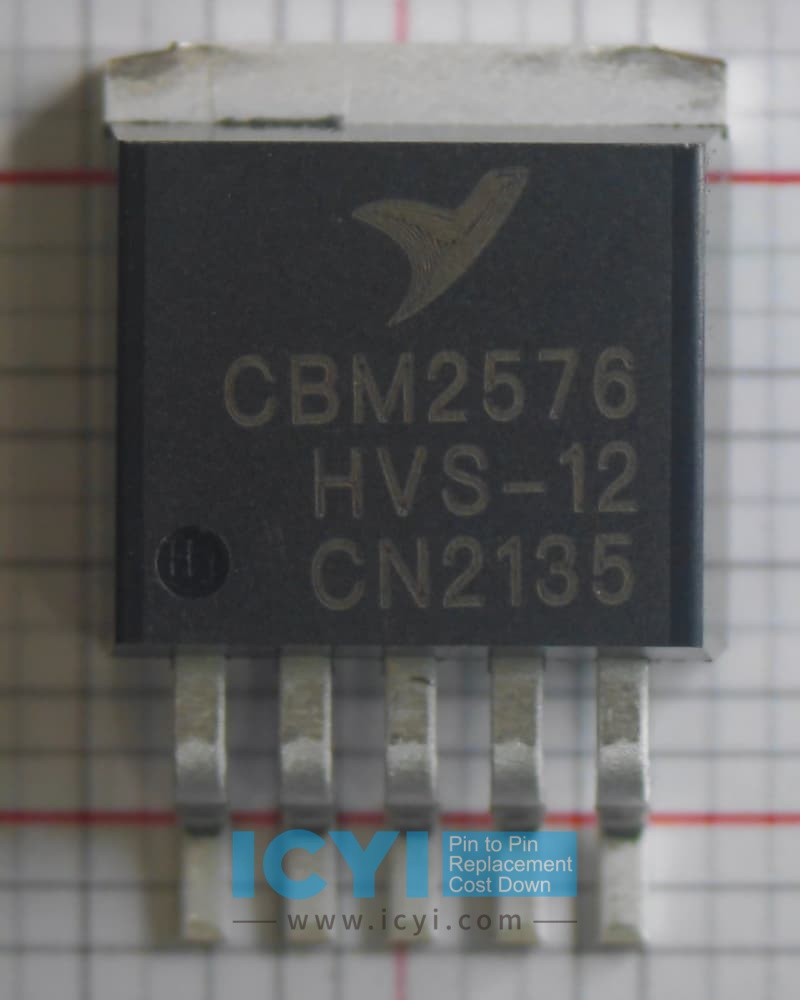

CBM2576HVS-12 monolithic integrated regulator with step-down switching

Overview of CBM2576HVS-12 and LM2576HVS-12

The CBM2576HVS-12 from Corebai is a high-performance buck regulator designed to deliver 12V output from high-voltage input sources. This device is ideal for industrial, automotive, and telecom applications where reliable, high-efficiency power conversion is critical. The CBM2576HVS-12 offers a wide input voltage range and provides a highly stable output voltage, ensuring robust performance in high-load and high-voltage environments.

The LM2576HVS-12 from National Semiconductor is another buck converter that also offers a 12V output but with certain trade-offs in terms of efficiency and flexibility. While it is widely used in general-purpose power supplies, the CBM2576HVS-12 brings significant improvements in efficiency, thermal management, and reliability.

Efficiency and Power Performance

1. Higher Efficiency for Better Performance:

   • The CBM2576HVS-12 delivers up to 95% efficiency in specific configurations, making it an ideal choice for high-power applications that require minimal heat dissipation and superior power conversion efficiency. Its advanced control circuitry minimizes power loss, ensuring that more energy is effectively transferred to the load.

   • In comparison, the LM2576HVS-12 offers efficiency in the range of 85-90%, which, while still acceptable for many designs, results in higher energy loss and heat generation. For applications where thermal management is a concern, the CBM2576HVS-12’s higher efficiency offers a distinct advantage.

Input Voltage Range and Flexibility

2. Wider Input Voltage Range for Flexibility:

   • The CBM2576HVS-12 provides an extended input voltage range of 40V to 100V, making it highly suitable for applications in industrial and automotive systems that experience significant voltage fluctuations or require operation under high-voltage conditions. This flexibility allows the chip to handle a wider variety of power sources, making it more adaptable to demanding applications.

   • On the other hand, the LM2576HVS-12 supports an input voltage range of 40V to 60V, which limits its versatility in systems that require operation with higher input voltages. The CBM2576HVS-12's broader input range enhances its usability in more diverse environments and applications.

Thermal Management and Heat Dissipation

3. Superior Thermal Performance:

   • The CBM2576HVS-12 excels in thermal management, thanks to its high efficiency and low power loss. This enables the chip to maintain lower operating temperatures, even under heavy load conditions, making it suitable for high-temperature environments where heat dissipation is a key concern.

   • The LM2576HVS-12, although designed for efficient power conversion, generates more heat under high-load conditions due to its relatively lower efficiency. For applications in which thermal stability is critical, such as industrial control systems or telecom equipment, the CBM2576HVS-12 provides a more reliable solution with better heat dissipation.

Output Voltage Regulation and Load Performance

4. Improved Output Voltage Stability:

   • The CBM2576HVS-12 offers superior output voltage regulation, ensuring stable voltage even with dynamic load variations. This is especially important in applications where voltage fluctuations can affect the performance of sensitive electronics, such as in medical equipment or communication systems. The CBM2576HVS-12 maintains a low output ripple, making it ideal for high-precision power supplies.

   • While the LM2576HVS-12 performs adequately in terms of output regulation, it may experience higher output ripple and less precise voltage control under dynamic load conditions. This could be a concern in applications requiring strict voltage stability.

Integration and Component Count

5. Simpler Design with Fewer Components:

   • The CBM2576HVS-12 is designed to reduce component count by integrating many key features like internal feedback compensation and soft-start functionality, which simplifies the design process. This allows for lower system cost and easier integration into space-constrained or cost-sensitive designs.

   • The LM2576HVS-12, while a reliable device, often requires additional external components such as compensation networks to optimize performance. This increases the overall design complexity and the bill of materials (BOM).

Protection Features and Reliability

6. Robust Protection and Enhanced Reliability:

   • The CBM2576HVS-12 is equipped with comprehensive protection features such as over-current protection (OCP), thermal shutdown, and over-voltage protection (OVP), ensuring the device operates safely even in extreme conditions. These features enhance the reliability of the CBM2576HVS-12 in mission-critical applications, ensuring long-term durability and minimal risk of failure.

   • The LM2576HVS-12 also includes basic over-current protection, but it lacks the additional integrated protection features that the CBM2576HVS-12 offers. The Corebai device provides enhanced system reliability, especially in harsh environments.

Cost-Effectiveness and Overall Value

7. Competitive Cost with Enhanced Performance:

   • Despite the higher performance in terms of efficiency, thermal management, and protection features, the CBM2576HVS-12 is priced competitively, offering a better performance-to-cost ratio compared to the LM2576HVS-12. For designers looking for a cost-effective solution without compromising on reliability, the CBM2576HVS-12 provides an attractive option.

   • The LM2576HVS-12 is generally priced similarly but may require additional components for optimal performance, increasing its total system cost in certain applications.

Conclusion

In summary, the CBM2576HVS-12 from Corebai provides several key advantages over the LM2576HVS-12 from National Semiconductor. The CBM2576HVS-12 excels in efficiency, thermal management, and input voltage range, making it ideal for high-power, high-voltage applications. Its superior output voltage regulation and robust protection features enhance its reliability, while the simpler design and lower component count make it a cost-effective solution for industrial, automotive, and telecom systems.

For design engineers seeking a high-performance and reliable power supply that delivers superior efficiency, better thermal performance, and lower system cost, the CBM2576HVS-12 is the clear choice over the LM2576HVS-12.
