GS321A-TR 1MHZ CMOS Rail-to-Rail IO Opamp with RF Filter

Overview of GS321A-TR and LMV321AIDBVR

The GS321A-TR is a low-power operational amplifier designed for use in a wide range of applications, including signal conditioning, audio systems, and sensor interfaces. It offers low offset voltage, low power consumption, and high precision, making it ideal for battery-powered applications and low-noise environments.

The LMV321AIDBVR is a similar low-power op-amp from Texas Instruments, designed for general-purpose applications where low power consumption and small package size are important. While both chips share similar functions, the GS321A-TR offers superior precision, power efficiency, and reliability in demanding applications.

Power Consumption and Efficiency

The GS321A-TR excels in low power consumption. It features a low quiescent current of just 30 µA (typical), which ensures minimal power draw, making it ideal for energy-sensitive applications such as battery-operated devices. This low power consumption contributes to the overall energy efficiency of systems using the GS321A-TR.

In comparison, the LMV321AIDBVR has a slightly higher quiescent current of 50 µA (typical), which, while still low, is not as optimized as the GS321A-TR. The GS321A-TR’s lower quiescent current gives it an edge in applications where energy efficiency is a top priority, especially in portable or battery-powered devices where power management is critical.

Precision and Offset Voltage

The GS321A-TR stands out with its extremely low input offset voltage of 50 µV (max), which ensures greater accuracy in signal amplification and minimizes error in precision measurement applications. This makes the GS321A-TR especially suitable for high-precision sensor interfaces and medical devices where maintaining signal integrity is critical.

The LMV321AIDBVR, while also featuring low offset voltage (typically 30 µV), does not match the GS321A-TR’s specification in terms of maximum tolerance. For designs requiring the highest level of precision and accuracy, the GS321A-TR provides a more reliable solution, reducing drift and offset errors that could otherwise compromise system performance.

Operating Voltage Range

The GS321A-TR offers an operating voltage range from 2.7V to 12V, allowing it to work effectively in both low-voltage and standard voltage systems. This flexibility makes the GS321A-TR highly adaptable across various applications, from low-voltage battery-powered devices to more standard industrial systems.

The LMV321AIDBVR, by comparison, operates in a slightly narrower voltage range of 2.7V to 5.5V, limiting its usability in higher voltage systems. The GS321A-TR’s broader voltage range enables more design flexibility, making it the preferred option for more varied application requirements.

Rail-to-Rail Output Capability

One of the standout features of the GS321A-TR is its rail-to-rail output capability, meaning it can output signals that are close to the supply rails, which is particularly useful for systems with low voltage or for applications that require maximum signal swing within a limited supply range.

While the LMV321AIDBVR also offers rail-to-rail output, the GS321A-TR provides better output drive capabilities, making it more capable in systems where maintaining signal integrity across a wide voltage range is essential. This is crucial in applications like audio processing, sensor interfacing, and communication systems.

Package and Integration

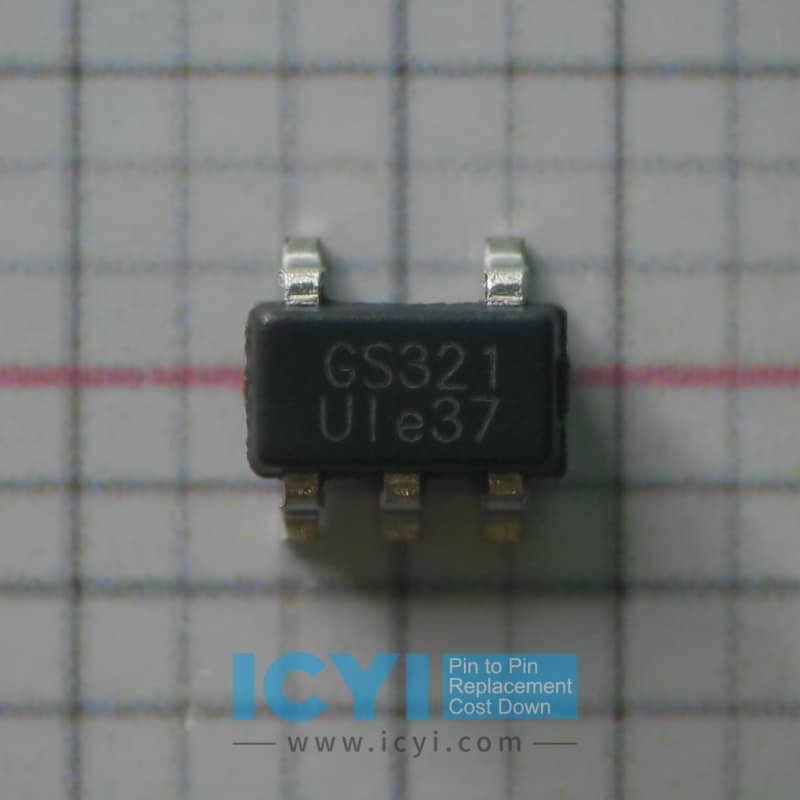

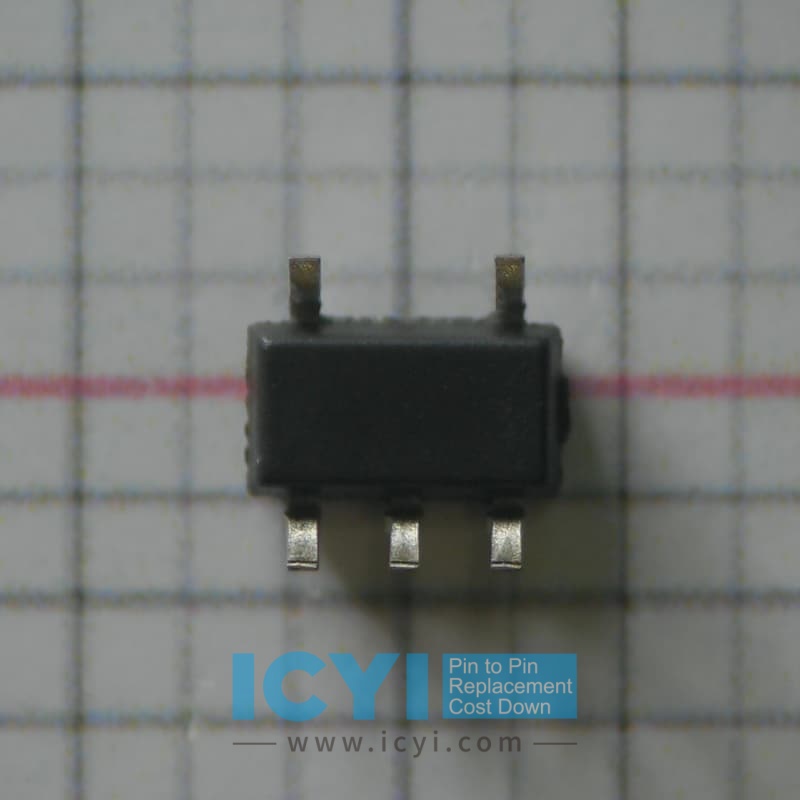

The GS321A-TR is available in a compact SOT-23-5 package, providing space efficiency for compact designs and high-density boards. This small form factor is ideal for applications where board space is limited, such as wearable devices, portable electronics, and sensor nodes.

The LMV321AIDBVR also comes in a similar small package but with a slightly larger footprint. The GS321A-TR’s compact design offers more flexibility in space-constrained applications, allowing engineers to maximize the use of available PCB space.

Temperature Performance

The GS321A-TR operates over a wide temperature range from -40°C to +125°C, making it ideal for industrial, automotive, and harsh environmental applications. Its stability across this temperature range ensures reliable operation in extreme conditions, reducing the likelihood of failure in critical systems.

In contrast, the LMV321AIDBVR has an operating temperature range of -40°C to +85°C, which, while suitable for many applications, is narrower than the GS321A-TR. For designs requiring a wider operating temperature range, particularly in industrial and automotive environments, the GS321A-TR offers enhanced reliability and performance.

Cost-Effectiveness and Long-Term Value

While the GS321A-TR may have a slightly higher upfront cost compared to the LMV321AIDBVR, its superior power efficiency, precision, and temperature tolerance ensure long-term value. The GS321A-TR’s enhanced capabilities reduce the need for additional components or power management circuits, leading to cost savings in the long run.

The LMV321AIDBVR, being cost-effective for standard applications, might appeal to designs with less stringent performance requirements. However, for customers seeking a higher-performing, more versatile solution with longer operational life, the GS321A-TR offers better overall value, particularly in precision-critical and energy-sensitive applications.

Conclusion

The GS321A-TR outperforms the LMV321AIDBVR in several key areas, including power efficiency, precision, temperature range, and rail-to-rail output capability. These advantages make the GS321A-TR the better choice for high-precision, energy-sensitive applications in industrial, automotive, and consumer electronics sectors.

While the LMV321AIDBVR is a solid option for general-purpose applications, the GS321A-TR offers more advanced performance and greater versatility, making it the superior choice for demanding designs that require optimal power consumption, precision, and reliability.
