GS321-CR is a Replacement parts of
LMV321IDCKRG4
Mfr.Part No. :
GS321-CRManufacturer :
GainsilDescription :
1MHZ CMOS Rail-to-Rail IO Opamp with RF FilterPackaging :
ReelPackage :
SC-70-5Stock :
in stockPrice :
$0.12-$0.28
GS321-CR
Price: | $0.12-$0.28 | $0.3-$0.5 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
GS321-CR |
LMV321IDCKRG4
|
The GS321-CR is a low-power operational amplifier designed to offer excellent performance in precision applications. It features a low offset voltage, low power consumption, and a wide operating voltage range, making it an ideal choice for energy-efficient designs and demanding applications requiring high accuracy, such as audio equipment, medical devices, and industrial control systems.
The LMV321IDCKRG4 from Texas Instruments is also a low-power op-amp designed for general-purpose applications. While it offers decent performance in terms of power consumption and accuracy, the GS321-CR surpasses it in several key areas, particularly in precision, power efficiency, and temperature stability, making it the more suitable choice for high-performance designs.
The GS321-CR excels in power efficiency, with a quiescent current of just 30 µA (typical). This low quiescent current ensures minimal power draw, making it highly suitable for battery-operated devices and applications that require long operational lifetimes with minimal power usage.
In comparison, the LMV321IDCKRG4 has a higher quiescent current of 50 µA (typical), which, while still considered low, is not as optimized for ultra-low-power designs as the GS321-CR. The lower power consumption of the GS321-CR provides better energy savings, especially in energy-sensitive applications like wearables and remote sensors, extending battery life and reducing overall system power demand.
The GS321-CR offers an ultra-low input offset voltage of 50 µV (maximum), ensuring high precision and accuracy for applications that require exact signal amplification, such as sensor interfacing and medical monitoring systems. This low offset voltage reduces signal drift and improves system accuracy over time, making the GS321-CR a preferred choice for precision-critical designs.
The LMV321IDCKRG4, on the other hand, has a typical input offset voltage of 30 µV and a maximum offset voltage of 150 µV, which is relatively higher compared to the GS321-CR. While it still performs adequately for general-purpose applications, its higher offset voltage can lead to errors in more demanding applications, particularly those requiring highly accurate signal processing or sensor data.
The GS321-CR is capable of operating over a broad voltage range of 2.7V to 12V, which provides greater flexibility for various system designs. This makes the GS321-CR suitable for a wide variety of applications, including battery-operated devices, industrial control systems, and automotive electronics, where a broader operating voltage range is necessary for reliability and performance.
The LMV321IDCKRG4 operates within a narrower voltage range of 2.7V to 5.5V, limiting its suitability for higher-voltage systems. For designs that need to operate across a broader voltage range or in higher-voltage environments, the GS321-CR provides more versatility, enabling it to work seamlessly in both low-voltage and standard voltage systems.
The GS321-CR features rail-to-rail output, enabling it to drive signals that extend very close to the supply voltage rails. This is particularly important in systems with low supply voltages, as it maximizes the output signal swing and ensures efficient utilization of available voltage headroom.
The LMV321IDCKRG4 also supports rail-to-rail output; however, the GS321-CR has better output drive capabilities, allowing for a more consistent signal performance, even under varying load conditions. The GS321-CR’s superior drive capability makes it more suitable for applications where signal integrity and wide output swings are critical, such as in audio, sensor applications, and communications systems.
The GS321-CR operates over an extended temperature range of -40°C to +125°C, making it suitable for use in harsh environmental conditions and automotive applications. This broad temperature tolerance ensures that the GS321-CR performs reliably even in extreme temperatures, maintaining stability and performance without compromising on accuracy.
The LMV321IDCKRG4 has an operating temperature range of -40°C to +85°C, which, while suitable for most commercial applications, is narrower compared to the GS321-CR. For designs that require robust temperature stability, especially in industrial, automotive, or outdoor applications, the GS321-CR offers better reliability and long-term performance.

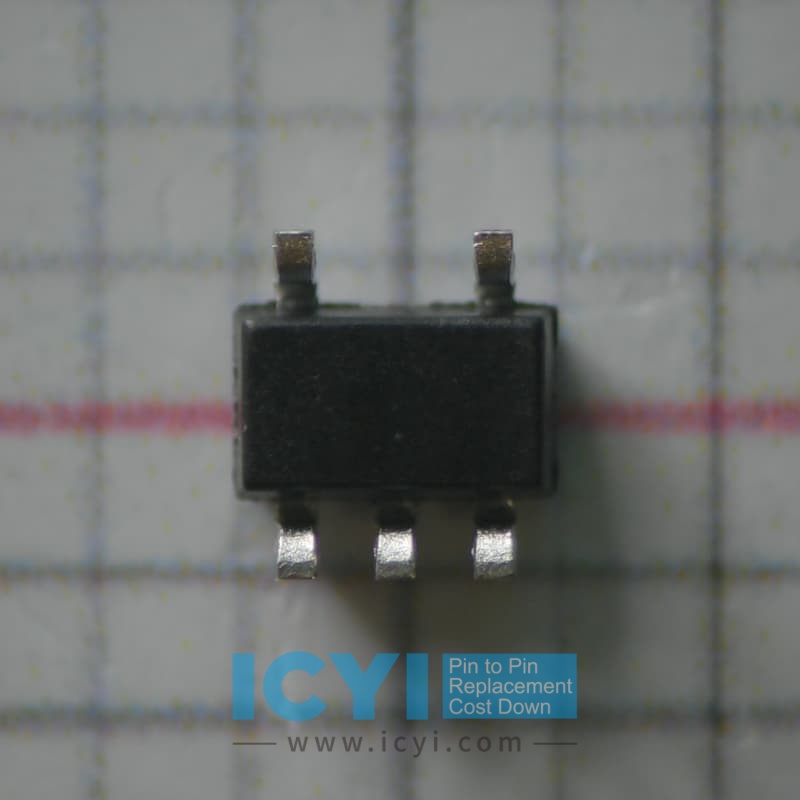

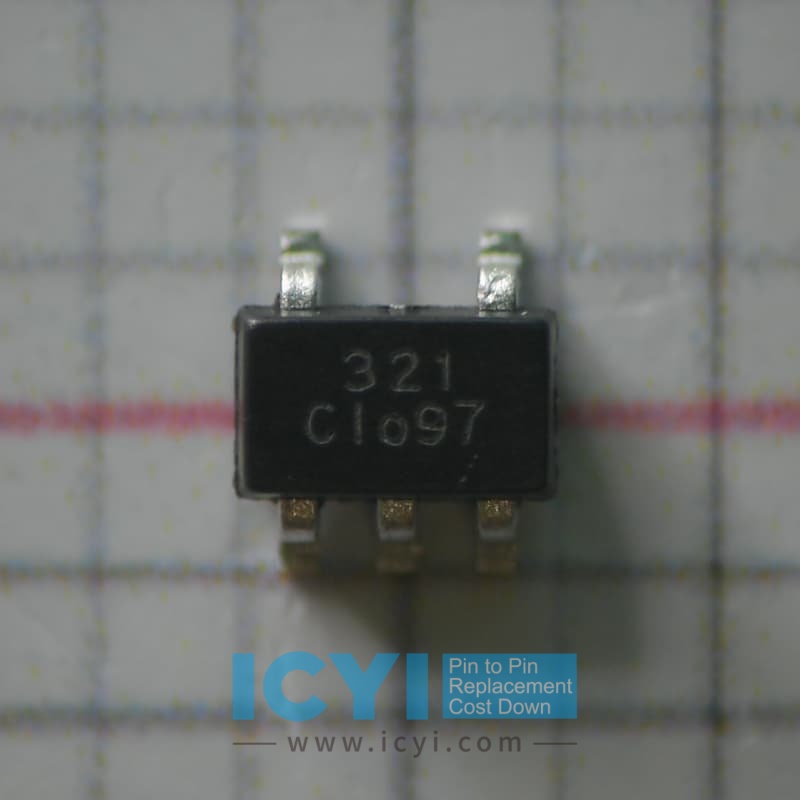

The GS321-CR comes in a compact SOT-23-5 package, making it highly suitable for space-constrained applications where PCB real estate is limited. Its small footprint allows for efficient use of available space in designs such as wearable devices, portable electronics, and sensor nodes.
The LMV321IDCKRG4 also comes in a small package, but the GS321-CR’s package offers a slightly more optimized footprint for applications requiring the smallest possible size. Its space-saving design provides more flexibility in compact designs, where reducing PCB area is a priority.
Although the GS321-CR may come at a slightly higher upfront cost than the LMV321IDCKRG4, its superior power efficiency, higher precision, and extended temperature range ensure that it provides better value over time. The GS321-CR’s enhanced performance reduces the need for additional components or recalibration, lowering overall system cost and improving reliability in demanding applications.
The LMV321IDCKRG4 is a cost-effective solution for standard, non-critical applications, but for designs requiring higher performance, precision, and robustness, the GS321-CR provides a more reliable and long-term solution.
The GS321-CR outperforms the LMV321IDCKRG4 in key areas such as precision, power efficiency, temperature range, and output drive capability. These advantages make the GS321-CR the superior choice for demanding applications that require high accuracy, energy efficiency, and long-term reliability.
While the LMV321IDCKRG4 is a solid choice for general-purpose use, the GS321-CR offers higher performance, greater versatility, and better overall value in applications where precision and power efficiency are critical. For applications in sensors, audio systems, medical devices, and industrial control, the GS321-CR is the optimal solution for designs that demand the highest standards of performance and reliability.
