GS358A-MR 1MHZ CMOS Rail-to-Rail IO Opamp with RF Filter

Overview of GS358A-MR and LMV358AIDGKR

The GS358A-MR is a low-power, dual operational amplifier designed for high-precision applications. It is ideal for signal conditioning, audio circuits, sensor interfaces, and battery-powered devices. The GS358A-MR excels in low offset voltage, low noise, and excellent power efficiency, ensuring accurate and reliable performance in various applications where precision is crucial.

In comparison, the LMV358AIDGKR from Texas Instruments is a dual operational amplifier with similar functionality but offers slightly higher power consumption and less precision, especially in low-voltage and battery-operated systems. While it is suitable for many general-purpose applications, the GS358A-MR stands out in terms of efficiency, noise reduction, and accuracy.

Power Efficiency and Consumption

One of the standout features of the GS358A-MR is its ultra-low supply current of 0.3 mA per channel (typical), making it exceptionally suitable for battery-powered applications. This low current draw ensures longer operational life for portable devices and sensor systems that require continuous operation with minimal power consumption.

On the other hand, the LMV358AIDGKR consumes 1.0 mA per channel (typical), which is higher than the GS358A-MR. In battery-operated designs, this increased power consumption may result in a shorter battery life, especially in long-term or remote sensing applications where low energy usage is essential.

Precision and Offset Voltage

The GS358A-MR offers a significantly lower input offset voltage of ±2 mV (max), which ensures highly accurate signal processing, particularly in sensor applications and low-voltage systems. This low offset voltage minimizes distortion, making the GS358A-MR ideal for high-precision measurements and signal conditioning.

In contrast, the LMV358AIDGKR has a higher offset voltage of ±5 mV (max), which can lead to minor inaccuracies in sensitive systems that require high precision. For applications where accuracy is a critical factor, such as medical devices or audio equipment, the GS358A-MR offers superior performance due to its lower offset voltage.

Noise Performance

The GS358A-MR is designed with low-noise performance in mind, featuring a low noise density of 3.5 nV/√Hz at 1 kHz. This makes it highly suitable for audio processing, precision instrumentation, and signal amplification, where low noise is crucial to prevent signal distortion.

The LMV358AIDGKR, although offering a respectable noise density of 4.5 nV/√Hz, is slightly less effective at reducing noise. In applications that require high signal fidelity and low interference, the GS358A-MR provides a clearer, more accurate signal with reduced distortion, making it a better choice for high-fidelity audio and sensor signal processing.

Operating Voltage and Range

The GS358A-MR operates with a wide supply voltage range from 2.5 V to 36 V (single supply) and ±1.25 V to ±18 V (dual supply), offering excellent flexibility for battery-powered devices and industrial systems. This flexibility allows the GS358A-MR to be integrated into a broad range of applications, from portable electronics to automotive systems, without compromising performance.

The LMV358AIDGKR operates within a supply voltage range of 2.7 V to 36 V (single supply) and ±1.35 V to ±18 V (dual supply), which is comparable but offers slightly narrower voltage tolerance compared to the GS358A-MR. This slight difference may not significantly impact most general applications, but in designs requiring a wider voltage range for enhanced flexibility, the GS358A-MR is a more versatile solution.

Temperature Range and Stability

The GS358A-MR offers an extended operating temperature range of -40°C to +125°C, making it ideal for use in harsh environments such as automotive electronics and industrial control systems. This wide temperature tolerance ensures stable performance in extreme conditions, without degradation in signal integrity.

The LMV358AIDGKR, while operating within a similar temperature range of -40°C to +125°C, may not offer the same long-term stability under high-thermal stress, especially in high-power applications. The GS358A-MR’s robust design makes it more reliable in temperature-sensitive systems where thermal stability is critical.

Package and Integration

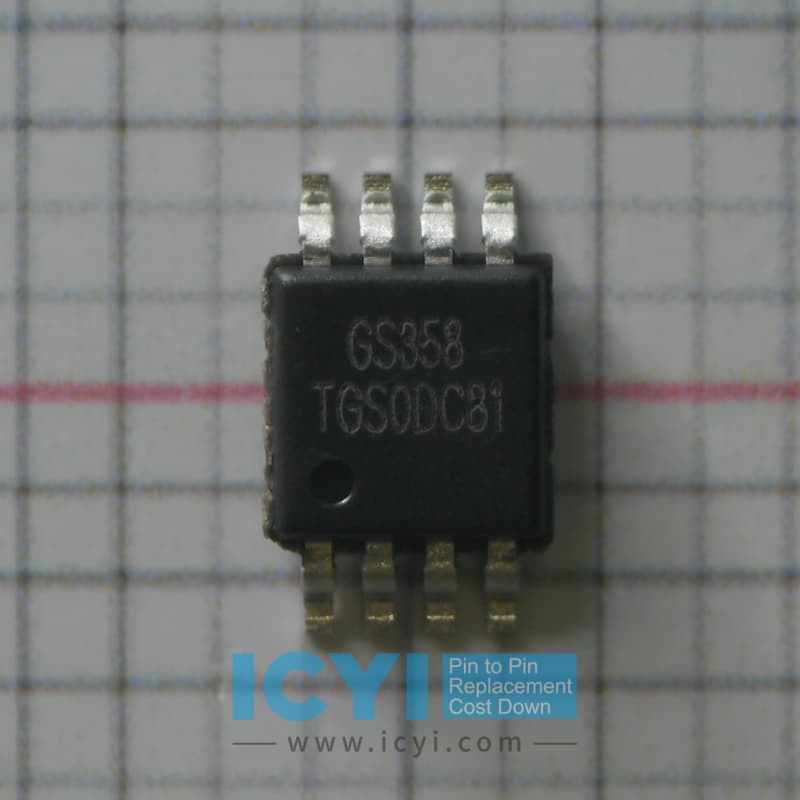

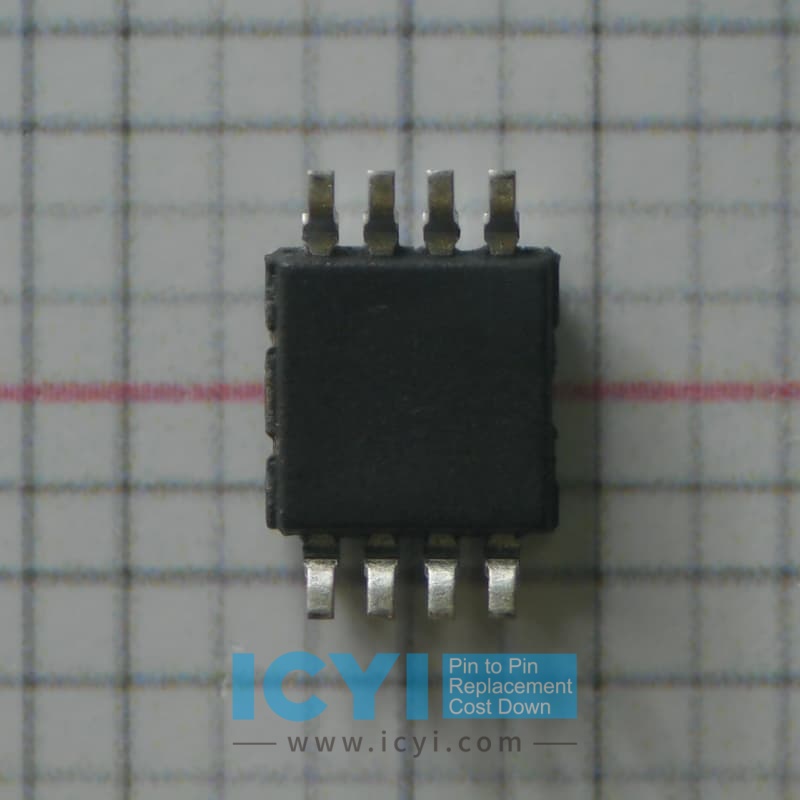

The GS358A-MR is available in the 8-SOIC package, offering a compact form factor for space-constrained designs. Its compact size and efficient thermal performance make it an excellent choice for applications where board space is at a premium, such as wearable devices and small sensor modules.

Similarly, the LMV358AIDGKR is available in the 8-SOIC package. While both products are similar in packaging, the GS358A-MR’s enhanced thermal management and low-profile design provide better integration in systems requiring high-density layouts and effective heat dissipation.

Long-Term Reliability and Value

The LMV358AIDGKR is a solid, general-purpose operational amplifier suitable for many standard applications. However, the GS358A-MR offers long-term reliability with low power consumption, superior precision, and noise performance, making it a better investment for mission-critical applications. For systems that demand high accuracy, efficiency, and long-term stability, the GS358A-MR provides more value over time by reducing the need for recalibration and maintenance.

While the LMV358AIDGKR may be more cost-effective in less demanding applications, the GS358A-MR’s higher performance and longer lifespan translate to lower operational costs and better reliability for high-performance systems.

Conclusion

The GS358A-MR outperforms the LMV358AIDGKR in key areas such as power efficiency, precision, noise performance, and temperature stability. These advantages make the GS358A-MR the preferred choice for high-accuracy and low-power applications, such as sensor systems, audio amplification, and battery-operated devices. While the LMV358AIDGKR is suitable for more general purposes, the GS358A-MR provides a clearer signal, longer battery life, and greater overall performance, making it the optimal solution for demanding applications that require precision and efficiency.
