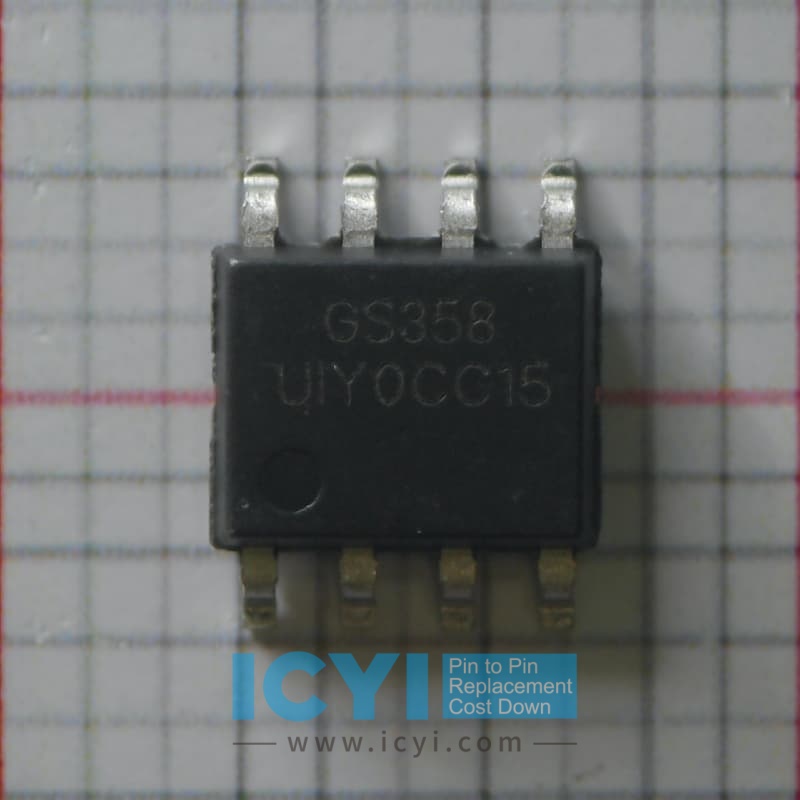

GS358A-SR 1MHZ CMOS Rail-to-Rail IO Opamp with RF Filter

Overview of GS358A-SR and LMV358AIDR

The GS358A-SR is a low-power, dual operational amplifier designed for high-precision applications in battery-powered systems, sensor interfaces, audio electronics, and signal conditioning. It is specifically engineered for low-offset voltage, low noise, and excellent power efficiency, ensuring optimal performance in applications where precision and minimal power consumption are critical.

In comparison, the LMV358AIDR from Texas Instruments is a dual operational amplifier that provides general-purpose functionality. While it is suitable for many standard applications, the GS358A-SR offers significant advantages in areas such as low power consumption, noise performance, and precision, making it the better choice for high-performance, low-voltage, and high-accuracy systems.

Power Consumption and Efficiency

One of the standout features of the GS358A-SR is its ultra-low supply current of 0.3 mA per channel (typical), which makes it ideal for battery-powered applications. This low current consumption translates to extended battery life and increased operational efficiency, particularly in portable devices, sensors, and remote monitoring systems.

In contrast, the LMV358AIDR draws a higher supply current of 1.0 mA per channel (typical), which, although still low, results in slightly higher power consumption compared to the GS358A-SR. For designs requiring maximum power efficiency, the GS358A-SR clearly outperforms the LMV358AIDR, ensuring longer operation without the need for frequent battery changes.

Input Offset Voltage and Precision

The GS358A-SR offers a significantly lower input offset voltage of ±2 mV (max), which ensures highly accurate signal processing in systems requiring precision. This low offset voltage minimizes errors, providing better signal fidelity, especially in low-voltage applications, such as medical equipment and sensor interfaces.

The LMV358AIDR, on the other hand, has a higher input offset voltage of ±5 mV (max), which may lead to slightly higher error margins in precision applications. For use cases where high accuracy is critical—such as precision measurement systems or high-fidelity audio circuits—the GS358A-SR provides superior performance, ensuring minimized distortion and more reliable results.

Noise Performance

The GS358A-SR is designed with low-noise characteristics, featuring a low noise density of 3.5 nV/√Hz at 1 kHz. This makes it highly effective in signal amplification and sensor signal conditioning, where low noise is crucial to prevent interference and signal distortion.

In comparison, the LMV358AIDR has a higher noise density of 4.5 nV/√Hz, making it somewhat less suitable for noise-sensitive applications such as audio systems and precision instrumentation. The GS358A-SR’s low noise density ensures that it delivers cleaner signals, with reduced background interference, which is especially beneficial in high-quality audio and sensor-based designs.

Supply Voltage Range and Flexibility

The GS358A-SR operates within a wide supply voltage range from 2.5 V to 36 V (single supply) and ±1.25 V to ±18 V (dual supply), offering excellent flexibility in battery-powered designs, portable systems, and industrial control circuits. This wide voltage range allows the GS358A-SR to be integrated into diverse applications with varying power requirements.

The LMV358AIDR, while offering a supply voltage range of 2.7 V to 36 V (single supply) and ±1.35 V to ±18 V (dual supply), has slightly narrower voltage tolerance compared to the GS358A-SR. This difference, though small, provides the GS358A-SR with greater operational flexibility, especially in designs where the supply voltage may fluctuate or where flexible power options are required.

Temperature Range and Stability

The GS358A-SR offers an extended operating temperature range of -40°C to +125°C, making it an excellent choice for use in harsh environments, such as automotive systems, industrial control units, and outdoor monitoring applications. Its stability across a wide temperature range ensures consistent performance in extreme conditions.

The LMV358AIDR, although also rated for a temperature range of -40°C to +125°C, may not offer the same level of long-term thermal stability as the GS358A-SR. This makes the GS358A-SR more reliable in temperature-sensitive applications, ensuring minimal signal drift and maintained accuracy under thermal stress.

Package Options and Integration

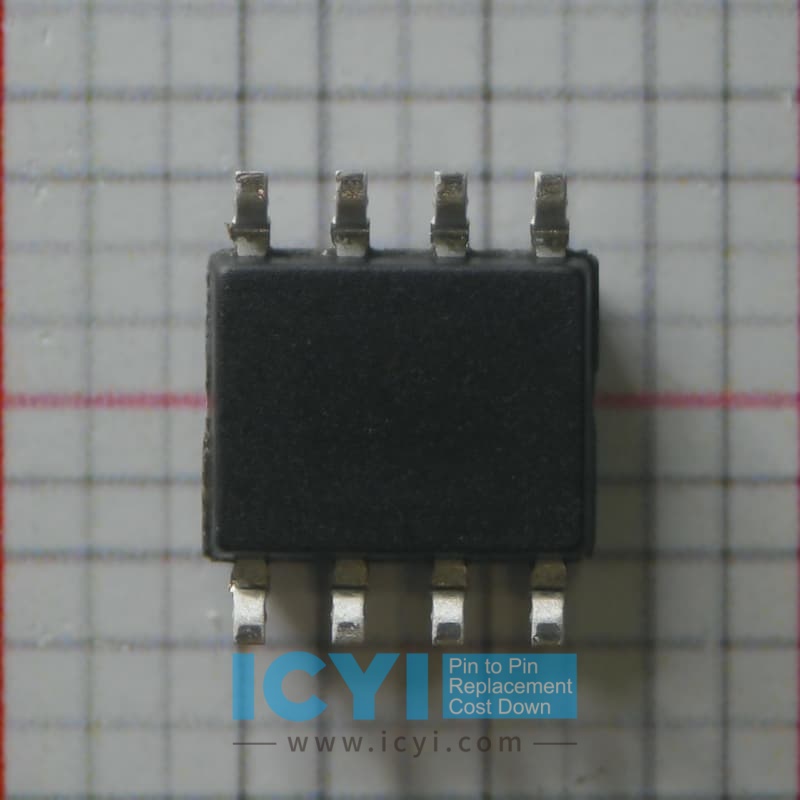

The GS358A-SR is available in the 8-SOIC package, which is compact and ideal for space-constrained applications. The small form factor and high thermal efficiency of the GS358A-SR make it well-suited for portable electronics, sensor nodes, and high-density circuit designs.

Similarly, the LMV358AIDR is offered in the 8-SOIC package, which provides a comparable form factor. However, the GS358A-SR’s superior thermal management and low power consumption make it the better option for integration in high-density, low-power designs where maintaining system efficiency is critical.

Cost-Effectiveness and Reliability

While the LMV358AIDR is generally considered a cost-effective solution for basic operational amplifier needs, the GS358A-SR offers greater long-term value due to its low power consumption, better noise performance, and superior precision. For applications that require high reliability over time, such as sensor-based systems or critical control applications, the GS358A-SR provides a higher return on investment by reducing the need for recalibration and maintenance.

Additionally, the GS358A-SR’s longer operational life in battery-powered systems reduces the frequency of battery replacements and maintenance costs, making it a more cost-effective solution for long-term deployment.

Conclusion

The GS358A-SR excels in power efficiency, precision, noise performance, and thermal stability, making it the superior choice over the LMV358AIDR for high-performance, low-power, and precision applications. Its low offset voltage, low noise density, and wide operating voltage range make it ideal for battery-operated devices, sensor systems, and audio amplification. The LMV358AIDR is a solid choice for more basic applications, but the GS358A-SR offers enhanced performance and long-term value for demanding designs requiring high accuracy, efficiency, and reliability.
