GS393-SR LOW POWER LOW OFFSET VOLTAGE QUAD COMPARATORS

Overview of GS393-SR and LM393DRG4

The GS393-SR is a dual comparator designed to offer low-power consumption and high-speed performance in a variety of industrial, automotive, and consumer applications. Known for its precision and reliability, the GS393-SR excels in voltage monitoring, signal conditioning, and threshold detection tasks. It is designed to operate efficiently in battery-operated systems while maintaining high-performance standards.

The LM393DRG4, a product of Texas Instruments, is also a dual comparator intended for general-purpose use. It features open-collector outputs, making it a versatile choice for a range of applications, but its performance and power efficiency may not match that of the GS393-SR in more demanding environments.

Power Consumption and Efficiency

One of the key advantages of the GS393-SR is its ultra-low supply current, with a typical consumption of 0.3 mA per comparator. This low power consumption makes it ideal for battery-operated devices and low-power systems where extended operational life is essential.

The LM393DRG4, while offering low power consumption with typical values around 0.8 mA per comparator, is still higher than the GS393-SR. This makes the GS393-SR the superior choice for energy-efficient applications, especially in portable electronics and remote sensing systems, where longer battery life and lower power dissipation are critical.

Input Voltage Range and Flexibility

The GS393-SR offers a wide input voltage range from 2 V to 36 V (single supply) and ±1 V to ±18 V (dual supply), allowing it to operate in diverse environments and power supply configurations. This flexibility is essential for designs where the power supply may vary or where flexibility in voltage options is required.

In contrast, the LM393DRG4 operates within a single supply range of 2 V to 36 V and a dual supply range of ±1.5 V to ±18 V. While the LM393DRG4 offers a similar voltage range, the GS393-SR's wider tolerance in dual supply configurations provides enhanced flexibility, especially for systems requiring higher voltage margins or varying power supply conditions.

Response Time and Speed

The GS393-SR is optimized for fast response times with a propagation delay of 80 ns (typical), ensuring that it can handle high-speed signal switching and rapid threshold detection in dynamic applications. This makes the GS393-SR a superior choice for automotive electronics, communications systems, and high-performance sensors where timing and speed are essential.

On the other hand, the LM393DRG4 has a typical propagation delay of 250 ns, which is significantly slower than the GS393-SR. This slower response time can limit its effectiveness in high-speed applications, where real-time processing and rapid switching are required. For systems needing fast and reliable signal monitoring, the GS393-SR provides a substantial advantage.

Input Offset Voltage and Accuracy

The GS393-SR boasts a low input offset voltage of ±1 mV (max), providing highly accurate switching thresholds. This ensures that the GS393-SR can deliver reliable performance even in precision-critical applications such as sensor interfacing and low-level signal processing, where minimal offset voltage is required for optimal operation.

In comparison, the LM393DRG4 has a higher input offset voltage of ±5 mV (max), which can result in greater offset error in precision applications. The GS393-SR’s lower offset voltage ensures better accuracy and more consistent performance in signal detection and threshold applications.

Temperature Range and Environmental Durability

The GS393-SR is designed to operate within a wide temperature range of -40°C to +125°C, making it ideal for automotive, industrial, and outdoor applications where temperature stability is critical. Its performance is less affected by thermal variations, providing greater reliability in harsh environments.

The LM393DRG4 also operates over a similar temperature range of -40°C to +125°C, but the GS393-SR’s better thermal stability and low offset voltage characteristics under temperature extremes give it a slight edge in environments with high-temperature fluctuations, such as automotive electronics and industrial control systems.

Package Options and Integration

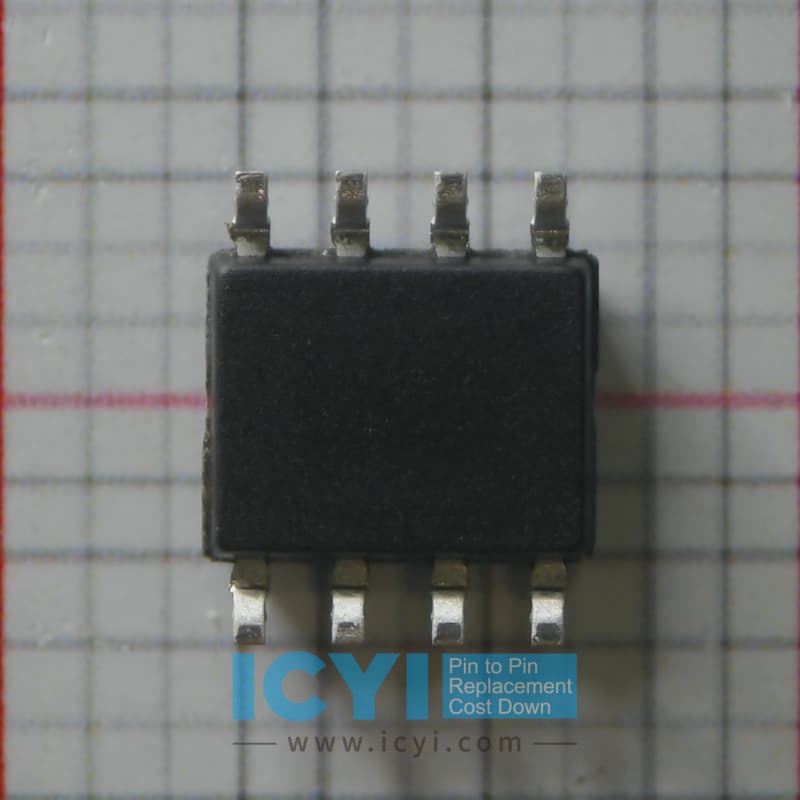

The GS393-SR is available in a compact 8-SOIC package, which is well-suited for space-constrained applications. It is designed to provide high efficiency while maintaining a small form factor, making it ideal for integration into dense circuit boards and high-density systems.

The LM393DRG4 also comes in the 8-SOIC package, but with slightly higher thermal resistance and power dissipation compared to the GS393-SR. The GS393-SR’s more efficient thermal management allows for better performance and longer operational life in demanding designs.

Cost-Effectiveness and Long-Term Value

While both the GS393-SR and the LM393DRG4 are priced competitively, the GS393-SR offers superior performance in terms of power consumption, precision, and speed. These advantages make the GS393-SR a more cost-effective solution for high-performance applications that require reliable long-term operation and minimal maintenance.

The LM393DRG4, although a reliable product for general-purpose uses, may incur higher operational costs in designs requiring low-power, high-speed, and precision performance due to its higher power consumption and slower response times. The GS393-SR, with its enhanced performance features, ensures greater return on investment in the long term.

Conclusion

The GS393-SR offers superior performance over the LM393DRG4 in several key areas, including power consumption, speed, precision, and temperature stability. Its low offset voltage, fast response time, and wide input voltage range make it the better choice for high-precision, low-power, and high-speed applications such as automotive electronics, sensor systems, and battery-powered devices.

While the LM393DRG4 is a solid choice for more general-purpose applications, the GS393-SR outperforms it in critical design parameters, making it the ideal solution for performance-sensitive applications.
