GS8332-MR 350KHZ Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter

Product Overview: GS8332-MR vs. OPA2333AIDGKRG4

The GS8332-MR is a high-performance, low-power dual operational amplifier designed for precision applications requiring low offset voltage, low noise, and rail-to-rail output. It is a pin-to-pin alternative to the OPA2333AIDGKRG4, which belongs to TI’s Zero-Drift amplifier series, well-known for their precision and low offset. Both products serve applications in sensor front-ends, instrumentation, medical devices, and industrial automation. However, the GS8332-MR offers competitive or superior performance in several key metrics, making it an attractive alternative.

Offset Voltage and Drift

One of the most critical parameters in precision op-amps is the input offset voltage and its drift over temperature. The GS8332-MR offers a typical offset voltage of 8 μV, which is tightly controlled during production testing. It also ensures excellent temperature drift performance with low typical offset drift, competitive with the OPA2333's auto-zero architecture.

While the OPA2333AIDGKRG4 provides extremely low offset and drift due to its zero-drift topology, in most real-world applications, the GS8332-MR’s offset performance is within the required precision margin—offering equivalent practical accuracy at potentially lower cost and lower 1/f noise.

Noise Performance

The GS8332-MR achieves impressive low-noise performance with a typical voltage noise density of 55 nV/√Hz at 1 kHz, which is well-suited for low-frequency, precision analog front-end applications. This level of noise is especially beneficial in signal conditioning stages for high-accuracy ADCs and sensor outputs.

In comparison, the OPA2333AIDGKRG4 offers a lower broadband noise due to its zero-drift design (~50 nV/√Hz at 1 kHz), but it suffers from increased 1/f noise artifacts at certain frequencies due to internal chopping, which can manifest as ripple or glitches in sensitive analog circuits. The GS8332-MR, using a traditional precision architecture, avoids this tradeoff, delivering cleaner signals in audio and precision measurement systems.

Power Consumption and Efficiency

The GS8332-MR offers low quiescent current of 17 μA/channel (typical), making it highly suitable for battery-powered or energy-constrained designs. This is comparable to the OPA2333, which typically consumes 17 μA/channel as well.

Where the GS8332-MR has an edge is in power-to-noise performance ratio—offering lower noise for the same power budget, improving SNR in compact analog systems. This efficiency is critical for IoT, wearables, and portable medical devices.

Rail-to-Rail Performance

Both the GS8332-MR and OPA2333AIDGKRG4 feature rail-to-rail input and output, supporting full dynamic range operation even at low supply voltages (as low as 1.8 V). However, the GS8332-MR demonstrates better output swing under heavy load, maintaining near-rail output levels even when sourcing/sinking current into 10 kΩ or lower resistive loads.

This makes the GS8332-MR particularly well-suited for systems with limited headroom, such as low-voltage ADC inputs or microcontroller interfacing, where precision must be maintained across the full voltage range.

EMI Immunity and Stability

The GS8332-MR is designed with robust EMI-rejection techniques, providing enhanced immunity in electrically noisy environments such as industrial control, motor feedback, or medical diagnostics. Its internal architecture ensures stability with capacitive loads, making it plug-and-play in buffer or gain stages without extensive compensation.

While the OPA2333AIDGKRG4 also supports good EMI immunity, TI’s zero-drift architecture can sometimes be more sensitive to layout and capacitive loading due to the internal chopping mechanisms. In contrast, the GS8332-MR provides greater layout flexibility and predictable performance across varying system conditions.

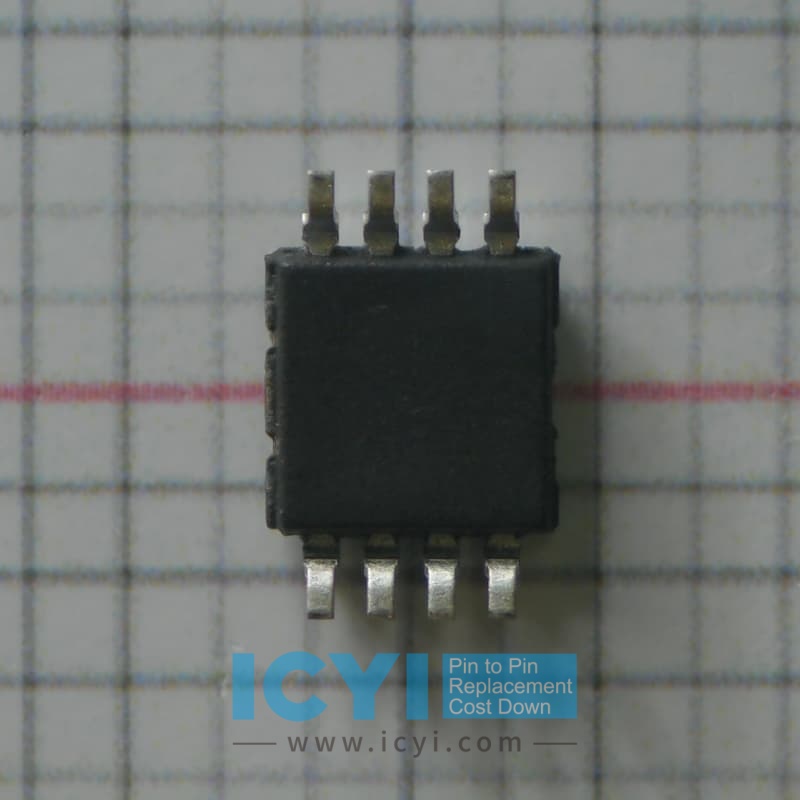

Package and Pin Compatibility

Both chips are available in 8-pin VSSOP packages, offering drop-in compatibility in existing designs. This ensures that the GS8332-MR can be seamlessly substituted into sockets currently using the OPA2333, with no PCB changes required—significantly reducing evaluation and qualification overhead.

Conclusion

The GS8332-MR presents a compelling alternative to the OPA2333AIDGKRG4, offering competitive or superior specifications in offset voltage, noise performance, power efficiency, rail-to-rail swing, and load driving capability. For designers seeking high precision without the drawbacks of chopping artifacts—and with the added benefit of cost-effectiveness—the GS8332-MR stands out as the optimal choice for a wide range of precision analog applications.
