GS8332-SR 350KHZ Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter

Product Overview: GS8332-SR vs. OPA2333AIDRG4

The GS8332-SR is a dual-channel, ultra-low offset precision CMOS operational amplifier designed for high-accuracy and low-power applications. It serves as a pin-to-pin alternative to Texas Instruments' OPA2333AIDRG4, which is part of their renowned zero-drift amplifier series. While both devices target similar markets such as sensor signal conditioning, battery-powered instrumentation, and medical equipment, the GS8332-SR delivers comparable performance with certain notable advantages in practical application contexts.

Offset Voltage and Drift Performance

Offset voltage is a critical parameter in precision amplifiers. The GS8332-SR features a typical input offset voltage of 8 µV, tightly controlled during production. Additionally, it ensures excellent offset drift characteristics, offering stable performance across the full industrial temperature range.

While the OPA2333AIDRG4 is built on a zero-drift architecture and offers lower offset voltage (typ. 5 µV), its internal chopping introduces potential switching artifacts that may affect signal integrity in sensitive analog paths. In contrast, the GS8332-SR, which employs a traditional high-precision CMOS design, achieves ultra-low offset without introducing modulation ripple, making it a cleaner choice in many noise-sensitive applications such as audio preamplifiers or precision low-speed ADC front ends.

Noise Characteristics

The GS8332-SR delivers excellent noise performance with a typical voltage noise density of 55 nV/√Hz at 1 kHz, which is well suited for low-frequency and DC-precision systems. Unlike chopper amplifiers such as the OPA2333AIDRG4, the GS8332-SR exhibits lower 1/f noise peaking and no chopper ripple, resulting in a smoother output spectrum.

For applications where ultra-low-frequency noise and distortion are key—such as strain gauge amplification, thermocouple interfaces, or photodiode preamplifiers—the GS8332-SR offers a quieter and more stable alternative.

Power Consumption and Supply Voltage Range

The GS8332-SR consumes a typical quiescent current of just 17 μA per channel, placing it on par with the OPA2333AIDRG4, which also targets ultra-low-power systems. Both devices support wide supply voltage ranges from 1.8 V to 5.5 V, allowing flexible integration into low-voltage and battery-operated designs.

However, the GS8332-SR offers an optimized power-to-noise ratio, maximizing signal fidelity within constrained power budgets. This is particularly beneficial for portable, wearable, or always-on sensing applications that demand long battery life and precision.

Output Drive Capability and Rail-to-Rail Operation

The GS8332-SR provides rail-to-rail input and output operation, supporting full dynamic range even near supply rails. It also maintains strong output swing performance under load, preserving linearity across a wide range of resistive and capacitive loading conditions.

Compared with the OPA2333AIDRG4, which also offers rail-to-rail I/O, the GS8332-SR demonstrates more consistent output voltage levels under heavy load, enabling more reliable performance when interfacing with ADCs, sensors, or digital logic without degradation in swing margin.

Stability, EMI Robustness, and Load Tolerance

The GS8332-SR is designed with enhanced layout tolerance and capacitive load stability, ensuring robust behavior across a range of PCB configurations. It also incorporates high EMI immunity, protecting signal integrity in environments with switching noise or RF interference—making it ideal for industrial or automotive designs.

In contrast, the OPA2333AIDRG4, due to its internal chopping circuitry, may require more careful PCB layout to avoid transient effects, and it is sometimes less tolerant to capacitive loading without added compensation components. The GS8332-SR simplifies integration by minimizing design constraints.

Packaging and Pin Compatibility

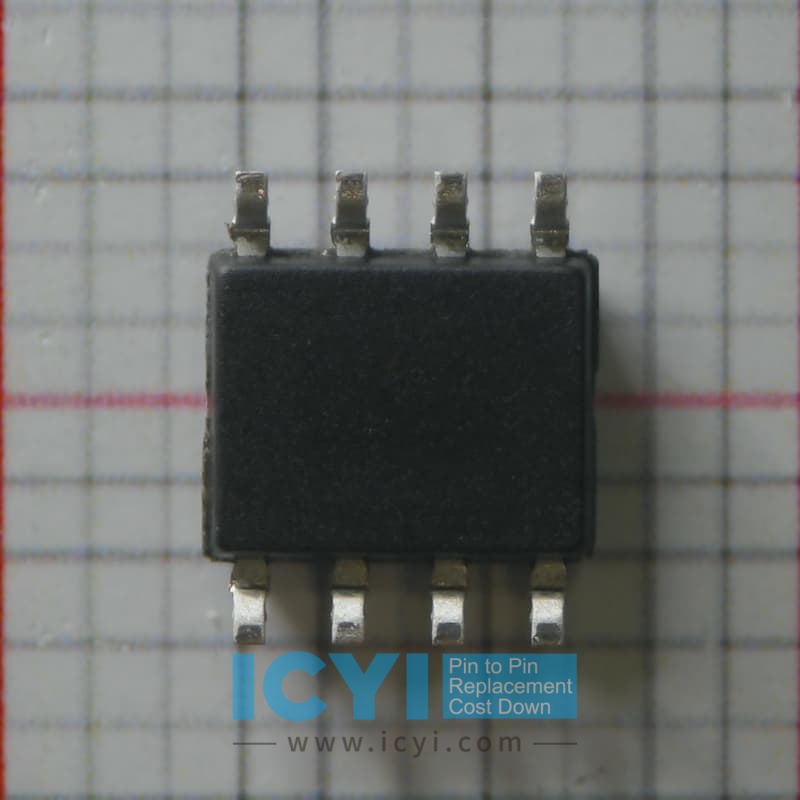

The GS8332-SR is housed in a standard 8-pin SOIC package, directly matching the OPA2333AIDRG4. This ensures complete pin-to-pin compatibility, allowing effortless substitution without requiring PCB redesign. It offers engineers an easy path for qualification and dual-sourcing.

Conclusion

The GS8332-SR presents a compelling, cost-effective alternative to the OPA2333AIDRG4, offering comparable low offset, low power, and rail-to-rail performance while eliminating chopper-induced artifacts. Its clean signal profile, robust EMI immunity, and layout-friendly behavior make it an excellent choice for precision analog systems requiring both accuracy and reliability. For designers seeking high-value solutions with dependable real-world performance, the GS8332-SR stands out as a superior option.
