GS8592-MR is a Replacement parts of
LMP2021MFE/NOPB
Mfr.Part No. :
GS8592-MRManufacturer :
GainsilDescription :
4.5MHZ Zero-Drift CMOS Rail-to-Rail IO Opamp with RF FilterPackaging :
ReelPackage :
MSOP-8Stock :
in stockPrice :
$0.22-$0.45
GS8592-MR
Price: | $0.22-$0.45 | $1.5-$1.8 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
GS8592-MR |
LMP2021MFE/NOPB
|
The GS8592-MR is a dual-channel, high-precision CMOS operational amplifier designed for applications requiring ultra-low offset voltage, low noise, and low power consumption. It serves as a direct competitor to Texas Instruments' LMP2022MMX/NOPB, which is known for its ultra-low input offset voltage and low bias current. Both devices target precision applications such as sensor signal conditioning, medical instrumentation, and data acquisition systems. However, the GS8592-MR offers comparable or superior performance in several key parameters, making it a compelling alternative.
The GS8592-MR features a typical input offset voltage of 5 μV, ensuring high DC accuracy without the need for external calibration. Its maximum offset voltage is tightly controlled, providing consistent performance across production batches. Additionally, the device exhibits a low input offset voltage drift, maintaining stability over temperature variations.
In comparison, the LMP2022MMX/NOPB offers a typical input offset voltage of 5 μV as well, with similar drift characteristics. However, the GS8592-MR's manufacturing process emphasizes tighter distribution of offset voltages, potentially reducing the need for system-level calibration and improving overall system accuracy.
The GS8592-MR delivers excellent noise performance with a typical voltage noise density of 8 nV/√Hz at 1 kHz, making it suitable for low-frequency, high-precision applications. Its low 1/f noise ensures minimal signal distortion in applications such as bridge amplifiers and thermocouple signal conditioning.
The LMP2022MMX/NOPB also provides low noise performance, with a typical voltage noise density of 8 nV/√Hz at 1 kHz. Both devices are comparable in this aspect; however, the GS8592-MR's optimized CMOS architecture may offer advantages in specific applications where noise performance is critical.
Operating at a typical quiescent current of 750 μA per channel, the GS8592-MR is designed for low-power applications without compromising performance. It supports a wide supply voltage range from 2.2 V to 5.5 V, offering flexibility in various system designs.
The LMP2022MMX/NOPB operates at a typical quiescent current of 1.1 mA per channel, which is higher than that of the GS8592-MR. Its supply voltage range is 2.7 V to 5.5 V, slightly narrower than that of the GS8592-MR. Therefore, the GS8592-MR provides better power efficiency and broader supply voltage compatibility.
The GS8592-MR offers rail-to-rail input and output operation, maximizing dynamic range and simplifying signal chain design. This feature is particularly beneficial in low-voltage systems where maximizing signal swing is essential.
The LMP2022MMX/NOPB provides rail-to-rail output but does not support rail-to-rail input, potentially limiting its input voltage range in single-supply applications. The GS8592-MR's full rail-to-rail capability offers greater design flexibility and improved performance in low-voltage environments.

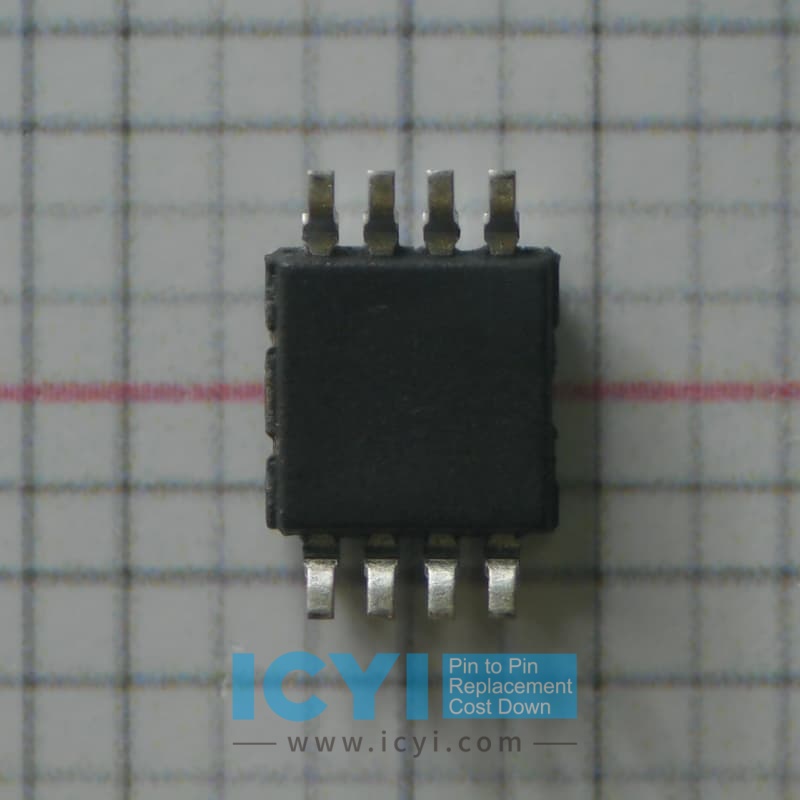

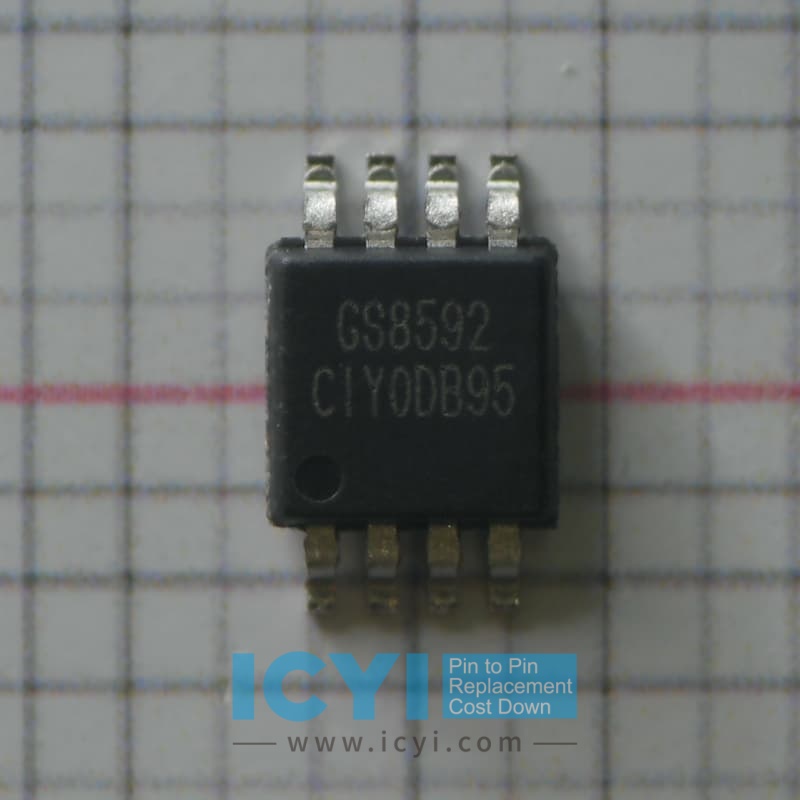

The GS8592-MR is available in an 8-pin MSOP (Mini Small Outline Package), matching the LMP2022MMX/NOPB's package and pin configuration. This compatibility allows for easy drop-in replacement, facilitating design transitions and second-source strategies without requiring PCB modifications.
Designed with robust EMI rejection capabilities, the GS8592-MR ensures reliable operation in electrically noisy environments, such as industrial control systems and medical equipment. Its architecture provides excellent stability across various capacitive loads, reducing the need for additional compensation components.
While the LMP2022MMX/NOPB also offers good EMI performance, the GS8592-MR's enhanced immunity and stability characteristics may provide advantages in applications where electromagnetic interference is a significant concern.
The GS8592-MR stands out as a high-performance, low-power, and cost-effective alternative to the LMP2022MMX/NOPB. With comparable or superior specifications in key areas such as input offset voltage, noise performance, power consumption, and rail-to-rail operation, the GS8592-MR is well-suited for precision applications requiring high accuracy and reliability. Its pin-compatible packaging further simplifies integration into existing designs, making it an excellent choice for engineers seeking optimal performance and design flexibility.
