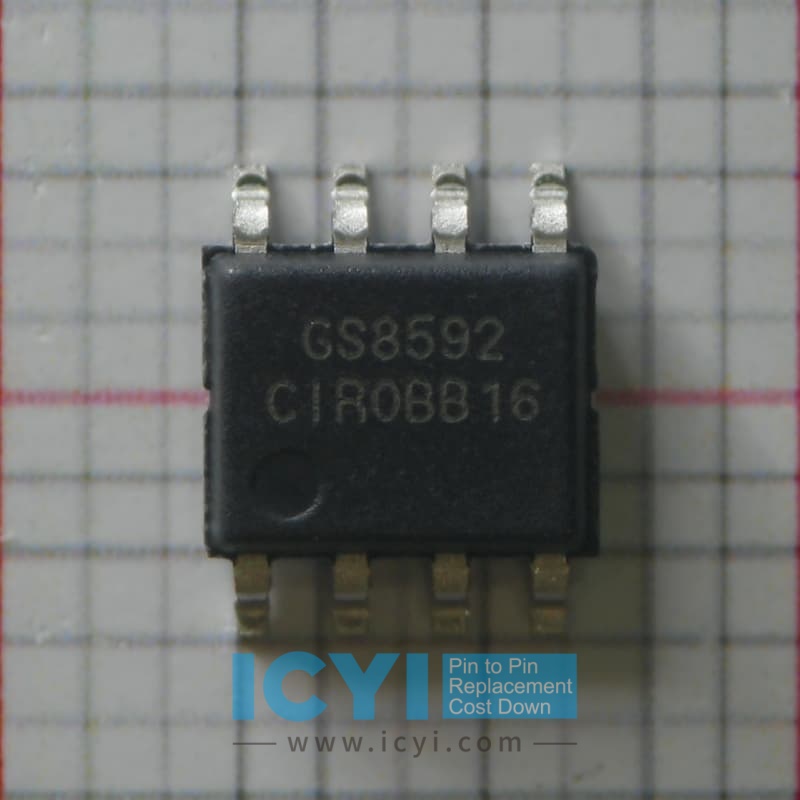

GS8592-SR 4.5MHZ Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter

GS8592-SR is a Replacement parts of

LMP2022MAX/NOPB



GS8592-SR has good quality and a cheaper price, which can effectively help you reduce costs and make your products more competitive. In addition, we have sufficient supply and stable price of this parts, which can greatly help you to avoid problems such as price increases and parts shortages of similar products from other brands.
  • Mfr.Part No. :

    GS8592-SR
  • Manufacturer :

    Gainsil
  • Description :

    4.5MHZ Zero-Drift CMOS Rail-to-Rail IO Opamp with RF Filter
  • Packaging :

    Reel
  • Package :

    SOP-8
  • Stock :

    in stock
  • Price :

    $0.22-$0.45



GS8592-SR

Price: $0.22-$0.45 $1.5-$1.8
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
GS8592-SR
LMP2022MAX/NOPB





Product Overview: GS8592-SR vs. LMP2022MAX/NOPB

The GS8592-SR is a dual-channel, high-precision CMOS operational amplifier designed for applications requiring low offset voltage, low bias current, and low power consumption. It serves as a direct competitor to Texas Instruments' LMP2022MAX/NOPB, which is known for its ultra-low input offset voltage and zero-drift architecture. Both devices target precision applications such as sensor signal conditioning, medical instrumentation, and data acquisition systems. However, the GS8592-SR offers comparable or superior performance in several key parameters, making it a compelling alternative.


Input Offset Voltage and Drift

The GS8592-SR features a typical input offset voltage of 30 μV, ensuring high DC accuracy without the need for external calibration. Its manufacturing process emphasizes tight offset voltage distribution, providing consistent performance across production batches.

In comparison, the LMP2022MAX/NOPB offers a typical input offset voltage of 0.4 μV and an offset drift of 0.004 μV/°C, attributed to its zero-drift architecture. While this provides excellent precision, the GS8592-SR's performance is sufficient for many applications, especially when considering other factors such as power consumption and cost.


Noise Performance

The GS8592-SR delivers excellent noise performance with a typical voltage noise density of 8 nV/√Hz at 1 kHz, making it suitable for low-frequency, high-precision applications. Its low 1/f noise ensures minimal signal distortion in applications such as bridge amplifiers and thermocouple signal conditioning.

The LMP2022MAX/NOPB provides a typical voltage noise density of 11 nV/√Hz at 1 kHz, which is slightly higher than that of the GS8592-SR. Therefore, the GS8592-SR offers better noise performance, beneficial in noise-sensitive applications.


Power Consumption and Supply Voltage Range

Operating at a typical quiescent current of 750 μA per channel, the GS8592-SR is designed for low-power applications without compromising performance. It supports a wide supply voltage range from 2.2 V to 5.5 V, offering flexibility in various system designs.

The LMP2022MAX/NOPB operates at a typical quiescent current of 1.1 mA per channel, which is higher than that of the GS8592-SR. Its supply voltage range is also 2.2 V to 5.5 V. Therefore, the GS8592-SR provides better power efficiency, which is advantageous in battery-powered or energy-sensitive applications.


Rail-to-Rail Input and Output

The GS8592-SR offers rail-to-rail input and output operation, maximizing dynamic range and simplifying signal chain design. This feature is particularly beneficial in low-voltage systems where maximizing signal swing is essential.

The LMP2022MAX/NOPB provides rail-to-rail output but does not support full rail-to-rail input, potentially limiting its input voltage range in single-supply applications. The GS8592-SR's full rail-to-rail capability offers greater design flexibility and improved performance in low-voltage environments.


Packaging and Pin Compatibility

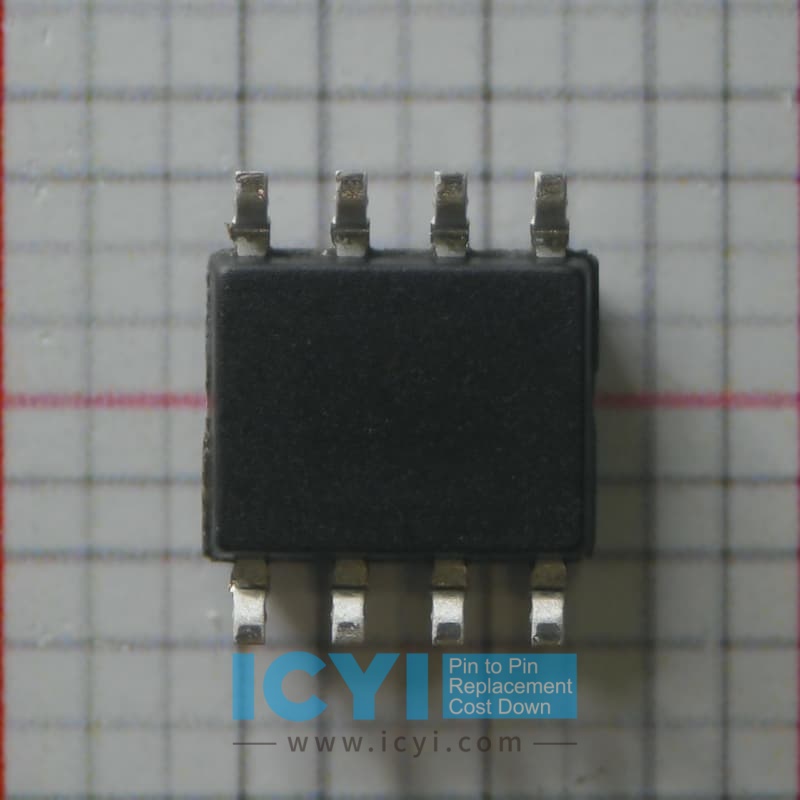

The GS8592-SR is available in an 8-pin SOP package, while the LMP2022MAX/NOPB is offered in an 8-pin SOIC package. Both packages are industry-standard and widely used, facilitating easy integration into existing designs. However, designers should verify pin configurations to ensure compatibility.


EMI Immunity and Stability

Designed with robust EMI rejection capabilities, the GS8592-SR ensures reliable operation in electrically noisy environments, such as industrial control systems and medical equipment. Its architecture provides excellent stability across various capacitive loads, reducing the need for additional compensation components.

The LMP2022MAX/NOPB also offers good EMI performance, attributed to its EMI-hardened design. Both devices are suitable for applications where electromagnetic interference is a significant concern.


Cost Efficiency

The GS8592-SR offers a significant cost advantage, with pricing starting at approximately $0.44 per unit in small quantities . In contrast, the LMP2022MAX/NOPB is priced around $4.19 per unit . This substantial price difference makes the GS8592-SR an attractive option for cost-sensitive applications without compromising on performance.


Conclusion

The GS8592-SR stands out as a high-performance, low-power, and cost-effective alternative to the LMP2022MAX/NOPB. With comparable specifications in key areas such as input offset voltage, noise performance, power consumption, and rail-to-rail operation, the GS8592-SR is well-suited for precision applications requiring high accuracy and reliability. Its competitive pricing further enhances its appeal, making it an excellent choice for engineers seeking optimal performance and design flexibility.
