LM324-SR is a Replacement parts of
LM324DRG4
Mfr.Part No. :
LM324-SRManufacturer :
3peakDescription :
1.2MHz, Low-Power 36V Op AmpsPackaging :
ReelPackage :
SOP-14Stock :
in stockPrice :
$0.05-$0.12
LM324-SR
| Price: | $0.08-$0.18 | $0.2-$0.25 |
|
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
LM324-SR |
LM324DRG4
|
The LM324-SR by 3PEAK is a quad operational amplifier designed for low-power applications, offering features such as rail-to-rail output and a wide supply voltage range. The LM324DRG4 from Texas Instruments is a general-purpose quad op-amp with similar applications. While both devices serve comparable functions, the LM324-SR provides notable advantages in power consumption, input offset voltage, and operating temperature range.
The LM324-SR exhibits a typical supply current of 100 μA per amplifier, making it highly suitable for battery-powered and energy-efficient applications.
In contrast, the LM324DRG4 has a typical supply current of 1.4 mA per amplifier, which is significantly higher. This difference makes the LM324-SR more favorable for designs where low power consumption is critical.
The LM324-SR offers a typical input offset voltage of 1 mV, ensuring higher precision in signal amplification.
The LM324DRG4 has a typical input offset voltage of 3 mV, which may lead to greater deviation in applications requiring high accuracy. Therefore, the LM324-SR provides better performance in precision-sensitive applications.
The LM324-SR operates over a temperature range of –40°C to 125°C, accommodating a wide array of industrial and automotive applications.
The LM324DRG4 operates within a narrower temperature range of 0°C to 70°C, limiting its use in environments with extreme temperatures. Thus, the LM324-SR offers greater versatility for various operating conditions.
The LM324-SR supports a wide supply voltage range from 3 V to 36 V (single supply) or ±1.5 V to ±18 V (dual supply), providing flexibility in different power supply configurations.
The LM324DRG4 operates within a supply voltage range of 3 V to 30 V, offering less flexibility compared to the LM324-SR.
Both the LM324-SR and LM324DRG4 provide rail-to-rail output, which is beneficial for maximizing the output voltage swing in low-voltage applications.

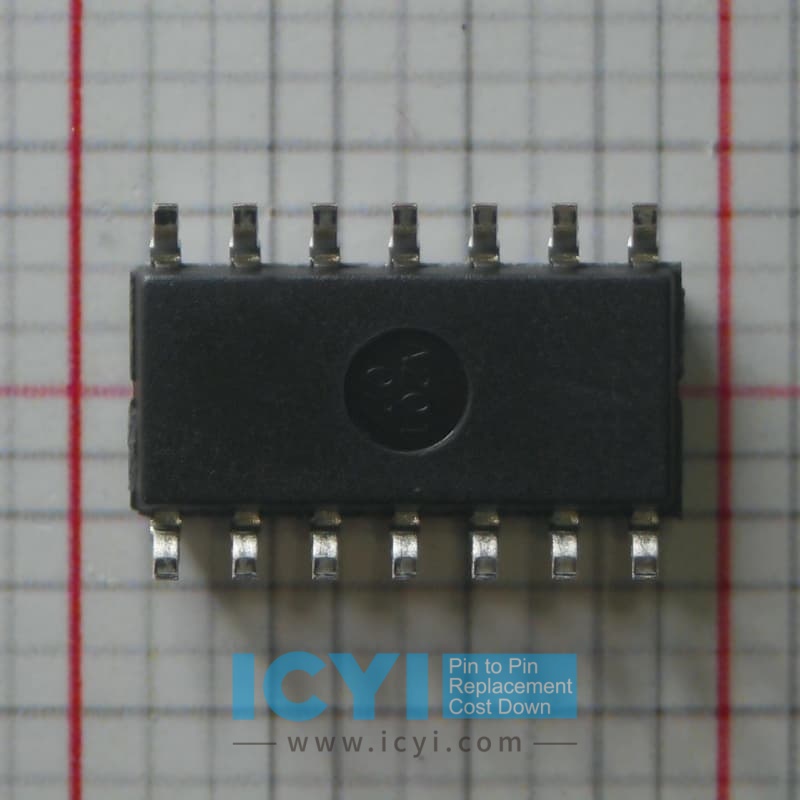

The LM324-SR is available in a 14-pin SOP package, suitable for surface-mount applications.
Similarly, the LM324DRG4 comes in a 14-pin SOIC package, also designed for surface mounting. Both packages are industry-standard and compatible with automated assembly processes.
In summary, the 3PEAK LM324-SR offers significant advantages over the Texas Instruments LM324DRG4, including lower power consumption, better input offset voltage, wider operating temperature range, and a broader supply voltage range. These features make the LM324-SR a superior choice for applications requiring energy efficiency, precision, and reliability across various environmental conditions.
