LMV321B-TR 1MHz, 80μA, RRIO, Op Amps

Overview of LMV321B-TR and LMV321IDBVR

The LMV321B-TR from 3peak is a high-performance, low-power operational amplifier designed to meet the needs of modern electronic systems, especially those in battery-operated devices, industrial, and automotive applications. This amplifier provides a superior balance of low power consumption, high precision, and excellent noise immunity.

The LMV321IDBVR from Texas Instruments is another low-power, single operational amplifier, commonly used in general-purpose applications. While it offers solid performance, the LMV321B-TR excels in several key areas, including energy efficiency, accuracy, and packaging flexibility, making it the preferred choice for power-sensitive and precision-demanding applications.

Power Supply and Consumption

1. Power Supply Range and Consumption:

   • The LMV321B-TR operates with a supply voltage range from 2.7V to 40V (single supply) or ±1.35V to ±20V (dual supply). With a typical quiescent current of 25µA, the LMV321B-TR stands out for its ultra-low power consumption, making it ideal for battery-operated devices where energy efficiency is paramount.

   • The LMV321IDBVR, on the other hand, operates within a similar voltage range of 2.7V to 40V (single supply) or ±1.35V to ±20V (dual supply) but has a typical quiescent current of 40µA. While still low-power, this higher quiescent current reduces the LMV321IDBVR's overall energy efficiency, especially in designs that require long battery life.

Precision and Accuracy

2. Input Offset Voltage and Accuracy:

   • The LMV321B-TR features a low input offset voltage of maximum 3mV, which ensures high accuracy and minimal signal distortion in precision applications like sensor interfaces and voltage reference circuits. This reduced offset voltage allows for accurate signal processing even in low-voltage environments.

   • The LMV321IDBVR has a maximum input offset voltage of 5mV, which is slightly higher than the LMV321B-TR. In applications requiring high-precision signal conditioning, the LMV321B-TR's lower offset voltage provides a distinct advantage, ensuring more accurate measurements and stable operation in critical systems.

Noise Performance and Immunity

3. Noise Performance:

   • The LMV321B-TR is optimized for low-noise operation, offering enhanced noise immunity, which is crucial in environments with high electromagnetic interference (EMI) or for sensitive analog signal processing. This is particularly important in applications such as audio processing, medical devices, and industrial sensors.

   • The LMV321IDBVR also offers good noise performance but may be more susceptible to power supply fluctuations and external noise sources due to its higher quiescent current. The LMV321B-TR's lower current draw contributes to a more stable and quieter signal, providing better overall noise rejection and signal integrity.

Temperature Stability

4. Temperature Range and Performance:

   • The LMV321B-TR has an operating temperature range of -40°C to +125°C, making it well-suited for use in automotive, industrial, and outdoor applications that require performance stability under extreme environmental conditions. Additionally, it offers better thermal stability with low drift across temperature variations, ensuring reliable operation in demanding settings.

   • The LMV321IDBVR also operates within the same temperature range of -40°C to +125°C. However, the LMV321B-TR excels in thermal compensation and drift reduction, providing more consistent performance over temperature cycles and better long-term reliability.

Slew Rate and Response Time

5. Slew Rate and Speed:

   • The LMV321B-TR provides a slew rate of 0.3V/µs, which allows it to handle faster signal changes with minimal distortion, making it suitable for high-speed signal processing applications.

   • The LMV321IDBVR has a slew rate of 0.1V/µs, which is slower than the LMV321B-TR. In applications where rapid response is critical, such as data acquisition systems or feedback loops, the LMV321B-TR's higher slew rate ensures better signal fidelity and faster response times.

Packaging and Integration

6. Compact Packaging for Design Flexibility:

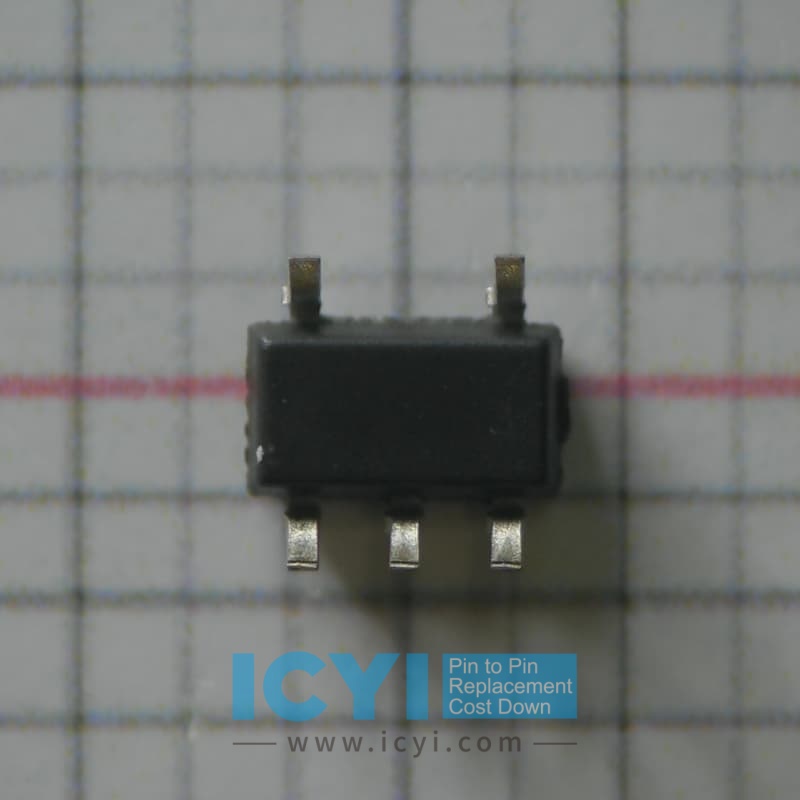

   • The LMV321B-TR is offered in the SOT-23-5 package, a small, compact form factor that allows for space-efficient designs in applications where PCB area is limited. This packaging is ideal for portable and wearable devices that require both high performance and a small footprint.

   • The LMV321IDBVR comes in a SOT-23 package, which is slightly larger compared to the LMV321B-TR's SOT-23-5. While both packages are small, the LMV321B-TR's smaller form factor provides more flexibility in designing compact systems.

Cost-Effectiveness

7. Cost vs. Performance:

   • The LMV321B-TR provides a highly cost-effective solution with superior performance, offering a balance of low power consumption, high precision, and small package size. This makes it an ideal choice for manufacturers looking for economical components without compromising on quality or performance.

   • The LMV321IDBVR is similarly cost-effective, but due to its higher quiescent current and slightly higher offset voltage, it may not provide the same level of energy efficiency or accuracy in demanding applications. The LMV321B-TR's advantages in these areas offer a better value proposition in the long term.

Conclusion

In summary, while both the LMV321B-TR and the LMV321IDBVR offer similar functionalities, the LMV321B-TR from 3peak presents several key advantages that make it the superior choice for a wide range of applications. The LMV321B-TR excels in low power consumption, high precision, low noise performance, and compact packaging, all of which are critical in today's power-conscious and space-limited designs. For applications requiring superior energy efficiency, precision, and reliable performance, the LMV321B-TR is the ideal solution.
