LMV358B-SR 1MHz, 80μA, RRIO, Op Amps

LMV358B-SR is a Replacement parts of

LMV358IDRG4



LMV358B-SR has good quality and a cheaper price, which can effectively help you reduce costs and make your products more competitive. In addition, we have sufficient supply and stable price of this parts, which can greatly help you to avoid problems such as price increases and parts shortages of similar products from other brands.

  • Mfr.Part No. :

    LMV358B-SR
  • Manufacturer :

    3peak
  • Description :

    1MHz, 80μA, RRIO, Op Amps
  • Packaging :

    Reel

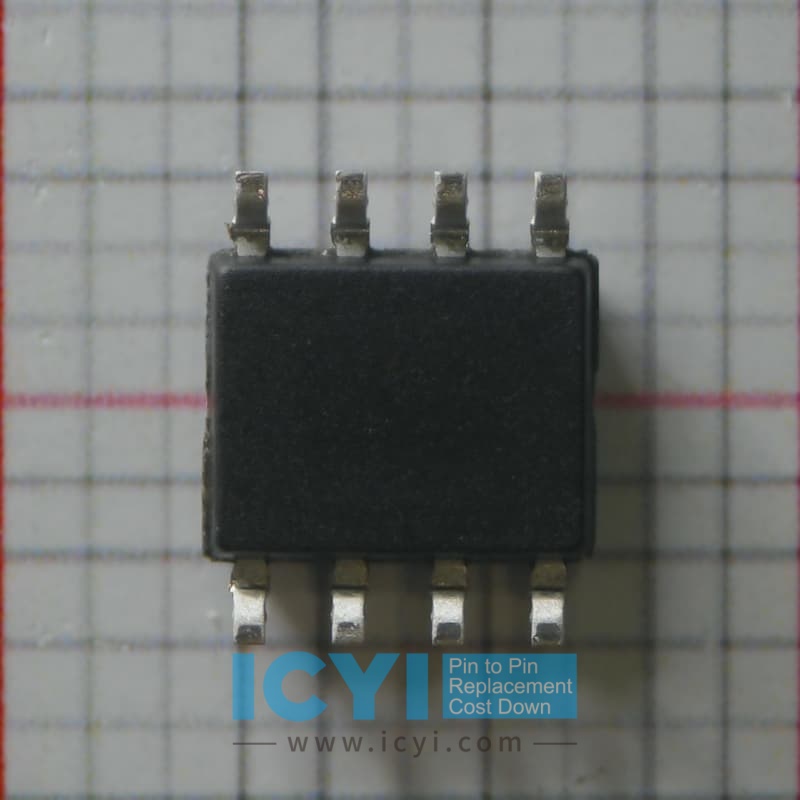

  • Package :

    SOIC-8
  • Stock :

    in stock
  • Price :

    $0.12-$0.28



LMV358B-SR

Price: $0.12-$0.28 $0.3-$0.5
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
LMV358B-SR
LMV358IDRG4





Overview of LMV358B-SR and LMV358IDRG4

The LMV358B-SR from 3peak is a low-power, dual operational amplifier designed to meet the needs of precision analog applications. With a focus on high performance in low-voltage, low-power environments, the LMV358B-SR delivers reliable operation with minimal current draw, making it ideal for battery-powered and portable devices.

The LMV358IDRG4 from Texas Instruments is a general-purpose, dual operational amplifier that is commonly used in similar applications but has certain design trade-offs that may affect its performance in power-sensitive and high-precision scenarios. While it offers reliable functionality, it typically consumes more power and has slightly less precision than the LMV358B-SR.


Power Consumption and Quiescent Current

  1. Power Efficiency:

    • The LMV358B-SR is optimized for low power consumption, featuring a quiescent current of only 90µA per amplifier. This is particularly advantageous in applications where long battery life is crucial, such as portable devices, sensors, and energy-harvesting systems. The low quiescent current ensures that the device can run for extended periods without significant power draw, providing a key advantage in mobile and low-power systems.

    • In contrast, the LMV358IDRG4 typically draws 150µA per amplifier, which is higher than the LMV358B-SR. This results in increased power consumption, which may be a drawback in battery-operated systems or energy-constrained applications.


Input Offset Voltage and Precision

  1. Precision and Accuracy:

    • The LMV358B-SR offers a maximum input offset voltage of 5mV, providing high precision in low-voltage applications. This makes it ideal for signal conditioning, sensor interfaces, and instrumentation where small signal amplification is crucial. The LMV358B-SR’s low offset voltage ensures minimal signal distortion, which is essential in applications requiring high accuracy.

    • The LMV358IDRG4 has a maximum input offset voltage of 7mV, which is slightly higher than that of the LMV358B-SR. While still acceptable for general-purpose applications, this higher offset voltage could lead to slightly less precision in more sensitive signal processing tasks, making it less suitable for designs that demand high accuracy over a wide range of conditions.


Noise Immunity and Performance

  1. Noise Rejection and Stability:

    • The LMV358B-SR is designed to offer superior noise rejection with low input bias current and low noise density. This makes it especially effective in noisy environments, where external electromagnetic interference (EMI) might affect performance. Applications like audio amplifiers, communication systems, and industrial sensors benefit from the LMV358B-SR's ability to maintain signal integrity in challenging conditions.

    • On the other hand, the LMV358IDRG4 also provides good noise performance, but it is more susceptible to power supply noise due to its higher power consumption. This makes the LMV358B-SR a better choice for applications where low-noise performance is critical, such as in medical equipment and high-fidelity audio systems.


Temperature Stability and Operating Range

  1. Temperature Performance:

    • The LMV358B-SR is optimized for temperature stability, with a wide operating temperature range of -40°C to +125°C. This allows the LMV358B-SR to perform consistently even in harsh environmental conditions, making it suitable for industrial, automotive, and aerospace applications.

    • The LMV358IDRG4 also operates within the same temperature range, but its higher quiescent current may result in more temperature-induced drift, especially in extreme conditions. The LMV358B-SR’s lower power consumption allows it to maintain more stable performance across a wider temperature range.


Slew Rate and Response Time

  1. Slew Rate and Speed:

    • The LMV358B-SR provides a slew rate of 0.3V/µs, which is well-suited for low-to-moderate speed applications, such as sensor interfaces, low-speed analog signal conditioning, and low-frequency filtering. Its optimized slew rate balances speed and power efficiency, ensuring smooth signal processing without excessive power draw.

    • The LMV358IDRG4 has a slew rate of 0.1V/µs, which is slower than the LMV358B-SR. While the LMV358IDRG4 can still handle general-purpose tasks, its slower response may not be sufficient for applications requiring higher-speed signal processing or faster adjustments to input signals.


Packaging and Integration

  1. Compact and Efficient Packaging:

    • The LMV358B-SR is available in a 5-pin SOT-23 package, which is smaller and more compact compared to the 8-pin SOIC package of the LMV358IDRG4. This makes the LMV358B-SR an ideal choice for space-constrained designs, where PCB real estate is limited, such as in handheld devices, wearables, and compact embedded systems.

    • While the LMV358IDRG4 provides more pins for easier integration into designs with more complex requirements, the LMV358B-SR's smaller package offers better flexibility in compact designs, reducing the overall size of the PCB and allowing for better utilization of available space.


Cost-Effectiveness and Market Positioning

  1. Cost-Effective Solution:

    • The LMV358B-SR offers a superior cost-to-performance ratio due to its low power consumption, high precision, and small package size. It provides outstanding performance at a competitive price point, making it an ideal choice for cost-sensitive applications without compromising on quality or reliability.

    • The LMV358IDRG4, while a reliable option, tends to come at a slightly higher cost due to its more traditional design and higher power consumption. The LMV358B-SR provides better value for money, especially in energy-efficient applications.


Conclusion

In conclusion, the LMV358B-SR from 3peak stands out as the superior choice when compared to the LMV358IDRG4 from Texas Instruments. Its low power consumption, lower input offset voltage, superior noise immunity, and more compact package make it an ideal choice for battery-powered systems, portable devices, and space-constrained applications. Additionally, its better temperature stability and faster slew rate provide enhanced performance in demanding environments.



For applications requiring high precision, low power consumption, and reliable operation in a compact form factor, the LMV358B-SR delivers clear advantages, offering a cost-effective, high-performance solution that outperforms the LMV358IDRG4 in several key areas.
