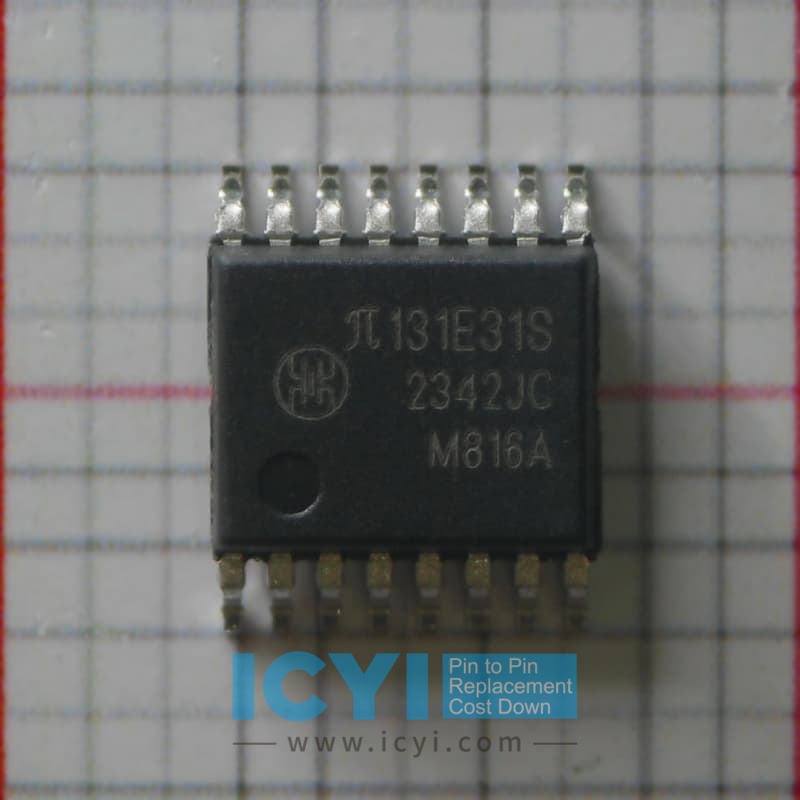

π131E31S is a Replacement parts of
ISO7731DBQR/ISO7131CCDBQR
Mfr.Part No. :
π131E31SManufacturer :
2Pai SemiDescription :
Enhanced ESD, 3.0 kV rms/5.0 kV rms 200Mbps Triple-Channel Digital IsolatorsPackaging :
ReelPackage :
SSOP-16Stock :
In stockPrice :
$0.8-$1.3
π131E31S
Price: | $0.8-$1.3 | $1.8-$2.5 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
π131E31S |
ISO7731DBQR
ISO7131CCDBQR
|
The π131E31S is a highly integrated, high-performance isolator designed to deliver superior signal isolation for a range of applications in the electronics industry. This comparison highlights the key advantages of the π131E31S over the competing products ISO7731DBQR and ISO7131CCDBQR, focusing on performance, efficiency, and integration.
The π131E31S offers excellent isolation performance, supporting high-voltage isolation (up to 5kV), which is crucial for ensuring system stability in environments with significant electrical noise. It also demonstrates superior transient immunity, making it ideal for demanding industrial and automotive applications.
In comparison, the ISO7731DBQR provides isolation up to 3.75kV, and while sufficient for many applications, it falls short when higher isolation voltages are required. Similarly, the ISO7131CCDBQR offers a similar 3.75kV isolation voltage but lacks some of the enhanced transient immunity features present in the π131E31S, making the latter more robust in noisy environments.
One of the standout features of the π131E31S is its high level of integration. This chip integrates multiple isolation channels within a single package, reducing the overall component count in a system and improving power efficiency. It is particularly effective in low-power designs, with the capability to operate at ultra-low power consumption without compromising performance.
On the other hand, the ISO7731DBQR and ISO7131CCDBQR offer multiple isolation channels, but the power consumption is slightly higher, especially in configurations requiring more isolation paths. The π131E31S thus offers a distinct advantage in systems where minimizing power consumption is crucial, such as in battery-powered or energy-efficient applications.
The π131E31S excels in its data rate capabilities, supporting high-speed data transfer, which is crucial for modern applications such as data communication systems and precision industrial control. Its ability to handle data rates of up to 25Mbps gives it an edge in environments where fast communication is necessary for maintaining system performance.
While the ISO7731DBQR and ISO7131CCDBQR provide acceptable data rates (up to 25Mbps in the case of ISO7731DBQR), the π131E31S ensures more stable performance under high-speed conditions, thanks to its enhanced signal integrity and reduced propagation delay, making it more suitable for high-performance, high-speed applications.
The π131E31S has been designed with a wider operating temperature range, making it highly reliable in extreme temperature conditions, ranging from -40°C to +125°C. This makes it suitable for use in both automotive and industrial sectors, where temperature fluctuations can be significant.
In contrast, the ISO7731DBQR and ISO7131CCDBQR operate within a narrower temperature range, generally between -40°C and +105°C, limiting their application in some high-performance industrial environments that require extended temperature tolerance. The π131E31S therefore has an edge in applications that demand reliability over a wider temperature spectrum.
The π131E31S is available in a compact, space-efficient package, which facilitates easy integration into complex systems where board space is at a premium. Its small form factor, combined with its superior performance characteristics, allows engineers to design more compact and effective systems.
The ISO7731DBQR and ISO7131CCDBQR come in slightly larger packages, which may limit the flexibility of system design, especially in space-constrained applications. Moreover, the π131E31S offers a variety of configurations, providing greater versatility in addressing diverse system requirements.
In conclusion, while both the ISO7731DBQR and ISO7131CCDBQR offer reliable isolation solutions, the π131E31S stands out in terms of its higher isolation voltage, superior power efficiency, better data rate performance, wider operating temperature range, and smaller package size. These advantages make the π131E31S the preferred choice for high-performance, low-power, and space-constrained applications in industries such as automotive, industrial control, and communications.
