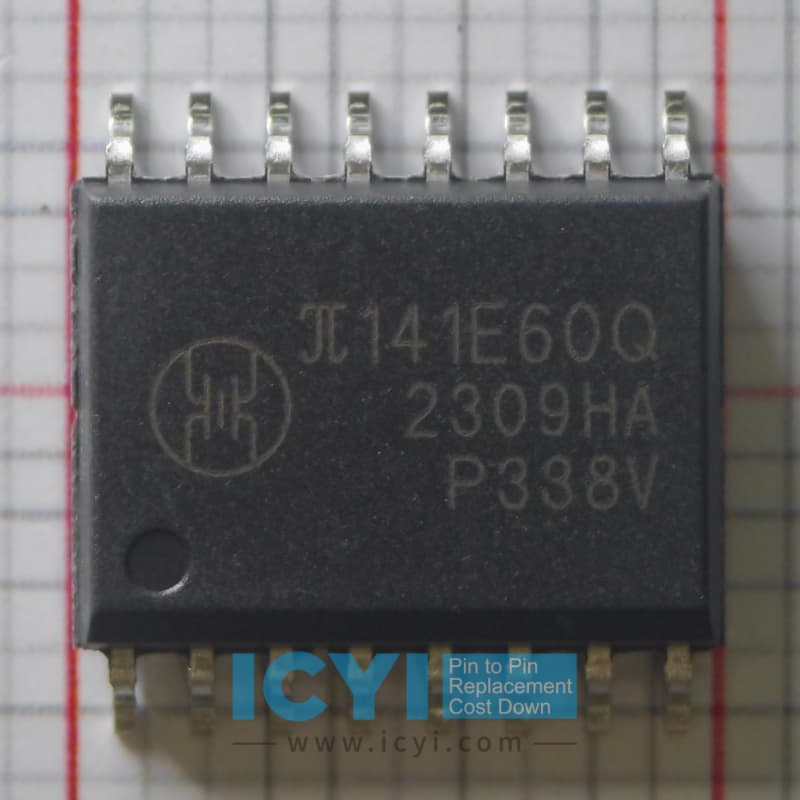

π141E60Q 200Mbps Quad-Channel Digital Isolators

Comparison of π141E60Q with ISO7841FDWR, ISO6741FQDWRQ1, ISO7341FCQDWQ1, ISO7341FCQDWRQ1, ISO7741FQDWQ1, and ISO7741FQDWRQ1

The π141E60Q is a high-performance isolation device designed to provide superior signal isolation, reliability, and efficiency in a variety of applications. This comparison aims to highlight the advantages of the π141E60Q over a range of competitive products, including the ISO7841FDWR, ISO6741FQDWRQ1, ISO7341FCQDWQ1, ISO7341FCQDWRQ1, ISO7741FQDWQ1, and ISO7741FQDWRQ1. The key differentiators include isolation voltage, power efficiency, integration, and thermal performance.

Isolation Voltage and Performance

The π141E60Q offers a high isolation voltage of up to 6.0 kV, ensuring robust protection in high-voltage environments. This higher isolation rating provides enhanced safety and reliability, especially for applications in industrial control systems, automotive, and communications.

In comparison, the ISO7841FDWR provides isolation up to 5.0 kV, which, while sufficient for many applications, does not match the superior 6.0 kV isolation of the π141E60Q. Similarly, the ISO6741FQDWRQ1 and ISO7341FCQDWQ1 offer 5.0 kV isolation but fall short in providing the same level of protection under extreme voltage conditions as the π141E60Q. The ISO7341FCQDWRQ1 and ISO7741FQDWQ1 also provide 5.0 kV isolation, making them less suitable for high-voltage environments compared to the π141E60Q.

Power Consumption and Efficiency

The π141E60Q is optimized for low-power consumption, making it ideal for energy-efficient designs. It minimizes energy loss while maintaining high performance, a critical factor in battery-powered applications and systems where power efficiency is a key concern.

In comparison, the ISO7841FDWR, ISO6741FQDWRQ1, and other competitors, such as the ISO7341FCQDWQ1 and ISO7741FQDWQ1, generally consume more power, especially when multiple channels are used. This higher power consumption can limit the efficiency of systems where power is a critical factor, such as in portable devices or energy-conscious industrial applications. The π141E60Q offers a distinct advantage in low-power designs, delivering optimal efficiency without compromising performance.

Data Rate and Speed Performance

The π141E60Q supports high-speed data transmission, making it suitable for applications requiring fast communication, such as industrial automation, communications, and data networking. It handles data rates of up to 100 Mbps, ensuring fast and reliable data transfer.

On the other hand, the ISO7841FDWR and ISO6741FQDWRQ1 support data rates up to 25 Mbps, which is adequate for some applications but not optimal for high-speed systems. The ISO7341FCQDWQ1, ISO7341FCQDWRQ1, and ISO7741FQDWQ1 have similar data rate limitations, generally supporting data rates of up to 25 Mbps. The π141E60Q excels in environments where high-speed communication is necessary, giving it a clear advantage over competitors in high-performance systems.

Temperature Range and Reliability

The π141E60Q operates in a wide temperature range from -40°C to +125°C, ensuring reliable performance in extreme environmental conditions. This makes it suitable for automotive, industrial, and other applications where temperature stability is critical.

While the ISO7841FDWR and ISO6741FQDWRQ1 also support temperatures in the -40°C to +125°C range, some of the other competitors, such as the ISO7341FCQDWQ1, ISO7341FCQDWRQ1, and ISO7741FQDWQ1, have a more limited temperature range, typically from -40°C to +105°C. This narrower range may limit their performance in applications with strict temperature requirements, whereas the π141E60Q offers a broader operational window and increased reliability across a wider range of conditions.

Package and Integration Flexibility

The π141E60Q is available in a compact and highly integrated package, providing space-saving benefits without compromising performance. Its small form factor makes it ideal for applications where board space is limited, such as in portable devices or dense circuit designs.

The ISO7841FDWR, ISO6741FQDWRQ1, and other competitors are available in similar packages, but the π141E60Q offers higher integration, reducing the need for multiple components and simplifying system designs. The integration of multiple isolation channels in a single device further reduces the number of components, which can result in lower overall system cost and improved reliability. The π141E60Q thus offers greater flexibility in system design, especially for space-constrained and high-performance applications.

Conclusion

While the ISO7841FDWR, ISO6741FQDWRQ1, ISO7341FCQDWQ1, ISO7341FCQDWRQ1, ISO7741FQDWQ1, and ISO7741FQDWRQ1 all offer solid performance in isolation and signal integrity, the π141E60Q provides distinct advantages, including superior isolation voltage, lower power consumption, higher data rate capabilities, wider temperature range, and better integration. These advantages make the π141E60Q the ideal choice for applications requiring high-performance, reliable isolation with low power consumption and enhanced system integration.
