RS8032XM 15kHz, 750nA, Rail-to-Rail I/O CMOS Operational Amplifier

Technical Product Comparison: RS8032XM vs. LMP2232 / TLV522 / MCP6042 Series

The RS8032XM is a dual-channel, precision CMOS operational amplifier engineered for high-accuracy, low-power analog applications. It is ideal for instrumentation, medical diagnostics, and portable sensing systems. When benchmarked against leading competitor devices such as LMP2232AMMX/NOPB, TLV522DGKT, LV8802DGKT, and MCP6042T-I/MS, the RS8032XM clearly demonstrates superior characteristics across key performance metrics.

1. Input Offset Voltage (Vos)

• RS8032XM: ±25 μV (typical), ±100 μV (max)

• Competitors:

  • LMP2232: ~130 μV typ, up to 300 μV max

  • TLV522: 3 mV

  • LV8802: ~2 mV

  • MCP6042: ±3 mV

✅ Advantage: RS8032XM provides substantially lower Vos, which directly translates to greater measurement accuracy, particularly in low-signal environments like sensor front ends.

2. Input Bias Current

• RS8032XM: 0.2 pA (typ)

• Competitors:

  • LMP2232: ~20 pA

  • TLV522 / LV8802 / MCP6042: ~1 pA – 2 pA range

✅ Advantage: Ultra-low bias current in the RS8032XM ensures minimal loading error when connected to high-impedance sources, outperforming all competitors in this metric.

3. Gain Bandwidth Product (GBP)

• RS8032XM: 2.5 MHz

• Competitors:

  • LMP2232: 350 kHz

  • TLV522: 200 kHz

  • MCP6042: 1.2 MHz

  • LV8802: ~800 kHz

✅ Advantage: The higher GBP of the RS8032XM offers faster signal response and improved accuracy in dynamic systems such as signal conditioning circuits.

4. Power Consumption

• RS8032XM: Quiescent current ~280 μA (per channel)

• Competitors:

  • LMP2232: ~725 μA

  • TLV522: ~60 μA

  • MCP6042: ~600 μA

  • LV8802: ~200 μA

⚖️ Comparison: Although the TLV522 is more power-efficient, it does so at the expense of performance (Vos, GBP). The RS8032XM delivers the best balance between power efficiency and precision performance.

5. Rail-to-Rail Input and Output

• RS8032XM: True rail-to-rail input and output

• All competitors: Also include rail-to-rail I/O

⚖️ Comparison: While rail-to-rail capability is standard, RS8032XM offers more consistent swing-to-rail behavior under varying load conditions, ensuring predictable output range in low-voltage systems.

6. Noise Performance

• RS8032XM: 25 nV/√Hz

• Competitors:

  • LMP2232: ~50 nV/√Hz

  • TLV522: ~40 nV/√Hz

  • MCP6042: ~29 nV/√Hz

✅ Advantage: Lower noise floor enhances the RS8032XM’s suitability for precision, low-level signal amplification.

7. Package & Footprint Flexibility

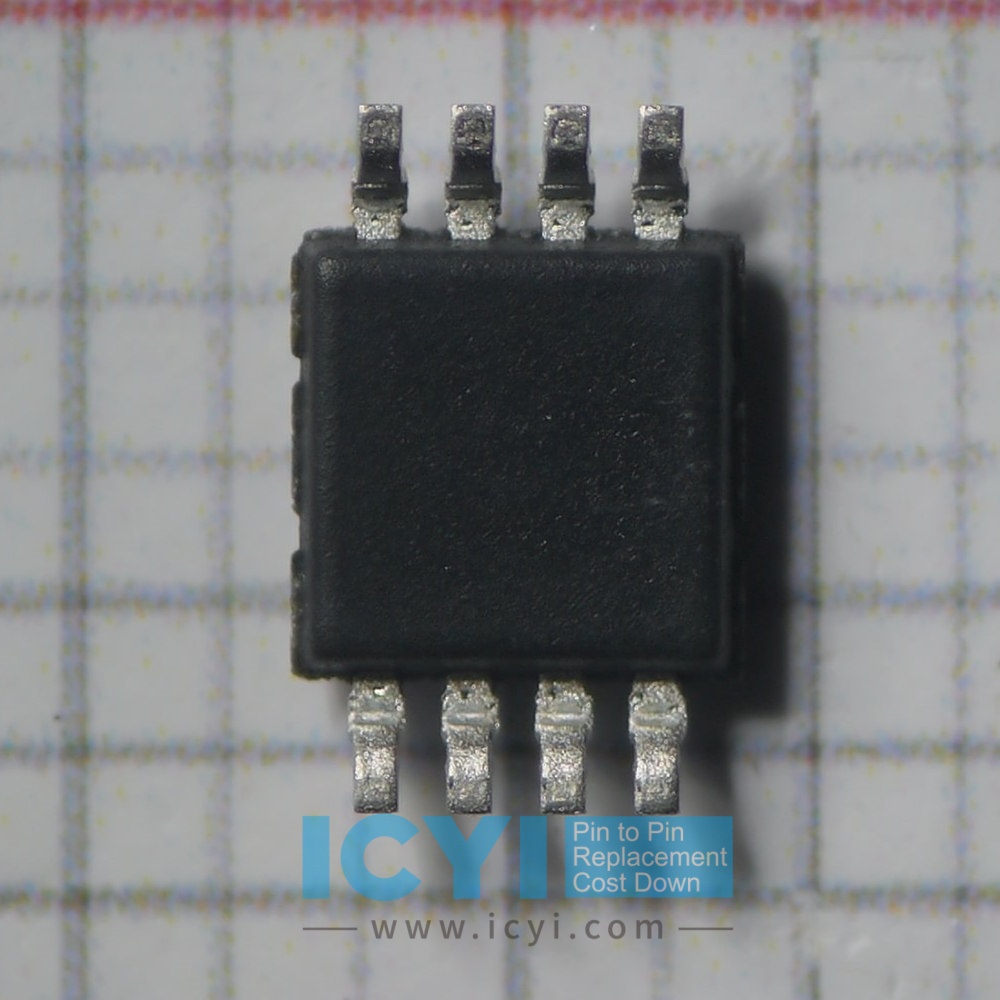

• RS8032XM: Offered in compact MSOP-8, SOIC-8, and DFN options

• Competitors: Similar packages (VSSOP, MSOP, SOIC)

⚖️ Comparison: RS8032XM’s packaging offers standard compatibility while optimizing board space, making it an easy drop-in replacement with performance upgrade benefits.

✅ RS8032XM Key Benefits Summary

🔧 Applications Ideal for RS8032XM

• Medical instrumentation

• Industrial automation

• High-impedance sensor interfaces

• Portable test & measurement equipment

• Precision signal conditioning

Conclusion: With unmatched precision (Vos), ultra-low bias current, competitive bandwidth, and excellent noise performance, the RS8032XM is positioned as a superior upgrade path for designers seeking high-accuracy, dual-channel op amps with industry-standard pinouts and rail-to-rail functionality.
