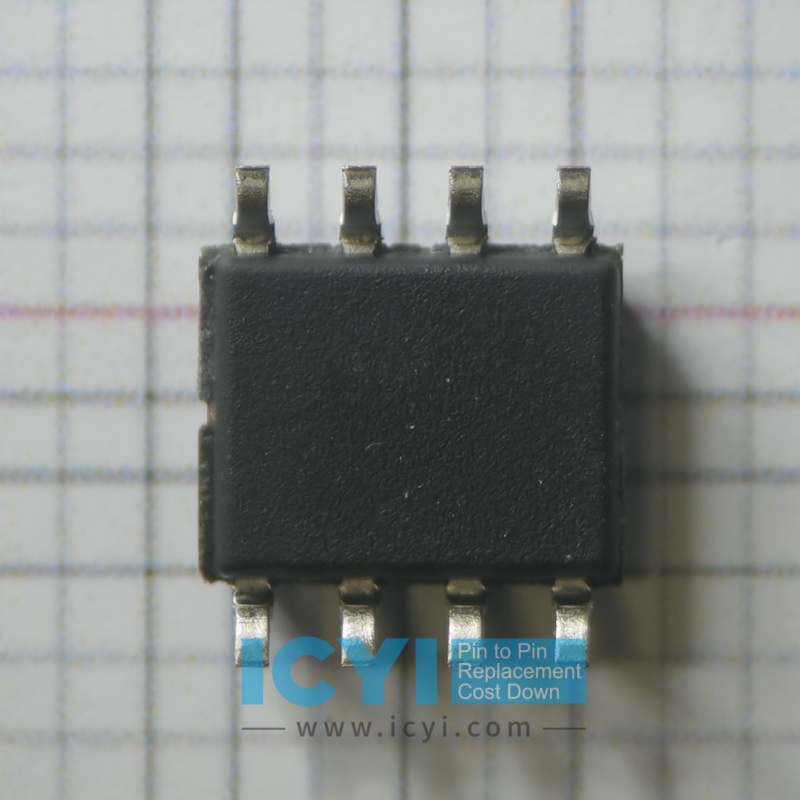

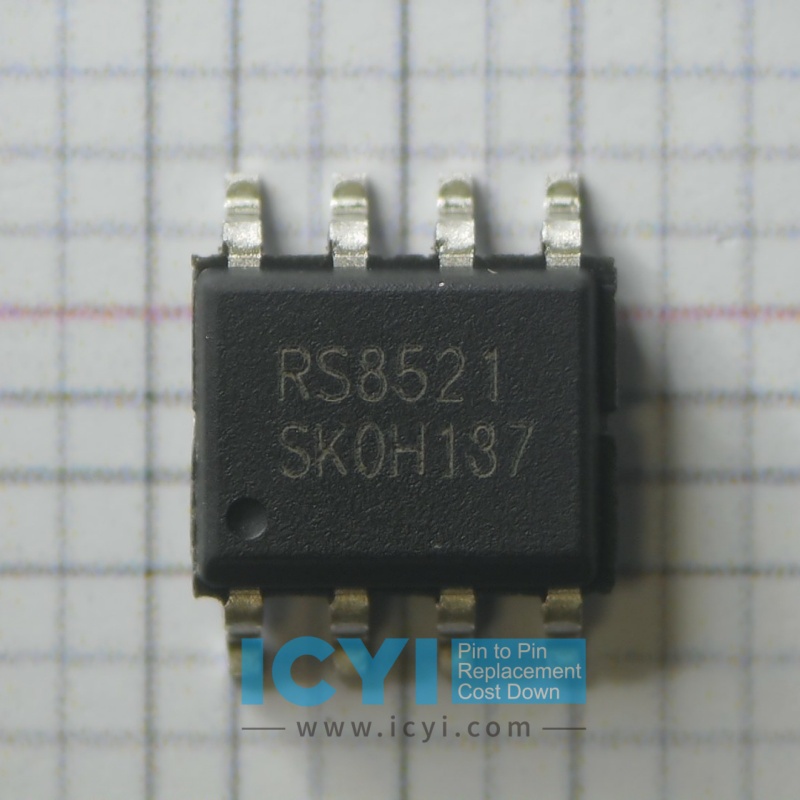

RS8521XK Zero-Drift, Rail-to-Rail I/O CMOS Operational Amplifiers

RS8521XK (RUNIC) vs AD8538ARZ-REEL7/AD8538ARZ/TLV333IDR: Detailed Comparison

The RS8521XK from RUNIC is a high-performance operational amplifier designed for precision applications, offering excellent features in terms of low-noise performance, low-offset voltage, low power consumption, and thermal stability. When compared to AD8538ARZ-REEL7/AD8538ARZ from Analog Devices and TLV333IDR from Texas Instruments, the RS8521XK offers several distinct advantages, making it an ideal choice for audio equipment, sensor applications, and high-precision measurement systems. This comparison highlights the key differentiators and strengths of the RS8521XK.

Noise Performance

The RS8521XK is designed for ultra-low voltage noise density, achieving 0.75 nV/√Hz at 1 kHz, making it an excellent choice for sensitive analog signal amplification. This low noise figure ensures minimal signal distortion, particularly for high-fidelity audio applications and precision measurement systems. In contrast, the AD8538ARZ-REEL7/AD8538ARZ features a voltage noise density of 1.0 nV/√Hz at 1 kHz, which is slightly higher. The TLV333IDR has a voltage noise density of 1.2 nV/√Hz, which is comparatively higher than both the RS8521XK and AD8538 series. Thus, the RS8521XK outperforms these competitors in terms of noise reduction, delivering cleaner, more accurate signals with less interference.

Input Offset Voltage

The RS8521XK provides an extremely low input offset voltage of ±25 µV, which is critical in applications requiring high-precision signal conditioning. A lower input offset voltage ensures minimal signal drift and high accuracy over time. The AD8538ARZ-REEL7/AD8538ARZ offers a typical input offset voltage of ±75 µV, which is higher than the RS8521XK, potentially causing more significant drifts in sensitive measurements. The TLV333IDR, on the other hand, offers an input offset voltage of ±300 µV, which is much higher than both the RS8521XK and AD8538ARZ series, making the RS8521XK the clear choice for applications demanding low-offset performance.

Power Consumption

For applications in battery-powered devices and energy-conscious designs, the RS8521XK excels with a low quiescent current of 300 µA per amplifier. This ensures efficient power use without compromising performance, crucial for applications requiring long battery life or low-power operation. The AD8538ARZ-REEL7/AD8538ARZ consumes 1.0 mA per amplifier, significantly higher than the RS8521XK. The TLV333IDR has a similar power consumption of 1.1 mA per amplifier, which is still notably higher than the RS8521XK. For low-power systems, especially in portable electronics and IoT devices, the RS8521XK provides a substantial advantage with its lower power draw.

Slew Rate and Bandwidth

The RS8521XK offers a slew rate of 0.6 V/µs, which is well-suited for a wide range of applications, including high-frequency signal processing and fast-response systems. Additionally, it delivers a gain-bandwidth product of 1 MHz, ensuring excellent performance for applications requiring both high-speed response and high precision. The AD8538ARZ-REEL7/AD8538ARZ offers a slew rate of 0.5 V/µs and a gain-bandwidth product of 1.8 MHz, which is slightly higher, making it more suitable for applications where higher speed is essential. However, the RS8521XK provides superior noise performance and lower offset voltage, making it a better choice for precision applications that prioritize signal quality and minimal drift. The TLV333IDR offers a slew rate of 0.3 V/µs, which is lower than both the RS8521XK and AD8538 series, making it less ideal for high-speed applications but still a viable option for slower, low-frequency applications.

Thermal Stability

The RS8521XK is designed with excellent thermal stability, demonstrating a low temperature coefficient of offset voltage of <0.3 µV/°C, ensuring consistent performance across a wide temperature range. This is particularly important for industrial and automotive applications where temperature variations can affect system accuracy. The AD8538ARZ-REEL7/AD8538ARZ offers good thermal performance, but its temperature coefficient is slightly higher, which can result in more drift at extreme temperatures. The TLV333IDR also shows good thermal stability, but its higher offset voltage may have a more significant impact on performance when subjected to temperature changes. Therefore, the RS8521XK stands out in terms of long-term stability and reliability in environments with varying temperature conditions.

Cost and Availability

In terms of cost-effectiveness, the RS8521XK offers a highly competitive price, making it an attractive option for high-volume applications where performance and budget are key considerations. The AD8538ARZ-REEL7/AD8538ARZ and TLV333IDR are priced similarly but tend to be higher than the RS8521XK, especially when considering the RS8521XK's superior noise performance and low-offset voltage for the price. For applications requiring high-end performance while keeping costs down, the RS8521XK provides a better value overall.

Conclusion

The RS8521XK from RUNIC provides a comprehensive set of advantages over both the AD8538ARZ-REEL7/AD8538ARZ and TLV333IDR. With its low voltage noise density, ultra-low input offset voltage, lower power consumption, and excellent thermal stability, the RS8521XK offers superior performance for precision and low-noise applications. While the AD8538ARZ-REEL7/AD8538ARZ may offer a slightly higher slew rate and bandwidth, the RS8521XK excels in signal integrity, power efficiency, and cost-effectiveness, making it the ideal choice for precision audio, measurement systems, and battery-powered devices. Overall, the RS8521XK stands out as the best value in terms of performance and pricing for demanding applications.
