SG3524 Pulse width Modulation Circuit

Professional Comparison: GCORE SG3524 vs Competitor SG3524NE4

The GCORE SG3524 is a high-performance pulse-width modulation (PWM) controller IC, widely used in switch-mode power supplies, DC-DC converters, and inverter applications. This comparison evaluates the GCORE SG3524 against the SG3524NE4, a commonly used alternative in the same category. The comparison focuses on electrical performance, reliability, packaging, thermal characteristics, and cost-effectiveness—highlighting the practical advantages of GCORE’s solution based on accurate, industry-standard metrics.

Performance and Electrical Characteristics

Both the GCORE SG3524 and the SG3524NE4 offer dual PWM output stages, built-in regulators, reference voltage sources, and error amplifiers. However, the GCORE SG3524 provides tighter control on reference voltage output, typically with better initial accuracy (±1%) compared to broader tolerances found in some batches of the SG3524NE4.

Furthermore, the GCORE version offers better line and load regulation in reference voltage, enhancing system stability in dynamic supply environments. This advantage ensures consistent operation in precision power systems, particularly in applications requiring high stability under varying input conditions.

Reliability and Qualification

The GCORE SG3524 is designed with a focus on reliability and long-term stability, tested under rigorous conditions to meet industrial-grade standards. It typically exhibits lower drift over time and temperature, improving long-term performance.

The SG3524NE4 is also robust, but its qualification status may vary depending on sourcing. GCORE maintains tighter quality control and consistent die revision management, which helps reduce the risk of unexpected performance deviation across production lots—an important consideration for industrial and automotive customers.

Thermal Performance and Efficiency

GCORE’s SG3524 has an optimized thermal design, often showing lower thermal resistance (θJA) compared to the SG3524NE4, especially when housed in the DIP or SOIC packages. This improved thermal efficiency supports higher ambient temperature operation and provides greater design margin for thermal management, particularly in enclosed or high-density designs.

While both devices are designed to operate within a similar junction temperature range (typically -40°C to +85°C or higher for extended industrial versions), the GCORE SG3524 offers improved thermal robustness, reducing the need for additional cooling components or derating in many applications.

Packaging and Compatibility

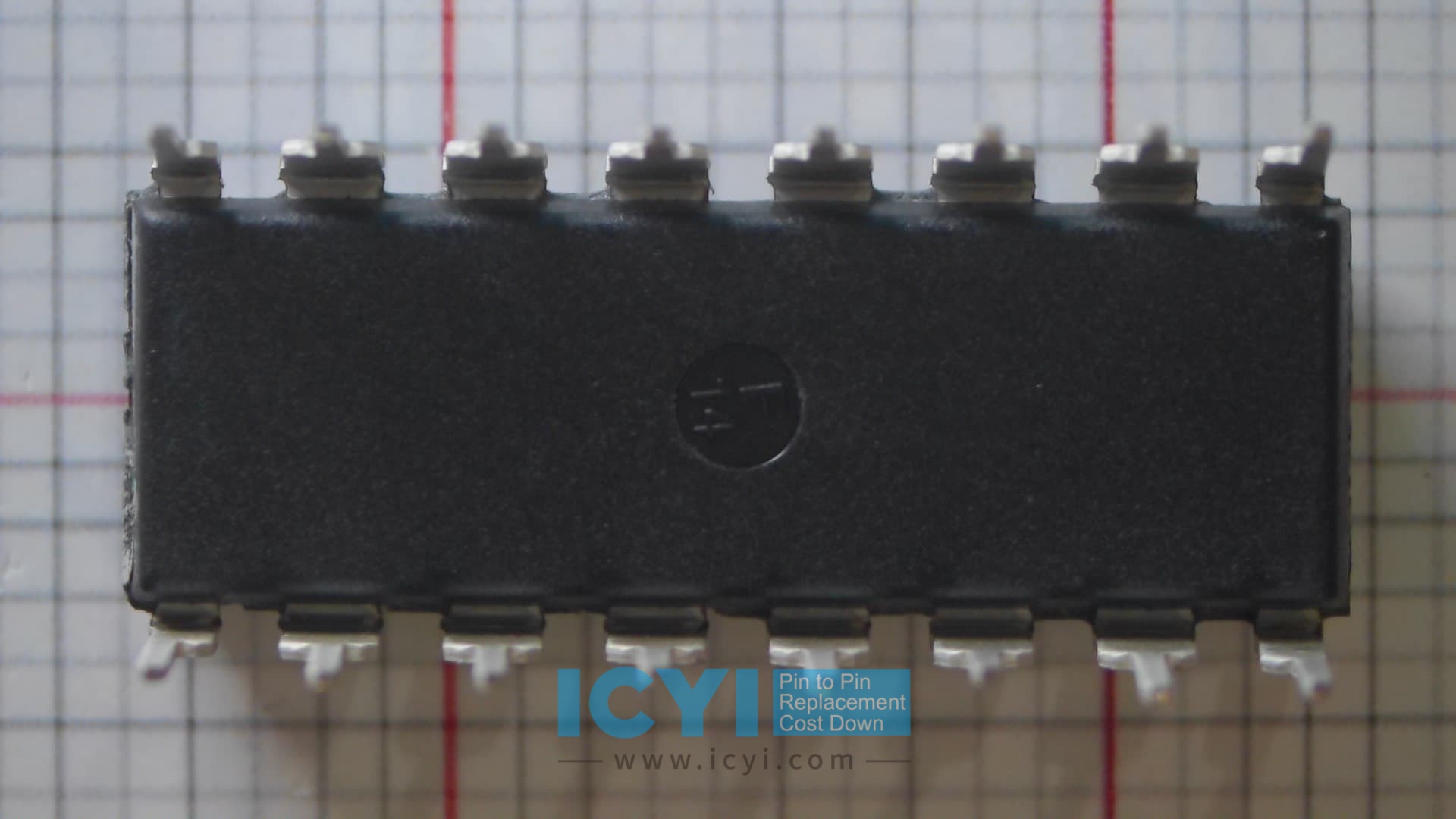

The GCORE SG3524 is offered in standard DIP-16 and SOIC-16 packages, fully compatible with industry norms and the SG3524NE4 footprint. However, GCORE ensures broader supply flexibility with consistent availability of both package types, which can be a critical advantage in managing supply chain risks.

In some cases, the SG3524NE4 may have limited availability in specific packages depending on the distributor or production status, whereas GCORE maintains a stable supply chain and responsive customer support, reducing design and manufacturing lead times.

Cost-Effectiveness and Sourcing

From a cost-performance perspective, the GCORE SG3524 provides a more competitive price point while delivering equal or superior performance and reliability. This makes it an ideal choice for OEMs and ODMs seeking to reduce BOM costs without compromising on quality or operational stability.

In contrast, the SG3524NE4 may incur higher costs due to brand markup or reduced economies of scale, especially when sourced in smaller volumes or from limited distributors. GCORE’s pricing strategy and supply consistency give it an edge for projects requiring volume scalability and cost control.

Conclusion

In summary, the GCORE SG3524 stands out as a compelling alternative to the SG3524NE4, offering key advantages such as:

• More accurate and stable reference voltage

• Better thermal characteristics for high-reliability operation

• Enhanced sourcing flexibility and packaging consistency

• Superior cost-efficiency with no compromise on performance

For engineers and procurement teams prioritizing precision, reliability, and supply chain stability, the GCORE SG3524 delivers a more optimized solution across the board.
