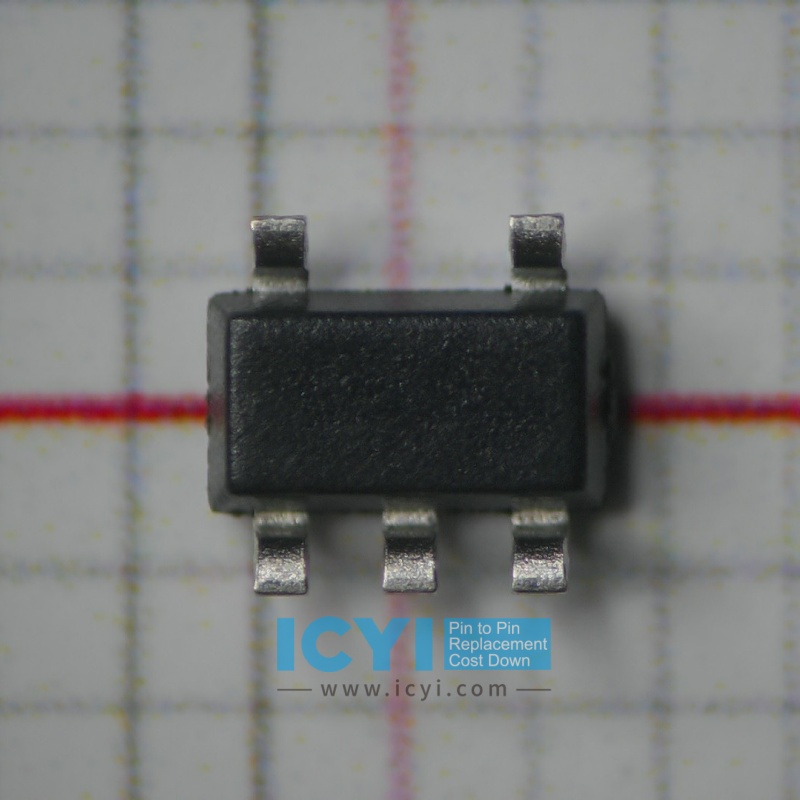

SGM2036-2.5YN5G/TR 300mA, Low Power and Low Dropout RF Linear Regulator

Overview of SGM2036-2.5YN5G/TR

The SGM2036-2.5YN5G/TR is a state-of-the-art low-dropout (LDO) voltage regulator from SCT Semiconductor’s SGMICRO product line. This device is designed to deliver a stable 2.5V output with a maximum output current capability of 500mA, making it an excellent choice for powering sensitive analog and digital devices. With its low quiescent current and high power efficiency, the SGM2036 is ideal for applications demanding high performance and minimal power consumption.

Comparison with TPS79325DBVR

When comparing the SGM2036-2.5YN5G/TR to Texas Instruments' TPS79325DBVR, both devices target similar applications but exhibit notable differences in performance. The SGM2036 features a lower dropout voltage, rated at just 150mV at full load, which allows it to maintain output regulation when input voltages are very close to the output voltage. In contrast, the TPS79325DBVR has a higher dropout voltage of approximately 200mV, which may limit its performance in certain low-voltage environments.

Quiescent Current Efficiency

Another significant aspect where the SGM2036-2.5YN5G/TR surpasses the TPS79325DBVR is in quiescent current efficiency. The SGM2036 boasts an exceptionally low quiescent current of only 1µA, further enhancing its suitability for battery-operated devices. This represents a substantial advantage over the TPS79325DBVR, which has a quiescent current of around 4.5µA. The lower quiescent current translates to prolonged battery life and improved energy efficiency, especially in portable applications.

Thermal Performance and Safety Features

Thermal performance and safety features are critical considerations for LDO regulators. The SGM2036-2.5YN5G/TR incorporates effective thermal shutdown mechanisms designed to activate at lower junction temperatures, providing immediate protection against overheating conditions. The TPS79325DBVR also features thermal protection; however, the SGM2036's more aggressive approach to temperature management may result in increased reliability in high-stress applications.

Output Noise Performance

Output noise is a vital factor for many sensitive electronic applications. The SGM2036-2.5YN5G/TR generally offers lower output noise, with reported levels around 30µVRMS in the frequency range of 10Hz to 100kHz. This performance is advantageous for applications requiring high precision, such as RF and audio systems. While the TPS79325DBVR is competent, its output noise figures are typically higher, which may affect performance in noise-sensitive scenarios.

Conclusion

In conclusion, while both the SGM2036-2.5YN5G/TR and TPS79325DBVR serve as effective solutions for low-dropout voltage regulation, the SGM2036 demonstrates several advantages that position it as a superior choice. With lower dropout voltage, reduced quiescent current, enhanced thermal protection, and better output noise performance, the SGM2036-2.5YN5G/TR stands out as a leading option for designers seeking reliability and efficiency in their electronic applications. SCT Semiconductor's commitment to innovation ensures that the SGM2036 remains at the forefront of high-performance voltage regulation solutions.
