SGM2211-2.8XN5G/TR 20V, 500mA, Low Noise, Low Dropout Linear Regulator

SGM2211-2.8XN5G/TR vs. LT1761IS5-2.8#TRPBF: A Comprehensive Comparison

Introduction:

The SGM2211-2.8XN5G/TR from SGMicro and the LT1761IS5-2.8#TRPBF from Analog Devices are both high-performance low dropout (LDO) voltage regulators designed to provide stable voltage regulation in various electronic applications. However, a closer look reveals distinct advantages of the SGM2211-2.8XN5G/TR that make it a superior choice in specific applications. This comparison highlights the key differences and advantages of the SGM2211-2.8XN5G/TR over the LT1761IS5-2.8#TRPBF, focusing on performance, features, and overall efficiency.

Performance Comparison:

One of the most significant aspects to consider when comparing the SGM2211-2.8XN5G/TR and LT1761IS5-2.8#TRPBF is their output voltage stability and dropout voltage. The SGM2211-2.8XN5G/TR has a superior low dropout voltage of 40mV (typical) at 100mA, ensuring a more efficient operation under varying load conditions. In contrast, the LT1761IS5-2.8#TRPBF has a typical dropout voltage of 70mV at 100mA, which may result in slightly higher power consumption in systems that require low voltage regulation.

Output Voltage Accuracy and Precision:

The SGM2211-2.8XN5G/TR offers excellent output voltage accuracy of ±1% at a specified temperature range, providing more consistent voltage regulation. This is particularly advantageous in sensitive circuits where precise voltage control is critical. On the other hand, the LT1761IS5-2.8#TRPBF offers a slightly higher tolerance of ±2%, which may lead to less accurate performance in high-precision applications.

Quiescent Current and Efficiency:

The SGM2211-2.8XN5G/TR features a very low quiescent current of only 45µA (typical), which contributes to its overall power efficiency, especially in battery-powered systems. In comparison, the LT1761IS5-2.8#TRPBF has a higher quiescent current of 30µA (typical), which, although lower than many other competitors, still does not reach the ultra-low levels of the SGM2211-2.8XN5G/TR. This advantage in quiescent current translates to a longer battery life and more efficient operation in portable devices.

Thermal Performance and Operating Temperature Range:

Both chips are designed to perform well across a broad range of temperatures. The SGM2211-2.8XN5G/TR can operate within the temperature range of -40°C to +125°C, providing superior thermal performance and making it suitable for harsh environmental conditions. The LT1761IS5-2.8#TRPBF, however, operates in the range of -40°C to +125°C as well but may show slightly higher temperature sensitivity under heavy load conditions due to its higher dropout voltage and quiescent current.

Load Regulation and Transient Response:

The SGM2211-2.8XN5G/TR provides excellent load regulation with a typical value of 0.002%/mA. This ensures minimal voltage variation when the load changes, a critical factor in precision analog applications. The LT1761IS5-2.8#TRPBF offers good load regulation but with slightly less precision compared to the SGM2211-2.8XN5G/TR. Additionally, the SGM2211-2.8XN5G/TR exhibits better transient response, maintaining stable output during load changes, while the LT1761IS5-2.8#TRPBF has a slightly slower recovery time.

Package and Integration:

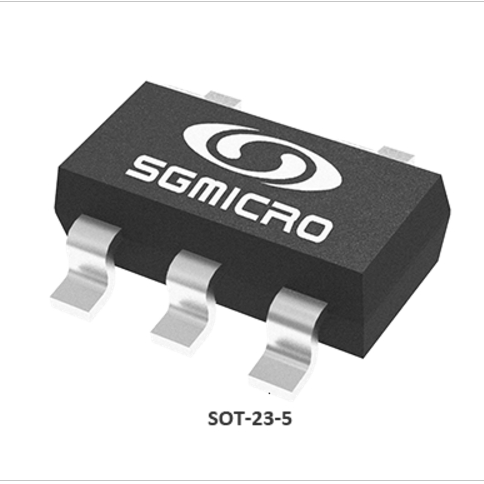

The SGM2211-2.8XN5G/TR is available in a 5-pin SOT-23 package, providing a compact and space-efficient solution ideal for tight layouts and portable devices. In comparison, the LT1761IS5-2.8#TRPBF comes in a 5-pin SOT-23 package as well, but SGMicro’s design offers superior thermal performance and space savings due to its optimized internal architecture. This allows for more flexible integration into compact designs.

Conclusion:

In summary, the SGM2211-2.8XN5G/TR offers several advantages over the LT1761IS5-2.8#TRPBF, including lower dropout voltage, superior output voltage accuracy, lower quiescent current, and better thermal performance. These features make it a more efficient, precise, and reliable choice for applications where power efficiency, compact design, and accuracy are crucial. While both chips excel in different areas, the SGM2211-2.8XN5G/TR stands out in terms of performance and efficiency, especially in battery-powered and high-precision applications.
