SIT1050QT 5V, ± 40V, 1Mbps high-speed CAN bus transceiver

Electrical Performance and Operating Range

• SIT1050QT: The SIT1050QT operates with a wide voltage range of 4.75V to 5.25V, which is optimal for both automotive and industrial applications. It is specifically designed to work in harsh environments, ensuring high robustness and stable performance even in electrically noisy conditions. The SIT1050QT offers excellent low power consumption in both standby and operating modes, making it ideal for battery-operated devices and systems with low power budgets.

• SN65HVD1050QDRQ1: The SN65HVD1050QDRQ1 also operates within the 4.75V to 5.25V range but is relatively less efficient in power management when compared to the SIT1050QT. Although it offers a similar voltage range, the SIT1050QT’s lower standby current consumption provides a distinct advantage in power-sensitive applications.

Data Transmission Speed and Signal Integrity

• SIT1050QT: The SIT1050QT supports data rates of up to 1 Mbps, providing reliable and fast communication for both high-speed CAN applications and more demanding systems. It uses advanced signal conditioning technology to ensure high integrity of signals, which reduces electromagnetic interference (EMI) and signal distortion. This feature enhances the overall performance of the transceiver in environments with high levels of noise, ensuring that communication remains robust over longer distances.

• SN65HVD1050QDRQ1: The SN65HVD1050QDRQ1 is capable of supporting 1 Mbps data rates as well, but its signal integrity is generally weaker than that of the SIT1050QT. This can lead to more frequent retransmissions and occasional errors, particularly in noisy environments. The SIT1050QT's enhanced signal conditioning capabilities give it an edge in signal quality.

Automotive Compatibility and Robustness

• SIT1050QT: The SIT1050QT is specifically designed for automotive-grade applications, and it complies with AEC-Q100 standards for automotive reliability. It is able to operate in extreme temperatures, ranging from -40°C to +125°C, which makes it suitable for under-the-hood automotive applications. In addition, the SIT1050QT is protected against electrostatic discharge (ESD) and other transient electrical faults, ensuring it performs reliably in automotive systems with long lifespans.

• SN65HVD1050QDRQ1: The SN65HVD1050QDRQ1 is also rated for automotive applications and complies with AEC-Q100. However, while it supports the same temperature range of -40°C to +125°C, the SIT1050QT has superior ESD protection capabilities, which helps improve its reliability and reduces the risk of failure during long-term usage in harsh automotive environments.

Integration and Package Options

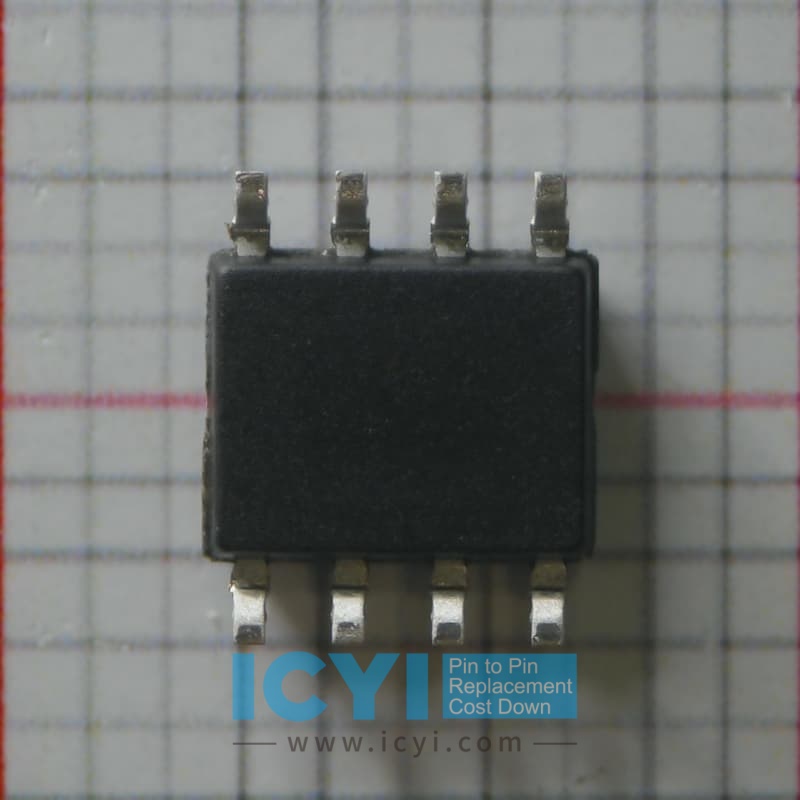

• SIT1050QT: The SIT1050QT comes in a compact 8-pin SOIC package, making it an excellent choice for designs where board space is limited. Additionally, it supports high-density integration, which minimizes the number of external components required for system design. The SIT1050QT's small footprint and low pin count are advantageous in automotive and industrial designs where space and efficiency are critical.

• SN65HVD1050QDRQ1: The SN65HVD1050QDRQ1 is also available in an 8-pin SOIC package. However, its overall package and footprint are slightly larger compared to the SIT1050QT, which may impact space-constrained designs. The SIT1050QT's more compact design gives it an advantage in applications requiring smaller circuit boards and higher component density.

Protection Features

• SIT1050QT: The SIT1050QT features several built-in protection mechanisms, such as over-voltage protection, short-circuit protection, and thermal shutdown, which enhance its resilience and protect the device and connected circuits from damage during operation. Additionally, the SIT1050QT includes high-level ESD protection, which safeguards the device from damage caused by electrostatic discharges in industrial environments or automotive systems.

• SN65HVD1050QDRQ1: The SN65HVD1050QDRQ1 also includes over-voltage and short-circuit protection features but lacks some of the advanced protection mechanisms, such as thermal shutdown and the extended ESD protection found in the SIT1050QT. As a result, the SIT1050QT offers better overall protection, especially in systems where harsh electrical environments are common.

Power Consumption and Efficiency

• SIT1050QT: The SIT1050QT excels in terms of low power consumption, drawing less current during standby and operating modes compared to the SN65HVD1050QDRQ1. This makes it particularly suitable for battery-powered devices and other power-sensitive applications. The SIT1050QT also features a low-power idle mode, which helps reduce overall power consumption when the device is not actively transmitting data.

• SN65HVD1050QDRQ1: The SN65HVD1050QDRQ1 is relatively efficient but consumes slightly more power than the SIT1050QT in standby and active operation. The SIT1050QT's lower current draw in idle states makes it more energy-efficient, particularly in systems that require long battery life or continuous operation.

Cost-Effectiveness

• SIT1050QT: The SIT1050QT offers a cost-effective solution by incorporating advanced features such as low power consumption, high ESD protection, and reliable signal integrity into a compact design. Its integrated features reduce the need for additional components, making it an economical choice for systems with budget constraints, especially in automotive and industrial applications.

• SN65HVD1050QDRQ1: The SN65HVD1050QDRQ1 is similarly priced but often requires additional external components for optimized signal integrity and thermal management, which can increase the overall system cost. The SIT1050QT provides a higher value in terms of reliability and performance at a similar price point, giving it a competitive edge in cost-sensitive applications.

Key Advantages of SIT1050QT

1. Enhanced Signal Integrity: The SIT1050QT’s superior signal conditioning provides better performance in noisy environments, ensuring reliable communication with fewer retransmissions.

2. Superior Protection: With thermal shutdown, short-circuit protection, and high ESD protection, the SIT1050QT ensures higher reliability in harsh industrial and automotive environments.

3. Lower Power Consumption: The SIT1050QT is more power-efficient, offering lower standby current and idle power consumption, making it ideal for battery-powered applications.

4. Cost-Effective Solution: By integrating key features in a compact package, the SIT1050QT reduces the need for additional components, providing cost savings without compromising on performance.

5. Compact Design: The SIT1050QT’s smaller footprint and integrated features make it easier to implement in space-constrained applications, reducing the overall design complexity.

Conclusion

In conclusion, the SIT1050QT offers several key advantages over the SN65HVD1050QDRQ1, including superior signal integrity, better protection features, lower power consumption, and cost-effectiveness. These factors make the SIT1050QT a better choice for automotive, industrial, and battery-powered applications that require high reliability, efficiency, and robust performance in challenging environments. The SIT1050QT is designed to provide optimal performance
