HR8825 STEP/DIR Microstepper motor driver chip

Motor Control Performance

• HR8825: The HR8825 is a full-step to microstep driver, capable of driving bipolar stepper motors with a supply voltage range of 8.2V to 45V. It offers a peak output current of 2.5A per phase and features adjustable current control to provide smooth operation with minimal vibration, ensuring high torque and precision even at low speeds. The HR8825 supports half-step, quarter-step, eighth-step, and sixteenth-step microstepping, making it highly flexible for various application requirements.

• DRV8825PWPR: The DRV8825PWPR offers similar features with a voltage range of 8.2V to 45V and a peak output current of 2.5A per phase. Like the HR8825, it supports full-step, half-step, quarter-step, eighth-step, and sixteenth-step microstepping. However, the HR8825 stands out due to its smoother microstepping performance, particularly at low speeds. The HR8825 also incorporates advanced PWM control that minimizes electromagnetic interference (EMI), making it a better choice for noise-sensitive applications.

Efficiency and Power Management

• HR8825: The HR8825 features an efficient current sensing mechanism, allowing for adaptive current regulation that automatically adjusts based on load conditions. This leads to lower power consumption and improved thermal performance. The HR8825 incorporates low R_DS(on) MOSFETs, reducing conduction losses and minimizing the need for additional heat dissipation methods. This efficiency is especially advantageous in battery-powered applications or those requiring longer operational life without overheating.

• DRV8825PWPR: The DRV8825PWPR uses similar low R_DS(on) MOSFETs, but the HR8825’s adaptive current regulation offers a more dynamic solution for managing power efficiently. While the DRV8825PWPR is efficient, its current regulation is less responsive compared to the HR8825, making the latter better suited for applications where minimized power loss and extended battery life are critical.

Integrated Features

• HR8825: The HR8825 boasts several integrated features, including thermal shutdown, overcurrent protection, undervoltage lockout, and overvoltage protection. These features are critical for ensuring safe and reliable operation in a wide range of conditions. The HR8825 also integrates sleep mode functionality, which reduces power consumption during idle periods. Additionally, its adjustable current limit and decay mode control further enhance performance by adapting to different motor types and load conditions.

• DRV8825PWPR: The DRV8825PWPR offers similar thermal shutdown, overcurrent protection, and undervoltage lockout features. However, it lacks some of the more advanced integrated functionalities of the HR8825, such as the sleep mode feature and the adjustable decay modes. These additional features in the HR8825 provide users with greater flexibility and higher efficiency, especially in low-power applications.

Thermal Management

• HR8825: The HR8825 has an excellent thermal performance due to its efficient internal design, which minimizes the need for external heat sinks or cooling methods. The low R_DS(on) MOSFETs, coupled with the adaptive current regulation, allow the HR8825 to handle high currents without excessive heating. Additionally, the HR8825 features thermal shutdown protection that automatically disables the driver when overheating is detected, ensuring the system operates within safe thermal limits.

• DRV8825PWPR: The DRV8825PWPR offers thermal shutdown and overcurrent protection, but it may require additional cooling solutions, such as a heat sink, when operating under high-current conditions. The HR8825, with its better thermal performance and more advanced thermal protection features, can operate more reliably in higher current applications without the need for extra cooling components.

Protection Features

• HR8825: The HR8825 integrates multiple protection mechanisms, including overvoltage, undervoltage, overcurrent, and thermal shutdown. It also features short-circuit protection to safeguard both the driver and motor from damage during electrical faults. These protections, combined with the adjustable current limit feature, make the HR8825 highly reliable for demanding and critical applications.

• DRV8825PWPR: The DRV8825PWPR also includes overvoltage, undervoltage, and overcurrent protection. However, the HR8825 offers a more comprehensive protection suite with the added short-circuit protection and the ability to adjust current limits and decay modes, giving it an edge in safeguarding sensitive systems from potential electrical faults.

Size and Packaging

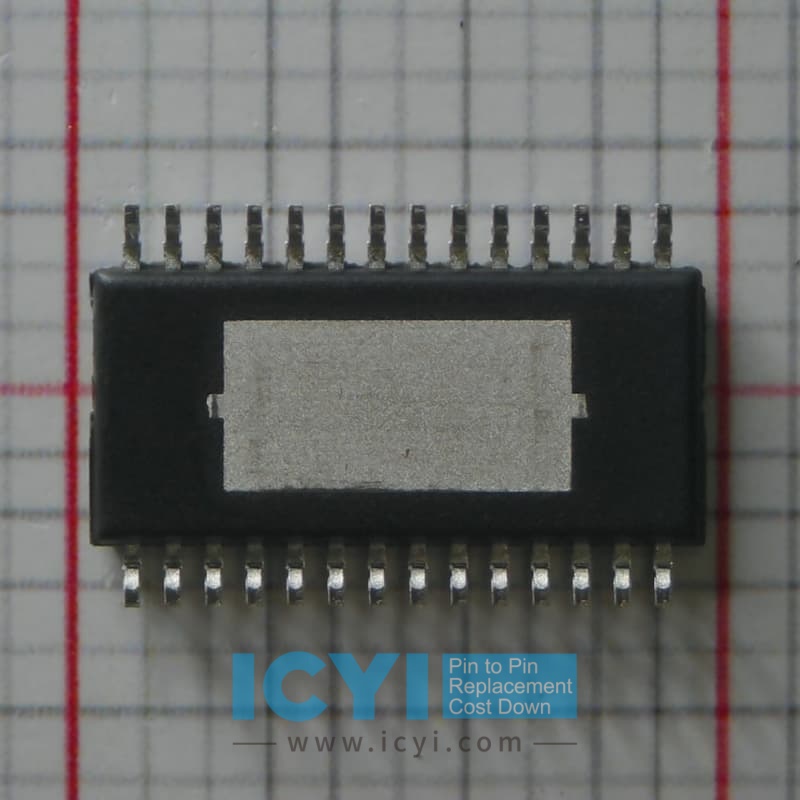

• HR8825: The HR8825 comes in a compact stepper motor driver package with an easy-to-integrate TSSOP-28 or QFN package, allowing for space-saving designs in space-constrained applications. This makes it ideal for embedded systems, industrial automation, and other applications where compactness and high power handling are required.

• DRV8825PWPR: The DRV8825PWPR comes in a similar TSSOP package, but the HR8825 is slightly more compact in some of its options, making it a better choice for designs with limited PCB space. The HR8825's efficient thermal management and compact packaging help designers meet both performance and space requirements effectively.

Cost-Effectiveness

• HR8825: The HR8825 offers a cost-effective solution due to its high integration, reducing the need for additional components such as current sensing resistors or external cooling systems. Its advanced protection features and adaptive current regulation add significant value without increasing the overall cost, making it a high-value solution for motor control applications.

• DRV8825PWPR: The DRV8825PWPR is also competitively priced, but it may require additional components or external solutions for optimal thermal performance and power management. The HR8825, with its integrated features and efficient design, offers better overall value for most applications, particularly when considering total system cost.

Key Advantages of HR8825

1. Superior Thermal Management: The HR8825 offers better thermal performance with lower conduction losses and no need for external cooling solutions, even under high-current conditions.

2. Advanced Protection: The HR8825 comes with an extended set of protection features, including short-circuit protection and adjustable current limit, which provides extra reliability and safety for the driver and the motor.

3. Higher Integration: The HR8825 integrates multiple advanced features, such as adaptive current regulation and sleep mode, reducing the need for external components and simplifying design.

4. Flexibility in Motor Control: The HR8825 offers smoother microstepping performance, especially at low speeds, making it ideal for applications requiring high-precision motor control.

5. Cost-Effective: With its high integration, the HR8825 reduces the overall system cost, providing a better value proposition without compromising on performance or efficiency.

Conclusion

The HR8825 outperforms the DRV8825PWPR in several critical areas, including thermal management, power efficiency, protection features, and integration. With its superior thermal performance, advanced protection suite, and smoother motor control, the HR8825 offers a more reliable and cost-effective solution for applications requiring high-performance motor driving. Whether for 3D printers, CNC machines, or robotics, the HR8825 provides a robust and efficient solution for precise motor control needs.
