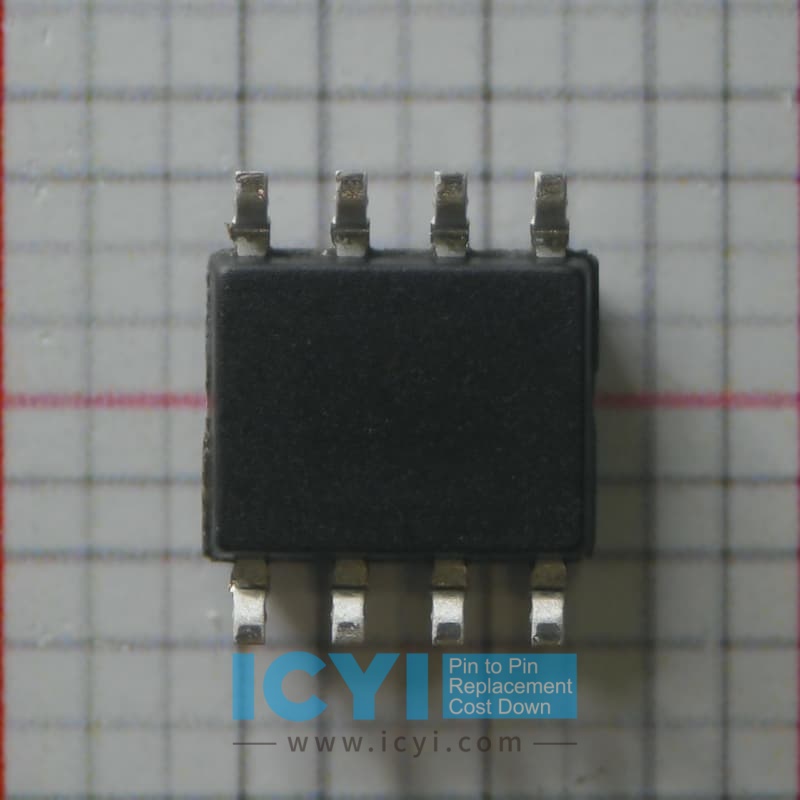

TP2262-SR 36V, 4MHz, 15V/μs Op Amp

TP2262-SR is a Replacement parts of

TL072IDR



TP2262-SR has good quality and a cheaper price, which can effectively help you reduce costs and make your products more competitive. In addition, we have sufficient supply and stable price of this parts, which can greatly help you to avoid problems such as price increases and parts shortages of similar products from other brands.

  • Mfr.Part No. :

    TP2262-SR
  • Manufacturer :

    3peak
  • Description :

    36V, 4MHz, 15V/μs Op Amp
  • Packaging :

    Reel
  • Package :

    SOIC-8
  • Stock :

    in stock
  • Price :

    $0.28-$0.55



TP2262-SR

Price: $0.28-$0.55 $0.5-$0.8
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
TP2262-SR
TL072IDR





Overview of TP2262-SR and TL072IDR

The TP2262-SR from 3peak is a high-performance operational amplifier (op-amp), designed for precision signal amplification in various applications, including audio systems, instrumentation, and sensor interfaces. It offers low noise, high precision, and low power consumption, making it ideal for energy-efficient designs.

The TL072IDR from Texas Instruments is also a low-noise op-amp, well-regarded for its use in audio and general-purpose applications. While both devices are similar in functionality, the TP2262-SR brings several key advantages, particularly in terms of power efficiency, noise performance, and price-to-performance ratio.


Power Consumption and Efficiency

  1. Power Efficiency:

    • The TP2262-SR is designed with low-power consumption in mind, operating with a supply current of 1.3 mA (typical). This makes it a strong contender for battery-operated devices, portable audio equipment, and other applications where power efficiency is a critical factor.

    • On the other hand, the TL072IDR has a higher supply current of 3.5 mA (typical), which can be a drawback for low-power systems. In applications where minimizing power consumption is crucial, the TP2262-SR provides a significant advantage in extending battery life and reducing overall system energy consumption.


Noise Performance

  1. Low Noise Characteristics:

    • The TP2262-SR features ultra-low noise performance with a low input noise voltage density of 0.6 nV/√Hz at 1 kHz, making it particularly suitable for high-precision applications such as audio signal amplification, sensitive measurement systems, and high-fidelity audio equipment.

    • The TL072IDR has a slightly higher noise density of 1.2 nV/√Hz at 1 kHz, which may not be suitable for the most sensitive applications where minimal noise is critical. The TP2262-SR's lower noise ensures cleaner signal amplification, improving the overall performance in noise-sensitive designs.


Offset Voltage and Precision

  1. Offset Voltage and Accuracy:

    • The TP2262-SR boasts a low input offset voltage of <3 mV, providing better precision and reducing the need for additional calibration in systems where accuracy is paramount. This is especially valuable in high-accuracy measurement applications, sensor interfaces, and audio signal processing, where even small voltage offsets can result in significant errors.

    • In contrast, the TL072IDR has a typical input offset voltage of 3 mV, which is slightly higher compared to the TP2262-SR. While the offset voltage of the TL072IDR is still within acceptable limits for many applications, the TP2262-SR's lower offset voltage translates to higher accuracy in sensitive signal processing.


Bandwidth and Slew Rate

  1. Bandwidth and Slew Rate:

    • The TP2262-SR has an excellent wide bandwidth with a gain-bandwidth product of 8 MHz and a slew rate of 0.3 V/µs. This makes it well-suited for applications requiring fast response times and high-frequency performance, such as audio amplification and high-speed data acquisition.

    • The TL072IDR, on the other hand, offers a gain-bandwidth product of 3 MHz and a slew rate of 0.3 V/µs, which may limit its performance in high-speed or high-frequency applications. While the TL072IDR is suitable for many general-purpose designs, the TP2262-SR's higher bandwidth offers better performance in fast-response applications and high-precision signal conditioning.


Temperature Stability

  1. Temperature Performance:

    • The TP2262-SR operates reliably across a wide temperature range of -40°C to +125°C, ensuring stable performance even under extreme environmental conditions. This makes it ideal for use in automotive systems, industrial control, and outdoor sensor applications, where temperature fluctuations are common.

    • The TL072IDR also operates within a similar temperature range of -40°C to +85°C, but its lower maximum temperature range may limit its applicability in harsh environments where higher operating temperatures are expected. The TP2262-SR’s extended temperature range offers better versatility in extreme conditions, ensuring robust and reliable performance.


Package Options and Integration

  1. Packaging and Integration:

    • The TP2262-SR is available in a compact 8-pin SOIC package, providing small form factor integration options for space-constrained designs such as portable electronics, sensor modules, and miniaturized audio devices.

    • The TL072IDR comes in an 8-pin DIP package or SOIC package, offering flexibility for different design needs. However, the TP2262-SR's smaller and more compact package options may provide better integration into designs where space-saving is a critical design requirement.


Cost-Effectiveness and Value

  1. Cost-Effectiveness:

    • The TP2262-SR offers excellent cost-effectiveness for high-performance applications, delivering low noise, high precision, and low power consumption at a competitive price point. This makes it particularly attractive for high-volume production, where maintaining a low cost per unit is crucial.

    • The TL072IDR tends to be priced at a premium, especially for specialized versions. While it is a solid product, the TP2262-SR offers superior performance at a lower price, making it a better choice for budget-conscious designs without sacrificing quality or performance.


Conclusion

In summary, the TP2262-SR from 3peak offers several key advantages over the TL072IDR from Texas Instruments, including lower power consumption, superior noise performance, better precision, and a wider operating temperature range. The TP2262-SR excels in high-accuracy applications, low-noise signal amplification, and battery-powered devices, while offering greater value at a competitive price.



While the TL072IDR is suitable for general-purpose applications, the TP2262-SR provides higher performance, greater reliability, and better value for high-precision, low-noise, and energy-efficient systems. For engineers looking for a high-performance op-amp with superior noise characteristics and low power consumption, the TP2262-SR is the ideal solution for a wide range of audio, industrial, and portable applications.
