XD358 Current Mode PWM Controller

XD3846 is a Replacement parts of

UC3846N



XD3846 has good quality and a cheaper price, which can effectively help you reduce costs and make your products more competitive. In addition, we have sufficient supply and stable price of this parts, which can greatly help you to avoid problems such as price increases and parts shortages of similar products from other brands.
  • Mfr.Part No. :

    XD3846
  • Manufacturer :

    XINLUDA
  • Description :

    Current Mode PWM Controller
  • Packaging :

    TUBE
  • Package :

    DIP-16
  • Stock :

    in stock
  • Price :

    $0.8-$1.3

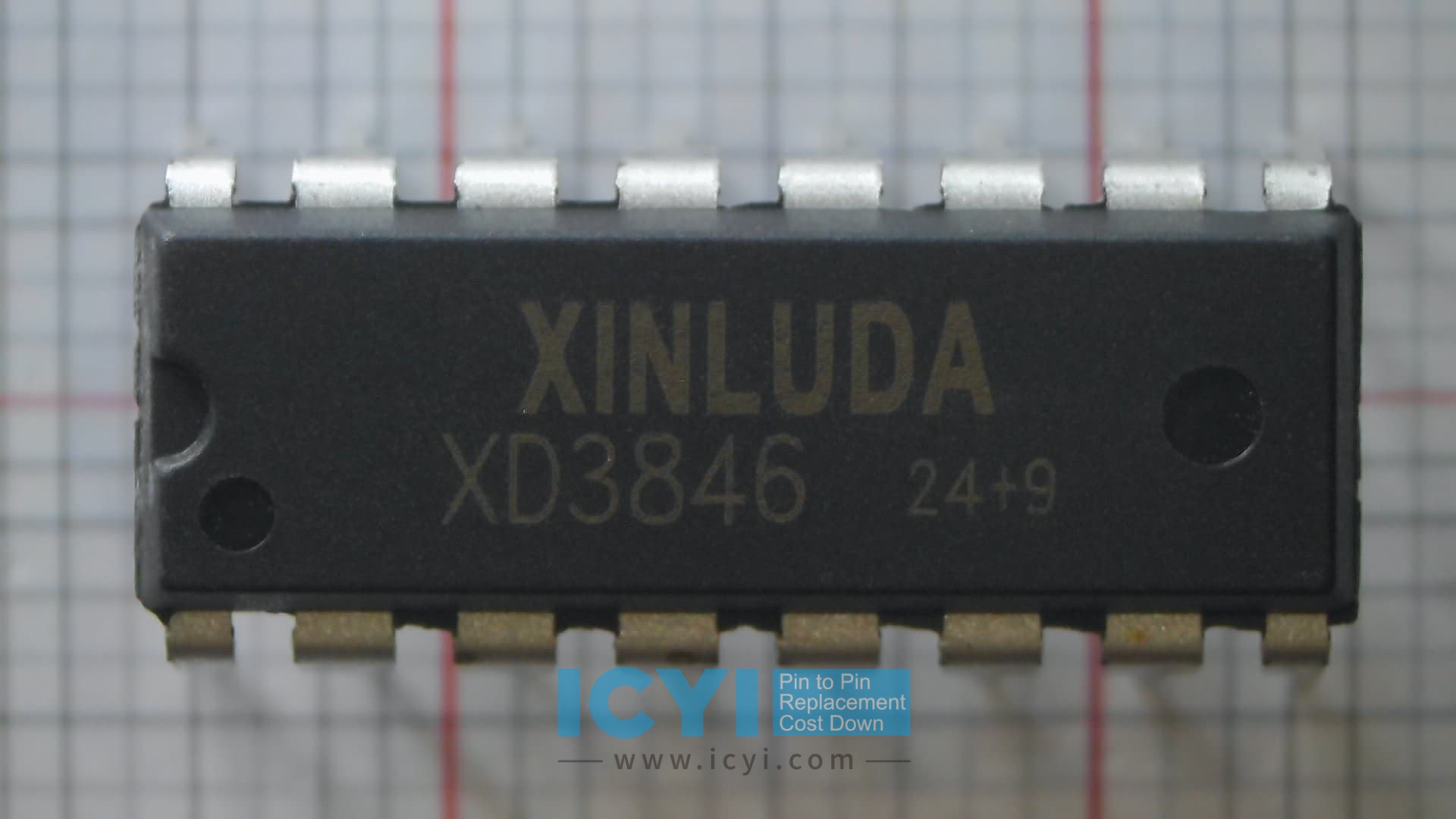

XD3846



Price: $0.8-$1.3 $2.8-$4.5
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
XD3846
UC3846N





Introduction

The XD3846 from XINLUDA and the UC3846N from Texas Instruments (TI) are both popular integrated circuits used in power management systems, particularly for applications requiring pulse-width modulation (PWM) control in DC-DC converters and switching power supplies. While both chips share similar functionality, the XD3846 offers several enhancements in performance, efficiency, and features. This comparison will examine the key specifications and advantages of the XD3846 in relation to the UC3846N, providing a clear picture of the benefits of using XD3846 in various power applications.


Power Efficiency

One of the primary advantages of the XD3846 is its lower quiescent current of 6 mA, which is lower than the UC3846N, which typically has a quiescent current of 8 mA. This lower quiescent current results in reduced power consumption during the operation of the chip, particularly beneficial in low-power applications or battery-operated devices. Furthermore, the XD3846 offers a start-up current of 120 µA, compared to the UC3846N’s 200 µA, which makes the XD3846 more energy-efficient, reducing startup power losses and improving system efficiency during the initial power-up phase.


Operating Voltage and Temperature Range

The XD3846 operates with a broader operating voltage range, from 8V to 40V, while the UC3846N operates from 10V to 40V. This wider operating voltage range in the XD3846 makes it more versatile, especially in applications where the input voltage may fluctuate or be lower. Moreover, the XD3846 has a temperature range of -40°C to +125°C, compared to the UC3846N’s range of 0°C to +85°C. This extended temperature range in the XD3846 ensures higher reliability and stability, making it ideal for industrial and automotive applications where high-temperature environments are common.


Output Drive Capability

Both the XD3846 and UC3846N offer excellent output drive capability, but the XD3846 has a 500 mA peak output current, which is significantly higher than the UC3846N’s 200 mA peak output current. The increased output drive capability of the XD3846 allows it to handle higher-power applications and provides better control over external power transistors or MOSFETs. This feature enables faster switching, reducing switching losses, and improving overall efficiency in high-power designs, making the XD3846 more suitable for high-performance power supplies.


Current Sense and Protection Features

The XD3846 features an internal current sense for current limiting, which is integrated within the chip. This internal current sensing reduces the need for additional external components, simplifying the design and improving overall system reliability. In contrast, the UC3846N requires external components for current sensing, increasing the complexity of the design and the risk of system failure due to improperly selected components. The XD3846’s integrated protection features, such as internal current limiting and under-voltage lockout (UVLO), also offer improved system protection against fault conditions. These features reduce the need for external protection circuitry, further enhancing the overall system's compactness and reliability.


Operating Frequency Range

The XD3846 operates within a frequency range of 50 kHz to 500 kHz, offering greater flexibility in designing power supplies that require high switching frequencies. In comparison, the UC3846N has a frequency range of 40 kHz to 100 kHz. The higher frequency capability of the XD3846 allows designers to use smaller passive components (inductors and capacitors), reducing the overall size and cost of the power conversion system. This makes the XD3846 particularly advantageous for compact, high-frequency designs that require efficient power conversion with minimized size.


Fault Protection and Safety

The XD3846 includes integrated overcurrent protection, overvoltage protection, and thermal shutdown features, which ensure the chip remains protected under various fault conditions. These safety features help to prevent damage to the device and improve the longevity of the overall power system. The UC3846N, while offering some fault protection, typically requires additional external circuitry to achieve similar levels of protection, leading to increased design complexity and cost. The XD3846's comprehensive built-in protection makes it a safer, more reliable choice for mission-critical applications.


Cost-Effectiveness and Integration

While both the XD3846 and UC3846N offer similar functions, the XD3846 is more cost-effective due to its integrated features, such as current limiting and overvoltage protection, which reduce the need for external components. By minimizing the number of external components, the XD3846 enables a more streamlined and cost-efficient design process. Additionally, the XD3846’s better performance in areas like efficiency, output drive capability, and fault protection provides a higher overall value, ensuring reduced system costs without compromising performance.


Application Flexibility

The XD3846 is designed for a broad range of applications, including DC-DC converters, battery chargers, off-line power supplies, and high-efficiency lighting systems. The XD3846’s high output current capability, wide operating voltage range, and integrated protection features make it particularly suited for industrial, automotive, and consumer electronics applications. In comparison, the UC3846N is primarily used in standard power supply designs but lacks some of the XD3846’s advanced features, limiting its flexibility in high-performance or demanding applications.


Conclusion

While the UC3846N from Texas Instruments is a reliable and widely used chip in power management applications, the XD3846 from XINLUDA outperforms the UC3846N in several key areas, including power efficiency, output drive capability, voltage range, and built-in protection features. The XD3846's lower quiescent current, wider temperature range, higher output drive, and integrated protection make it a superior choice for high-performance power supply designs. Its enhanced flexibility and cost-effectiveness ensure it meets the demands of modern, energy-efficient, and compact power systems.

By choosing the XD3846, engineers can achieve greater reliability, efficiency, and design simplicity, making it the optimal solution for a variety of power management applications.

leave a message
For any request of parts price or technical support and Free Samples, please fill in the form, Thank you!
Submit
