GC8837 12V Single Channel Full Bridge Driver

Power Efficiency and Consumption

• GC8837: The GC8837 is built with a focus on low power consumption, ensuring that it performs efficiently in battery-powered applications. The device operates with a low quiescent current and features integrated power-saving modes to minimize energy use during idle periods. This makes the GC8837 particularly well-suited for energy-sensitive applications such as portable robots and wearable devices.

• DRV8837DSGR: While the DRV8837DSGR also targets low-power applications, it typically consumes a bit more power compared to the GC8837 under similar operating conditions. The DRV8837DSGR has a slightly higher quiescent current, which could be a disadvantage in battery-driven systems where every milliwatt counts. Although the DRV8837DSGR provides efficient motor control, its power-saving capabilities are generally not as optimized as the GC8837.

Motor Control Performance

• GC8837: The GC8837 features advanced motor control algorithms that enable precise and smooth motor operation. It supports both DC motors and stepper motors, providing fine-grained control over motor speed and torque. Its high current drive capability (up to 1.2A per channel) ensures that the chip can manage demanding motor control tasks with excellent efficiency and stability.

• DRV8837DSGR: The DRV8837DSGR is also designed for efficient motor control, but its maximum current drive capability is limited to 1A per channel, which may restrict its application in systems requiring higher power motors. While it still offers reliable performance, the GC8837 stands out with its higher current capacity, making it better suited for high-performance applications.

Protection Features

• GC8837: The GC8837 integrates advanced protection features such as overcurrent protection, thermal shutdown, and under-voltage lockout to ensure safe and reliable operation in critical applications. These features help prevent damage to the chip and connected systems, especially in environments prone to electrical noise and high motor load conditions. The GC8837's protection mechanisms are designed to maximize the longevity of the system and minimize downtime.

• DRV8837DSGR: The DRV8837DSGR also includes basic protection features like overcurrent protection and thermal shutdown, but its overall protection capabilities are less comprehensive compared to the GC8837. For example, the DRV8837DSGR lacks certain advanced features such as under-voltage lockout, which could result in less stable operation in power-variable environments. The GC8837's comprehensive protection features provide additional reliability for mission-critical applications.

Integration and External Components

• GC8837: One of the key advantages of the GC8837 is its high integration, which minimizes the need for external components. The GC8837 includes built-in PWM (Pulse Width Modulation) control and direction control logic, simplifying the design process for engineers. This reduces the Bill of Materials (BOM), which ultimately leads to cost savings and faster time to market.

• DRV8837DSGR: The DRV8837DSGR is also a highly integrated solution, but it may require additional external components for advanced motor control or for implementing more complex control algorithms. For instance, in some applications, engineers may need to add external capacitors or resistors for optimal motor performance, which could increase system complexity and design time.

Size and Packaging

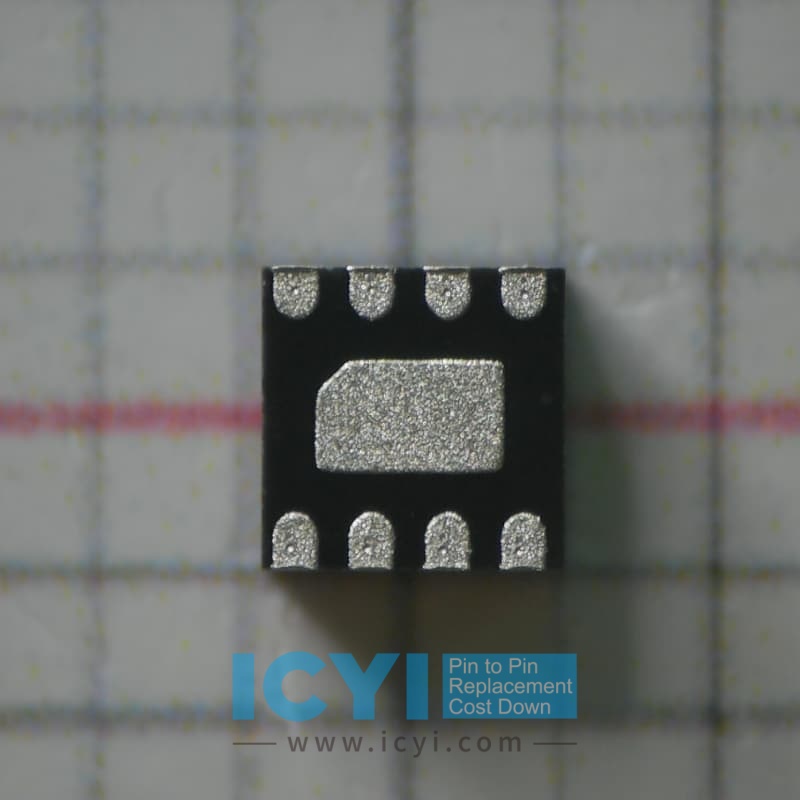

• GC8837: The GC8837 comes in a compact and space-saving package, making it suitable for applications with limited board space. Its small footprint allows it to be integrated into compact devices where minimizing size is crucial, such as robotics and portable applications.

• DRV8837DSGR: The DRV8837DSGR also offers a small package size, but it is somewhat larger than the GC8837 due to its additional components and less integrated design. In systems where size is a critical factor, the GC8837's more compact design may offer a clear advantage.

Thermal Management and Operating Temperature Range

• GC8837: The GC8837 has an excellent thermal management system, ensuring that it operates efficiently even at higher loads. It features a wide operating temperature range of -40°C to +125°C, making it suitable for use in demanding environments such as automotive, industrial, and outdoor applications. The GC8837's robust thermal performance allows for continuous operation under a variety of environmental conditions.

• DRV8837DSGR: The DRV8837DSGR has a similar operating temperature range of -40°C to +125°C, which also makes it suitable for industrial and automotive applications. However, the GC8837 may offer slightly better thermal stability due to its more advanced thermal shutdown features, ensuring long-term reliability even in high-temperature conditions.

Cost-Effectiveness

• GC8837: The GC8837 offers an excellent balance between performance and cost, delivering superior features at a competitive price point. Its low BOM, high integration, and advanced protection features make it a cost-effective solution for applications requiring efficient motor control without compromising on reliability or performance.

• DRV8837DSGR: The DRV8837DSGR is similarly priced in the market, but the need for additional external components for certain motor control features may increase the overall system cost. In applications where cost is a key consideration, the GC8837 offers a more cost-efficient solution due to its higher level of integration and protection features.

Key Advantages of GC8837

1. Higher Current Drive: The GC8837 offers a higher current drive capability (up to 1.2A per channel) compared to the DRV8837DSGR, making it more suitable for higher-performance motor control systems.

2. Advanced Protection Features: The GC8837 includes additional protection features, such as under-voltage lockout, which enhance reliability and ensure the safety of both the chip and the connected system.

3. Lower Power Consumption: The GC8837 operates with lower quiescent current, making it ideal for battery-operated and energy-sensitive applications.

4. Higher Integration: With built-in PWM control and direction control logic, the GC8837 reduces the need for external components, minimizing BOM and design complexity, and ultimately cutting costs.

5. Compact Form Factor: The GC8837's small package is better suited for applications where space is at a premium, such as portable and compact devices.

Conclusion

The GC8837 stands out as a more efficient, reliable, and cost-effective solution for motor control applications compared to the DRV8837DSGR. Its higher current drive capability, advanced protection features, low power consumption, and greater integration make it a clear choice for applications demanding superior motor control performance, robust thermal management, and space efficiency. When compared to the DRV8837DSGR, the GC8837 offers distinct advantages in terms of cost reduction, performance optimization, and long-term reliability, making it the ideal choice for a wide range of demanding applications.
