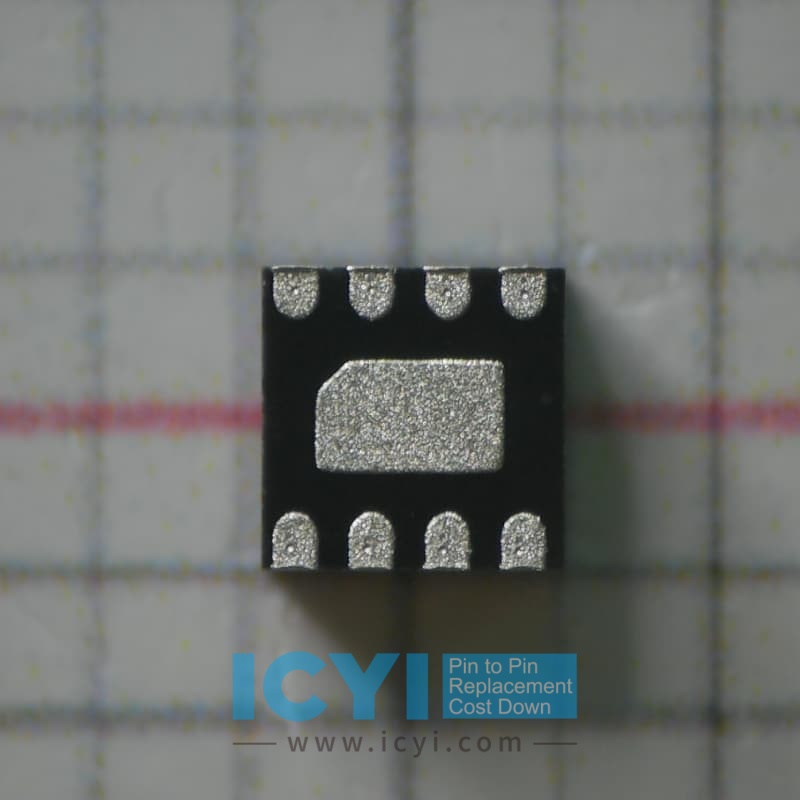

GC8838 12V Single Channel Full Bridge Driver

GC8838 is a Replacement parts of

DRV8838DSGR


GC8838 has good quality and a cheaper price, which can effectively help you reduce costs and make your products more competitive. In addition, we have sufficient supply and stable price of this parts, which can greatly help you to avoid problems such as price increases and parts shortages of similar products from other brands.
  • Mfr.Part No. :

    GC8838
  • Manufacturer :

    SX GLOBALCHIP
  • Description :

    12V Single Channel Full Bridge Driver
  • Packaging :

    Reel
  • Package :

    DFN-8
  • Stock :

    in stock
  • Price :

    $0.18-$0.35



GC8838



Price: $0.18-$0.35 $0.38-$0.55
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
GC8838
DRV8838DSGR





Power Efficiency and Consumption

  • GC8838: The GC8838 is designed with power efficiency in mind, ensuring minimal power consumption while maintaining robust motor control. It operates with a low quiescent current, making it an ideal choice for battery-operated applications where energy efficiency is a priority. The GC8838 also incorporates power-saving modes, enabling it to optimize power usage when the motor is idle.

  • DRV8838DSGR: While the DRV8838DSGR is also energy-efficient, it typically draws a slightly higher quiescent current compared to the GC8838. This means that, in low-power applications, the GC8838 can offer better battery life and overall energy consumption, which is a key consideration for applications that need to maximize uptime, such as wearable devices and remote systems.


Motor Control Performance

  • GC8838: The GC8838 excels in motor control performance, providing precise control over DC motors and stepper motors. It supports a high current drive capability of up to 1.5A per channel, ensuring that it can handle more demanding motor control tasks without compromising on performance. This makes the GC8838 highly suitable for applications requiring high torque and smooth operation, such as robotics, automated machinery, and drone systems.

  • DRV8838DSGR: The DRV8838DSGR has a current drive capability of 1A per channel, which, while sufficient for many motor control applications, is generally lower than the GC8838. This could potentially limit the DRV8838DSGR in high-power applications that require continuous motor operation at higher currents. The GC8838's higher current handling capacity gives it a distinct edge when dealing with motors requiring higher power or in more high-performance environments.


Integration and External Components

  • GC8838: The GC8838 is a highly integrated solution, offering built-in PWM control, direction control logic, and current sensing all within a single package. This reduces the need for additional external components, leading to simplified circuit design, lower BOM (Bill of Materials), and faster time to market. The GC8838’s integration enables engineers to design compact systems with fewer parts, reducing both costs and system complexity.

  • DRV8838DSGR: The DRV8838DSGR is also integrated but may require additional external components for certain advanced motor control features or for optimizing system performance in specific applications. For example, external components might be needed to fine-tune motor speed or torque characteristics, which could increase the BOM and system complexity. In comparison, the GC8838 offers a higher level of integration, reducing the need for additional components and improving overall system efficiency.


Protection Features

  • GC8838: The GC8838 is equipped with advanced protection features, including overcurrent protection, thermal shutdown, and undervoltage lockout. These built-in features ensure that the motor driver IC can safely handle extreme operating conditions without risking damage to the system. The GC8838 is designed for high reliability in mission-critical applications, ensuring the system remains safe and stable during sudden changes in load, temperature, or supply voltage.

  • DRV8838DSGR: The DRV8838DSGR also incorporates overcurrent protection and thermal shutdown, but it lacks the undervoltage lockout feature present in the GC8838. This makes the GC8838 more robust in environments where voltage fluctuations may occur, such as in automotive or industrial control systems. The inclusion of undervoltage lockout in the GC8838 provides an added layer of protection, preventing the motor driver from operating in an unsafe voltage range.


Size and Packaging

  • GC8838: The GC8838 is available in a compact package, which makes it suitable for space-constrained applications. Its small form factor is especially advantageous in portable devices, miniaturized systems, and wearable technologies, where minimizing the physical size of the components is essential. The compact design of the GC8838 allows for integration into smaller systems without sacrificing performance.

  • DRV8838DSGR: The DRV8838DSGR is also available in a small package; however, due to its slightly higher complexity and integration requirements, the overall size might be slightly larger compared to the GC8838. For applications where space efficiency is paramount, the GC8838’s smaller and more efficient packaging can provide a distinct advantage.


Thermal Performance

  • GC8838: The GC8838 features superior thermal performance, enabling it to operate reliably in high-temperature environments. It is capable of handling significant amounts of heat dissipation without compromising its functionality, ensuring long-term reliability in demanding conditions. With its high thermal stability, the GC8838 is suitable for automotive, industrial, and outdoor applications where high temperatures may be a concern.

  • DRV8838DSGR: The DRV8838DSGR also offers thermal protection features, including thermal shutdown. However, it may not have the same level of thermal resilience as the GC8838, especially under high current loads. For applications requiring extended operational hours or running in high ambient temperatures, the GC8838 could offer better long-term reliability due to its superior thermal management.


Cost-Effectiveness

  • GC8838: The GC8838 offers an excellent balance between performance and cost, providing a high level of integration at a competitive price point. Its low BOM, higher current drive capability, and advanced protection features make it a cost-effective solution for applications where performance and reliability are critical, without breaking the budget.

  • DRV8838DSGR: The DRV8838DSGR is similarly priced in the market but could incur additional costs due to the need for external components in some applications. For systems that require more complex motor control or additional protection mechanisms, the GC8838 provides a more cost-efficient alternative, offering better overall value for money.


Key Advantages of GC8838

  1. Higher Current Drive Capability: The GC8838 offers 1.5A per channel drive capability, outperforming the DRV8838DSGR, which supports only 1A per channel. This makes the GC8838 better suited for high-power motor applications.

  2. Advanced Protection Features: The GC8838 includes undervoltage lockout, which the DRV8838DSGR lacks, providing enhanced protection for systems operating in unstable voltage environments.

  3. Better Power Efficiency: The GC8838 draws lower quiescent current, making it more battery-friendly and ideal for low-power, energy-sensitive applications.

  4. Higher Integration: With built-in PWM control, direction control, and current sensing, the GC8838 offers a higher level of integration, reducing the need for additional external components and simplifying system design.

  5. Compact Design: The GC8838’s small form factor makes it ideal for space-constrained applications where reducing the overall system size is a priority.


Conclusion



The GC8838 offers a range of superior features when compared to the DRV8838DSGR, including a higher current drive capability, advanced protection mechanisms, better power efficiency, and higher integration. Its ability to handle demanding motor control tasks, combined with its robust protection features and compact design, makes it an ideal choice for high-performance, space-sensitive, and energy-efficient applications. While the DRV8838DSGR remains a reliable option, the GC8838 stands out as the more cost-effective, efficient, and powerful solution for modern motor control systems.
