LM2904A-SR 36V General Purpose Op Amp

Introduction

The LM2904A-SR from 3peak and the LM2904DRG4 from Texas Instruments (TI) are both dual operational amplifiers, designed for a variety of applications in signal conditioning, sensor interfacing, and general-purpose amplification. These operational amplifiers share many similarities in their functionality, but the LM2904A-SR has several key advantages in terms of power efficiency, noise performance, and reliability. This comparison will explore these distinctions in detail.

Power Supply Voltage and Consumption

The LM2904A-SR operates over a supply voltage range of 3V to 32V (single supply) or ±1.5V to ±16V (dual supply). It provides a low supply current of 200 µA typical, making it an excellent choice for low-power applications such as battery-powered devices or energy-sensitive systems.

On the other hand, the LM2904DRG4 from Texas Instruments operates with a supply voltage range of 3V to 32V (single supply) or ±1.5V to ±16V (dual supply), similar to the LM2904A-SR. However, it has a slightly higher typical supply current of 250 µA, resulting in greater power consumption compared to the LM2904A-SR. This makes the LM2904A-SR a more power-efficient choice, particularly in low-power systems.

Input Offset Voltage and Precision

The LM2904A-SR offers a typical input offset voltage of 5 mV, which ensures a reasonable level of precision for most general-purpose applications. This low offset voltage is ideal for sensor interfacing, where small inaccuracies could result in significant signal distortions. The LM2904A-SR ensures reliable and accurate amplification for a wide range of applications.

In comparison, the LM2904DRG4 has a typical input offset voltage of 7 mV, which is slightly higher than that of the LM2904A-SR. While this is still within acceptable limits for many applications, the LM2904A-SR's lower offset voltage gives it an edge in precision-sensitive applications. This makes the LM2904A-SR particularly suitable for more demanding signal conditioning tasks.

Noise Performance

The LM2904A-SR boasts a low voltage noise density of 8 nV/√Hz at 1 kHz, which contributes to better signal clarity and less distortion. This makes it a superior choice for applications requiring low-noise performance, such as audio processing, medical instrumentation, and high-fidelity systems.

In contrast, the LM2904DRG4 has a voltage noise density of 20 nV/√Hz at 1 kHz. While still acceptable for many applications, this higher noise density can lead to signal degradation in systems where high signal-to-noise ratios are critical. The LM2904A-SR's better noise performance allows for cleaner signals and greater reliability in sensitive applications.

Temperature Range and Reliability

The LM2904A-SR from 3peak is rated for an extended operating temperature range of -40°C to +125°C, which ensures stable performance even in harsh environmental conditions. This is especially beneficial for applications in industries such as automotive, industrial automation, and outdoor systems, where components may be exposed to extreme temperature variations.

The LM2904DRG4 from Texas Instruments, on the other hand, operates within a more limited temperature range of -40°C to +85°C, which is sufficient for many general-purpose applications but may not be suitable for systems operating in extreme environments. The LM2904A-SR's wider temperature range provides a distinct advantage in applications where reliability and durability are essential in temperature-varying conditions.

Power Supply Rejection Ratio (PSRR)

The LM2904A-SR offers an impressive PSRR of 100 dB, which helps to reject fluctuations in the power supply and maintain stable operation even in noisy environments. This feature is crucial in automotive and industrial applications, where power supply noise and fluctuations are common.

In comparison, the LM2904DRG4 from TI has a PSRR of 85 dB, which is still acceptable for most applications but is less effective at filtering out power supply noise. The LM2904A-SR's higher PSRR ensures better performance in noise-sensitive systems, providing greater reliability in environments with significant electromagnetic interference (EMI) or voltage fluctuations.

Package Options and Integration

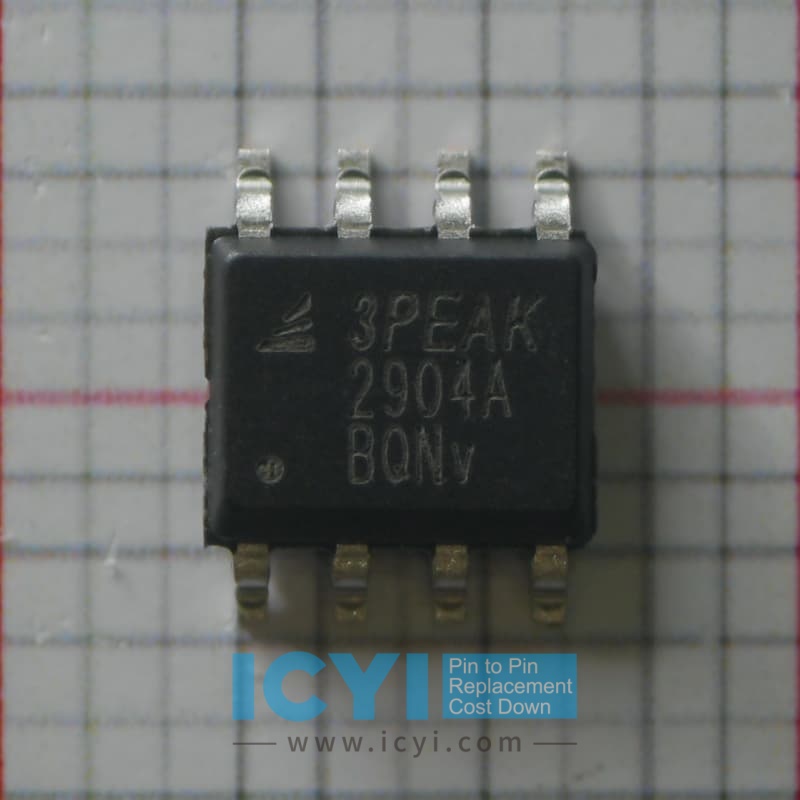

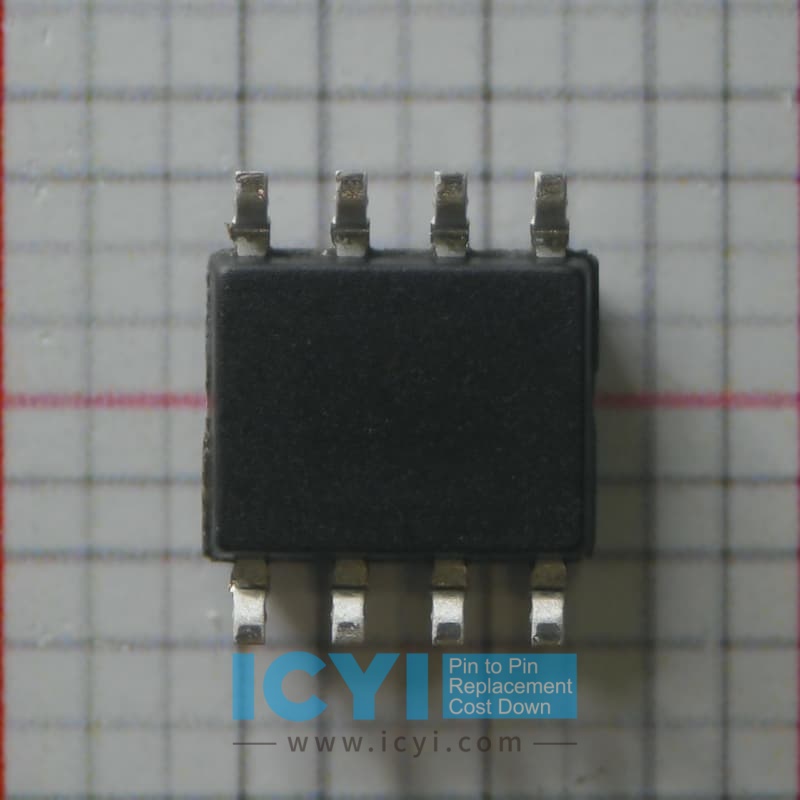

The LM2904A-SR from 3peak is available in a compact SOIC-8 package, which is ideal for surface-mount applications. It also offers flexibility with options like DIP-8 and SOT-23, catering to various assembly requirements and offering designers a broader selection of packages.

The LM2904DRG4 from TI is also available in the SOIC-8 package, but it does not offer the same range of packaging options as the LM2904A-SR. The additional package flexibility of the LM2904A-SR provides designers with more options for compact system designs and flexible assembly processes, making it easier to integrate into a variety of applications.

Cost-Effectiveness

The LM2904A-SR from 3peak provides a cost-effective solution without compromising on performance. Its lower supply current, better noise performance, and extended temperature range offer greater value for low-power, high-precision applications compared to the LM2904DRG4 from TI, which is often priced higher due to its brand recognition.

The LM2904DRG4 from TI may offer slightly better performance in certain areas, such as input offset voltage, but the LM2904A-SR's superior power efficiency, lower noise, and wider temperature range make it a more economical option for many applications. The LM2904A-SR offers an excellent cost-to-performance ratio, making it ideal for high-volume production and cost-conscious designs.

Conclusion

In conclusion, while both the LM2904A-SR from 3peak and the LM2904DRG4 from Texas Instruments offer similar basic functionalities, the LM2904A-SR has several key advantages that make it a superior choice for low-power, high-precision applications. With its lower supply current, better noise performance, extended temperature range, and higher PSRR, the LM2904A-SR is a more reliable and cost-effective option for energy-sensitive, noise-critical, and temperature-sensitive systems.

The LM2904DRG4, while reliable in many standard applications, falls short in areas like power efficiency and noise rejection when compared to the LM2904A-SR. The LM2904A-SR provides a clear performance advantage, offering better overall value for applications where power efficiency, noise immunity, and reliability are paramount.

This comparison underscores the LM2904A-SR as the preferred choice for designers looking for a high-performance operational amplifier with excellent precision, low power consumption, and greater application versatility.
