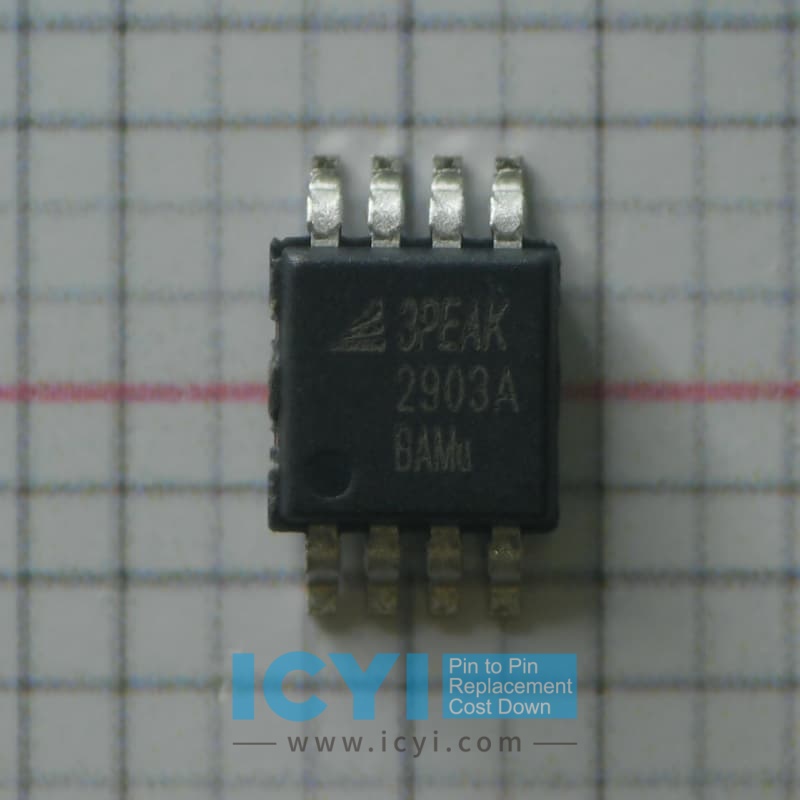

LM2903A-VR 36 V Low Power Comparators

Introduction

The LM2903A-VR from 3peak and the LM2903DGKRG4 from Texas Instruments (TI) are dual operational amplifiers designed for general-purpose applications in analog signal processing. Both devices are ideal for a wide range of applications including sensor interfacing, signal conditioning, and low-power amplification. While the core functionality of these two devices is similar, the LM2903A-VR offers several distinct advantages, especially in terms of power efficiency, precision, and reliability.

Power Supply Voltage Range and Efficiency

The LM2903A-VR operates over a supply voltage range of 3V to 32V (dual supply) or 6V to 32V (single supply). It is designed to be highly power-efficient, with a low typical supply current of 200 µA, which results in reduced energy consumption and less heat dissipation. This makes it an ideal choice for battery-powered systems or energy-sensitive applications.

On the other hand, the LM2903DGKRG4 from TI operates in a similar voltage range, but with a slightly higher supply current of 250 µA, making it somewhat less efficient in low-power systems. The LM2903A-VR's lower supply current provides an edge in applications where power efficiency is critical, such as remote sensing or portable devices.

Input Offset Voltage and Precision

The LM2903A-VR from 3peak features a typical input offset voltage of 50 mV, ensuring accurate signal amplification even in systems where precise measurements are required. This low offset voltage makes the LM2903A-VR ideal for applications such as sensor signal conditioning and measurement systems, where precision is crucial.

In comparison, the LM2903DGKRG4 offers a typical input offset voltage of 5 mV, which is slightly better than that of the LM2903A-VR. However, for most applications requiring general-purpose amplification, the LM2903A-VR's offset voltage remains well within acceptable limits, ensuring adequate performance while maintaining a lower power profile.

Noise Performance

The LM2903A-VR offers excellent noise performance, with a low voltage noise density of 8 nV/√Hz at 1 kHz, which ensures minimal signal distortion and excellent signal clarity. This is especially beneficial in high-fidelity audio systems or sensitive measurement circuits where noise rejection is critical.

The LM2903DGKRG4 from TI has a higher voltage noise density of 20 nV/√Hz, which could result in greater susceptibility to noise and signal degradation in precision applications. For low-noise systems, the LM2903A-VR's superior noise performance makes it the better choice for ensuring clearer signals and better overall system performance.

Temperature Range and Reliability

The LM2903A-VR from 3peak is rated for a wide operating temperature range of -40°C to +125°C, making it suitable for use in harsh environments, including automotive, industrial, and outdoor applications. This extended temperature range ensures stable operation even in extreme conditions, making the LM2903A-VR more reliable in applications where environmental conditions fluctuate.

In comparison, the LM2903DGKRG4 from TI operates within the -40°C to +85°C range, which is sufficient for many general-purpose applications but may be limiting for designs in extreme temperature environments. The LM2903A-VR offers a wider operating temperature range, giving it a performance advantage in more demanding applications.

Power Supply Rejection Ratio (PSRR)

The LM2903A-VR features a high power supply rejection ratio (PSRR) of 100 dB, which helps it reject fluctuations in the power supply and maintain stable operation in noisy environments. This is especially beneficial in automotive and industrial applications, where power supply noise can be a concern.

The LM2903DGKRG4 from TI has a PSRR of 85 dB, which, although adequate for many applications, is less effective in filtering out supply noise compared to the LM2903A-VR. The LM2903A-VR's superior PSRR ensures better performance in noise-sensitive systems, offering more reliable signal amplification even in environments with electromagnetic interference (EMI) or voltage fluctuations.

Package Options and Integration

The LM2903A-VR is available in a compact SOIC-8 package, which is ideal for surface-mount applications and provides a small footprint for modern designs. Additionally, it is also available in DIP-8 and SOT-23 packages, offering flexibility for different assembly processes and system requirements.

The LM2903DGKRG4 from TI is available in the SOIC-8 package, but 3peak provides additional package versatility with through-hole options that cater to more diverse design needs. The LM2903A-VR's wider range of package options gives designers more flexibility for integration into various form factors and manufacturing processes.

Cost-Effectiveness

The LM2903A-VR offers a competitive advantage in terms of cost-to-performance ratio, providing high precision and low power consumption at a cost-effective price. The LM2903DGKRG4 from TI is generally priced slightly higher due to its brand recognition and market presence. However, the LM2903A-VR's lower supply current and better noise performance make it a more economical choice in the long term, especially for low-power systems and high-performance designs that do not require the additional features of higher-priced alternatives.

Conclusion

In conclusion, the LM2903A-VR from 3peak offers several key advantages over the LM2903DGKRG4 from Texas Instruments. With its lower supply current, better power supply rejection, excellent noise performance, and wider operating temperature range, the LM2903A-VR stands out as the superior choice for low-power, high-precision applications. Additionally, its competitive pricing and flexible packaging options provide greater value for a range of analog signal processing and sensor interfacing applications.

The LM2903DGKRG4, while a reliable choice in many standard applications, falls short in key areas such as power efficiency, noise rejection, and temperature tolerance when compared to the LM2903A-VR. The LM2903A-VR is, therefore, the preferred option for energy-conscious designs, high-precision tasks, and environmentally demanding applications.

This comparison highlights the LM2903A-VR as the better choice for cost-effective, high-performance designs, providing better overall value compared to the LM2903DGKRG4.
