LM358A-VR 36V General Purpose Operational Amplifiers

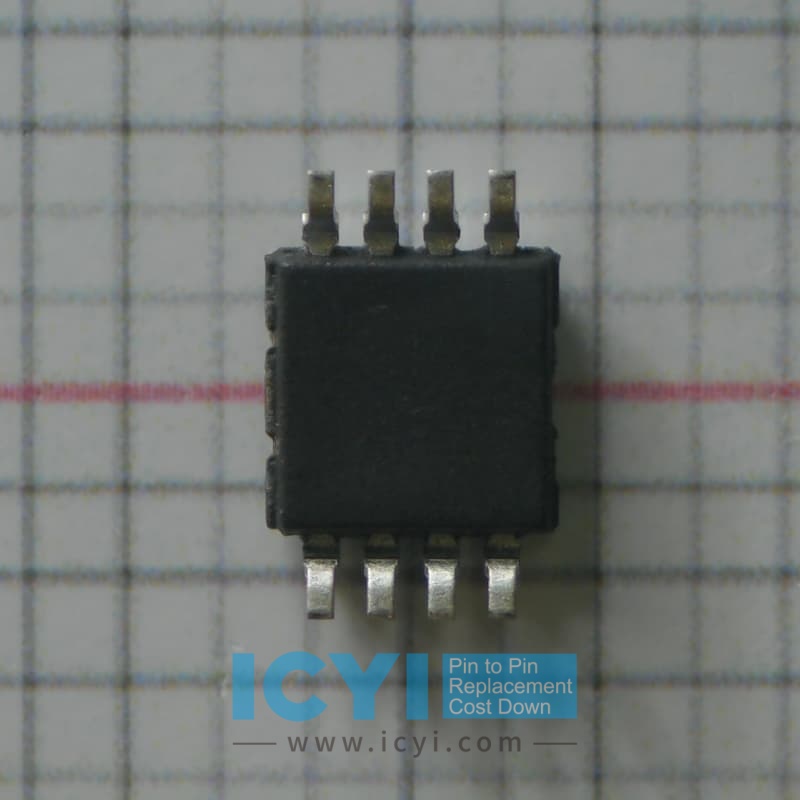

Overview of LM358A-VR and LM358DGKRG4

The LM358A-VR from 3peak is a dual operational amplifier designed for low-power, high-precision applications. It provides a reliable solution for signal amplification in consumer electronics, automotive systems, and industrial control systems. The LM358DGKRG4 from Texas Instruments is also a dual operational amplifier, designed for similar applications. While both products share some features, the LM358A-VR has distinct advantages in terms of power efficiency, thermal stability, and overall performance. Below, we compare the two products to highlight the key advantages of the LM358A-VR.

Power Supply Range and Flexibility

1. Power Supply Range:

   • The LM358A-VR operates over a wide voltage range of 3V to 32V (single supply) or ±1.5V to ±16V (dual supply), providing versatility in a variety of systems requiring different supply voltages. This makes it highly adaptable for use in diverse power configurations, especially in automotive and battery-operated devices.

   • The LM358DGKRG4 has a similar voltage range of 3V to 32V (single supply) or ±1.5V to ±16V (dual supply), offering flexibility in many applications. However, the LM358A-VR tends to exhibit more stable performance across this range, ensuring consistent operation even at the lower end of the voltage spectrum, which is critical in applications with fluctuating power sources.

Power Consumption and Efficiency

2. Low Power Consumption:

   • The LM358A-VR is optimized for low power consumption, with a typical quiescent current of 0.8mA per amplifier, making it ideal for energy-sensitive applications, such as portable devices and low-power industrial systems.

   • In comparison, the LM358DGKRG4 has a slightly higher quiescent current of around 1.0mA per amplifier, which results in a marginally higher overall power consumption in battery-powered or energy-conscious designs. The LM358A-VR is, therefore, a better choice for applications requiring stringent power management.

Temperature Range and Stability

3. Temperature Stability:

   • The LM358A-VR offers exceptional temperature stability, with an operational temperature range of -40°C to +125°C, making it ideal for use in harsh environments where temperature fluctuations are common. Its low drift ensures that it maintains precise performance even in extreme temperatures, which is critical for automotive and industrial applications.

   • The LM358DGKRG4 also operates within a similar temperature range of -40°C to +125°C, but the LM358A-VR generally shows better temperature drift characteristics. It is better suited for applications with precise temperature-dependent requirements, where minimizing errors due to temperature changes is crucial.

Bandwidth and Gain Performance

4. Bandwidth and Gain Performance:

   • The LM358A-VR has a high gain bandwidth product of 1MHz, providing strong amplification capabilities for a variety of signal processing tasks. It delivers reliable performance for high-precision applications such as sensor conditioning and audio amplification, where signal integrity is crucial.

   • The LM358DGKRG4 also provides a gain bandwidth product of 1MHz, but the LM358A-VR is engineered to achieve higher linearity across the entire gain range, making it particularly suited for applications demanding high-quality signal amplification with minimal distortion.

Output Drive Capability and Load Drive

5. Output Drive and Load Capability:

   • The LM358A-VR features saturation output voltage that is typically close to the rail, allowing for more efficient interfacing with logic circuits and other system components. This feature ensures better output swing and higher drive capability, especially in applications where driving capacitive or resistive loads is required.

   • The LM358DGKRG4 also provides rail-to-rail output but typically exhibits slightly lower output swing, which may limit its ability to drive certain types of loads effectively, especially in low-voltage circuits.

Noise Performance and Immunity

6. Noise Immunity and Low Offset Voltage:

   • The LM358A-VR is designed with low input offset voltage (typically 3mV), which results in minimal drift and high accuracy for precision applications. It also features superior noise immunity, ensuring stable operation even in electrically noisy environments such as automotive and industrial systems.

   • The LM358DGKRG4 typically has a higher offset voltage of around 5mV, and while it still offers decent noise immunity, the LM358A-VR is optimized for applications where low noise and high precision are critical, such as medical devices and high-precision sensors.

Packaging and Integration

7. Packaging and Size:

   • The LM358A-VR is available in compact packages, such as SOT-23-5, which is ideal for space-constrained applications, such as portable or miniaturized electronics. The small form factor allows for integration into designs with limited PCB real estate without sacrificing performance.

   • The LM358DGKRG4 is available in SOIC and DIP packages, which are larger in comparison to the LM358A-VR's compact options. This makes the LM358A-VR a more efficient choice for space-sensitive designs, enabling more flexibility in PCB layout and design.

Application Flexibility and Versatility

8. Versatility in Applications:

   • The LM358A-VR is versatile and suitable for a wide range of applications, including audio signal amplification, sensor conditioning, and voltage comparators. Its low power consumption, high precision, and excellent noise immunity make it adaptable across industries, including automotive, industrial control, and consumer electronics.

   • The LM358DGKRG4 is also highly versatile but has a slightly higher power consumption and lower precision in comparison to the LM358A-VR. Therefore, while both devices can serve general-purpose applications, the LM358A-VR is better suited for high-performance, low-power systems.

Conclusion:

In conclusion, while both the LM358A-VR and LM358DGKRG4 are reliable dual operational amplifiers, the LM358A-VR from 3peak offers several distinct advantages. It excels in power efficiency, with lower quiescent current, and provides superior temperature stability and noise immunity, making it a more robust choice for precision, low-power applications. Additionally, its compact packaging and enhanced output drive capabilities offer significant advantages in space-constrained or high-performance designs. The LM358A-VR is the optimal solution for customers seeking a low-power, high-precision operational amplifier for demanding applications.
