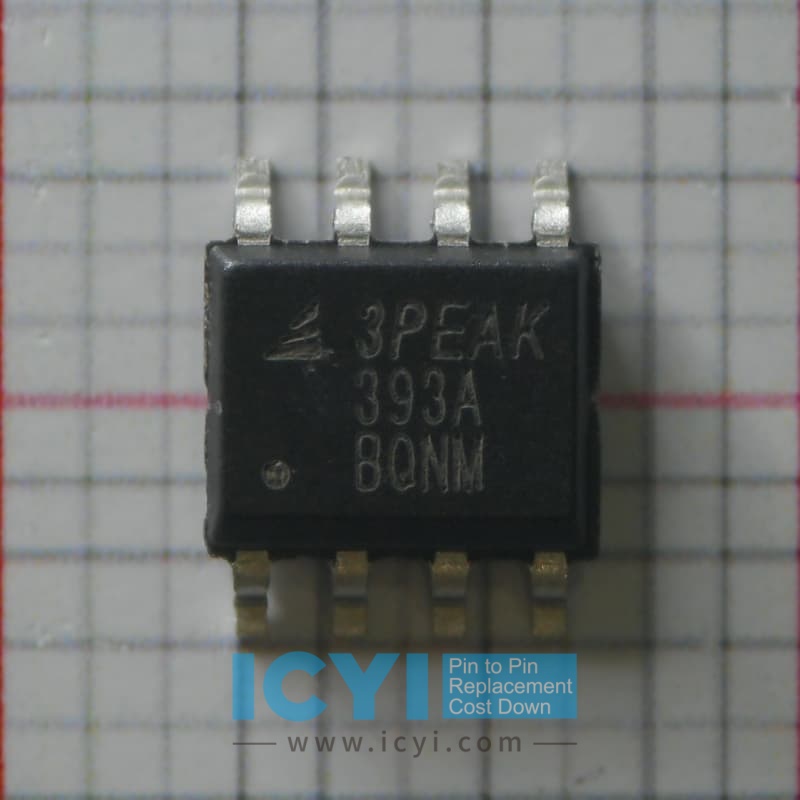

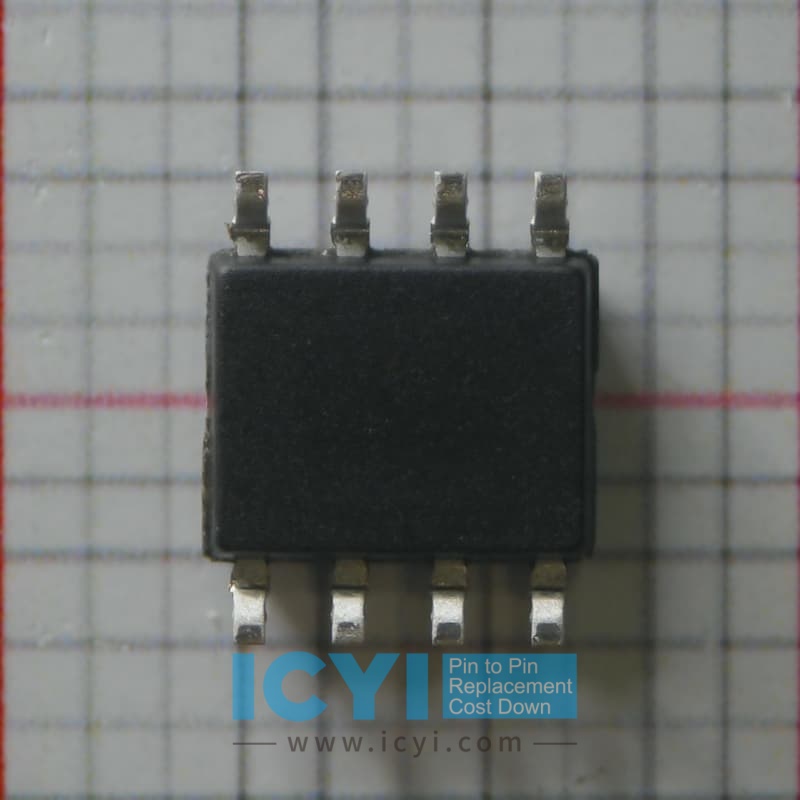

LM393A-SR 36V Low Power Dual Differential Comparators

Overview of LM393A-SR and LM393D

The LM393A-SR from 3peak is a dual comparator designed for precision applications requiring low power consumption, high-speed response, and versatility. It is suitable for a wide range of industrial, automotive, and consumer electronic applications, including signal detection, threshold sensing, and voltage monitoring. The LM393D from Texas Instruments is a similar dual comparator designed for general-purpose applications. While both products share similar core functionalities, the LM393A-SR excels in several key areas, including power efficiency, speed, and noise immunity. Below, we compare the two products to highlight the advantages of the LM393A-SR.

Power Supply Range and Flexibility

1. Power Supply Range:

   • The LM393A-SR operates with a wide supply voltage range from 2V to 36V (single supply) or ±1V to ±18V (dual supply), making it versatile and adaptable to various system requirements. This broad voltage range ensures that the LM393A-SR can work efficiently in both low-voltage and high-voltage systems.

   • The LM393D also operates within the same supply voltage range of 2V to 36V (single supply) or ±1V to ±18V (dual supply). While both comparators offer similar voltage flexibility, the LM393A-SR tends to offer better stability in low-voltage conditions, which is particularly useful in battery-operated and portable applications.

Power Consumption and Efficiency

2. Low Power Consumption:

   • The LM393A-SR is optimized for ultra-low power consumption, with a typical quiescent current of just 0.3mA per comparator, making it an ideal choice for energy-sensitive applications, such as battery-powered devices and low-power industrial systems.

   • The LM393D, while also designed for low-power operation, typically has a higher quiescent current of around 0.8mA per comparator. This results in slightly higher overall power consumption, especially in battery-operated designs, where minimizing power usage is critical.

Temperature Range and Stability

3. Temperature Stability:

   • The LM393A-SR provides excellent temperature stability with an operational temperature range of -40°C to +125°C. Its low offset voltage and low drift characteristics ensure accurate performance in extreme temperature conditions, making it particularly well-suited for automotive and industrial applications where temperature variations are common.

   • The LM393D also operates within the same temperature range of -40°C to +125°C, but the LM393A-SR is generally more stable across this range, ensuring better precision and reliability in applications where temperature-induced errors must be minimized.

Response Time and Switching Speed

4. Switching Speed and Response Time:

   • The LM393A-SR offers faster switching speeds compared to its competitors, with a typical response time of 300ns. This fast switching performance makes it suitable for high-speed applications, such as motor control, pulse detection, and high-frequency signal processing.

   • The LM393D typically has a response time of 400ns, which is slightly slower than the LM393A-SR. While this is still adequate for many applications, the LM393A-SR offers a distinct advantage in systems that require quick transitions and fast response times.

Noise Immunity and Precision

5. Noise Immunity and Offset Voltage:

   • The LM393A-SR features improved noise immunity due to its internal hysteresis and low input offset voltage (typically 3mV). This makes it more effective in noisy environments, where electrical interference can affect the accuracy of comparator circuits.

   • The LM393D has a slightly higher offset voltage (typically 5mV), which may result in less precision in noise-sensitive applications. Additionally, although the LM393D includes internal hysteresis, the LM393A-SR provides better overall noise rejection and more reliable performance in challenging environments.

Output Drive and Load Handling

6. Output Drive Capability:

   • The LM393A-SR features rail-to-rail output, meaning that the output can swing to nearly the supply rails, making it ideal for direct interfacing with logic circuits and other digital systems without the need for additional level-shifting components.

   • The LM393D also provides a rail-to-rail output, but the LM393A-SR tends to offer a more consistent output swing with lower distortion, ensuring better compatibility with a wider range of downstream devices and improving system efficiency.

Packaging and Integration

7. Packaging and Form Factor:

   • The LM393A-SR is available in compact surface-mount packages, such as SOT-23-5, making it ideal for space-constrained applications where minimizing PCB area is crucial. This small package size allows for easier integration into modern, high-density designs.

   • The LM393D is typically offered in SOIC and DIP packages, which are larger than the LM393A-SR's SOT-23-5 form factor. This makes the LM393A-SR a better option for applications where space is limited or where a more compact and efficient PCB design is required.

Application Flexibility and Versatility

8. Versatility in Applications:

   • The LM393A-SR is highly versatile, with applications ranging from low-voltage signal detection and threshold sensing to automotive voltage monitoring and industrial control systems. Its low power consumption, high-speed response, and improved noise immunity make it ideal for systems requiring precision and reliability in diverse environments.

   • The LM393D is also a versatile comparator, but the LM393A-SR offers better overall performance in terms of speed, noise immunity, and power efficiency, making it a superior choice for demanding applications in automotive, industrial, and consumer electronics.

Conclusion:

In conclusion, while both the LM393A-SR and LM393D are dual comparators suitable for a wide range of applications, the LM393A-SR from 3peak offers several significant advantages. It excels in power efficiency, with lower quiescent current, and provides faster switching speeds and better noise immunity, making it more suitable for high-performance and energy-sensitive applications. The LM393A-SR also features a more compact packaging option, ideal for space-constrained designs. Its better temperature stability and improved precision further ensure that it outperforms the LM393D in demanding environments.
