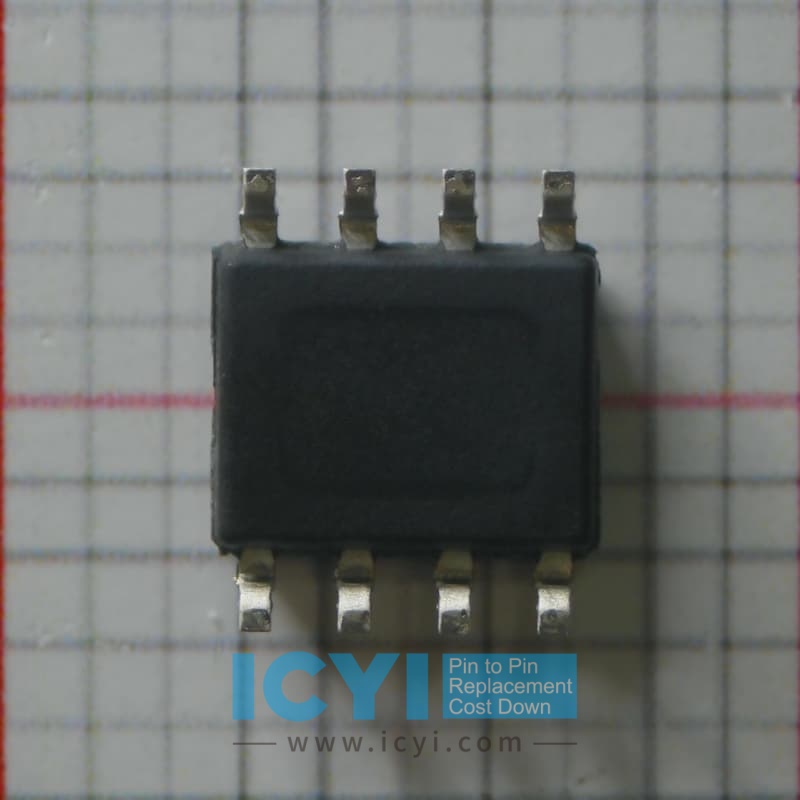

SIT65176BDR 16Mbps half-duplex RS485/RS422 transceiver

Overview of the SIT65176BDR and SN65176BDR

The SIT65176BDR is a high-performance RS-485/RS-422 transceiver designed for reliable and fast communication in industrial, automotive, and communication systems. It is optimized for high-speed data transmission, offering enhanced noise immunity, low power consumption, and robust protection features. With an integrated fail-safe mechanism and ESD protection, the SIT65176BDR ensures superior reliability and long-term performance.

On the other hand, the SN65176BDR is an established RS-485/RS-422 transceiver that is widely used in similar applications. While it delivers decent performance, the SIT65176BDR offers several key advantages, particularly in terms of power efficiency, thermal management, and fault tolerance.

Power Consumption and Efficiency

The SIT65176BDR is designed to operate at extremely low power levels, reducing energy consumption without sacrificing communication performance. It features ultra-low quiescent current, ensuring that it is well-suited for battery-operated systems or applications where power efficiency is critical. This low power design contributes to reduced operational costs and extended service life for devices that rely on the transceiver.

In contrast, the SN65176BDR consumes slightly more power, especially when operating at high data rates or in power-sensitive environments. While its power consumption is within typical limits for RS-485 transceivers, it does not match the energy efficiency of the SIT65176BDR, which could be a disadvantage in low-power or battery-operated applications.

ESD Protection and Robustness

The SIT65176BDR offers robust ±15kV HBM (Human Body Model) ESD protection and ±8kV contact discharge protection, ensuring excellent resistance to electrostatic discharge. This enhanced ESD tolerance makes the SIT65176BDR highly suitable for industrial environments where high-voltage transients are common. The integrated protection features ensure that the device remains operational and unaffected by electrical surges, contributing to its overall reliability.

While the SN65176BDR provides ESD protection of up to ±8kV HBM, it falls short in comparison to the SIT65176BDR's protection level. This higher level of protection in the SIT65176BDR ensures more robust operation in environments with higher risk of electrical noise and ESD events.

Thermal Performance and Reliability

The SIT65176BDR operates over a wide temperature range, typically from -40°C to +125°C, making it well-suited for use in environments with extreme temperature fluctuations, such as automotive or industrial control systems. Its advanced thermal management features ensure that the device operates reliably even in high-temperature conditions, providing enhanced longevity and system stability.

The SN65176BDR also operates within a similar temperature range but tends to exhibit lower thermal performance compared to the SIT65176BDR. This may limit its reliability in high-temperature environments or necessitate additional cooling solutions to maintain stable performance.

Data Rate and Communication Speed

The SIT65176BDR is capable of supporting high-speed communication at data rates of up to 25 Mbps, ensuring fast and efficient data transfer in real-time applications. Its high-speed operation is particularly valuable in industrial automation, communication systems, and automotive applications, where quick response times are critical for system functionality.

The SN65176BDR supports data rates up to 16 Mbps, which, while sufficient for many applications, is lower than the performance offered by the SIT65176BDR. For high-speed applications or systems that require faster communication, the SIT65176BDR's higher data rate provides a significant advantage.

Fault Tolerance and Safety Features

The SIT65176BDR integrates advanced fault-tolerant features, including fail-safe mechanisms that automatically detect and correct faults in the communication bus. This ensures that the device continues to operate reliably, even in the presence of faults such as bus contention or open circuits. Additionally, the SIT65176BDR features integrated protection against short circuits, which helps prevent damage to the device under adverse operating conditions.

The SN65176BDR also includes basic fault protection features, but its fault tolerance is not as comprehensive as the SIT65176BDR. The lack of integrated fail-safe circuitry and some additional protection features may lead to reduced reliability in mission-critical applications where fault detection and recovery are essential.

Electromagnetic Compatibility (EMC)

The SIT65176BDR is designed with superior EMC performance, which minimizes electromagnetic emissions and ensures robust immunity to external interference. Its enhanced EMI (Electromagnetic Interference) shielding ensures that it operates efficiently even in environments with high levels of electromagnetic noise, such as industrial machinery or automotive systems.

The SN65176BDR also meets EMC standards but does not provide the same level of EMI shielding and noise immunity as the SIT65176BDR. In high-noise environments, the SIT65176BDR is better suited for maintaining signal integrity, ensuring that data transmission remains consistent and reliable.

Cost-Effectiveness and Value Proposition

The SIT65176BDR offers excellent value by combining high performance, low power consumption, and robust protection features. Despite its advanced capabilities, it is competitively priced, offering a higher performance-to-cost ratio compared to the SN65176BDR. The enhanced fault tolerance, thermal management, and ESD protection features of the SIT65176BDR reduce the need for additional components or protective measures, further driving down total system costs.

The SN65176BDR is priced similarly to the SIT65176BDR but lacks some of the advanced features, such as higher ESD protection and greater fault tolerance. For customers seeking a cost-effective solution with a higher level of reliability and performance, the SIT65176BDR provides better long-term value.

Conclusion

In conclusion, the SIT65176BDR offers significant advantages over the SN65176BDR in terms of power consumption, ESD protection, data rate, fault tolerance, and overall reliability. Its superior performance, advanced protection features, and enhanced thermal management make it the ideal choice for high-performance applications in industrial, automotive, and communication systems. While the SN65176BDR is a competent device, it does not match the SIT65176BDR's robust feature set, making the SIT65176BDR a more reliable and cost-effective solution for demanding environments.
