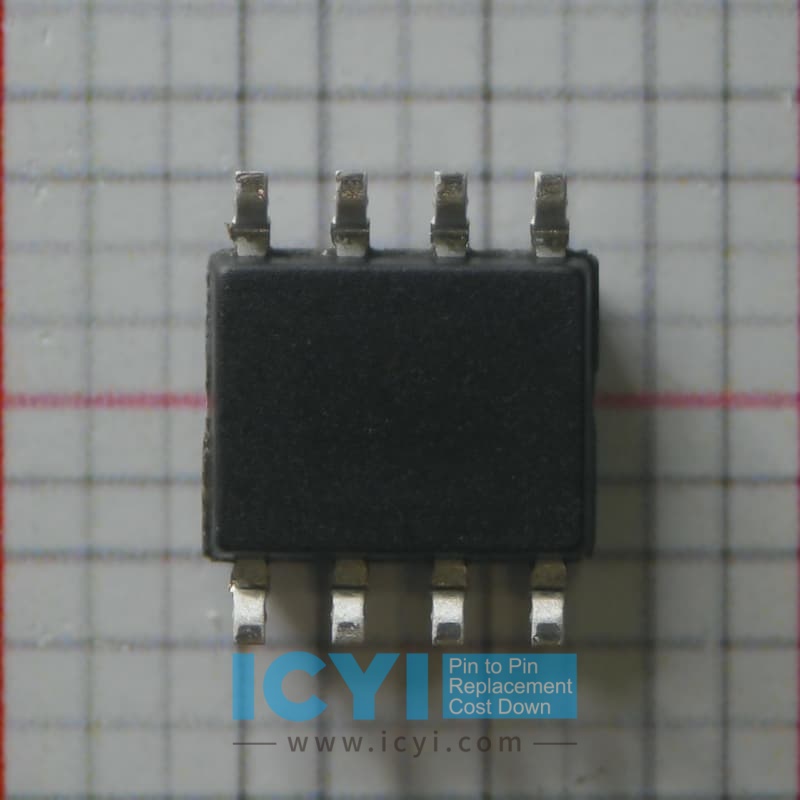

SIT65HVD08DR 10Mbps, Half-duplex RS485/RS422 Transceiver

Overview of the SIT65HVD08DR and SN65HVD08DR

The SIT65HVD08DR is a high-performance RS-485 transceiver designed for robust and reliable data communication in industrial, automotive, and communication systems. It integrates advanced features like low power consumption, high-speed communication, and enhanced protection mechanisms. With excellent ESD protection and fault-tolerant design, the SIT65HVD08DR ensures superior performance and reliability in harsh operating conditions.

The SN65HVD08DR, on the other hand, is also an RS-485 transceiver that delivers solid performance in many industrial and communication applications. While it offers reliable functionality, the SIT65HVD08DR stands out in areas such as power efficiency, protection features, and overall robustness, providing a more competitive edge for demanding applications.

Power Consumption and Efficiency

The SIT65HVD08DR is designed with a focus on low power consumption, offering excellent efficiency in both idle and active modes. Its quiescent current is optimized for minimal power usage, making it an ideal choice for battery-powered applications or systems that require extended operational life with minimal power drain. This efficiency reduces the need for additional power management components, driving down system complexity and cost.

While the SN65HVD08DR also operates efficiently, its power consumption, particularly in active modes, is somewhat higher compared to the SIT65HVD08DR. In applications where minimizing power consumption is crucial, such as battery-powered devices or energy-efficient systems, the SIT65HVD08DR offers a distinct advantage.

ESD Protection and Robustness

The SIT65HVD08DR offers superior ESD protection, with ratings up to ±15kV for Human Body Model (HBM) and ±8kV contact discharge protection. This high level of protection ensures reliable operation even in environments with significant electrostatic discharge (ESD) risks, such as industrial equipment or automotive systems. The enhanced ESD protection helps reduce the risk of damage from ESD events, improving the longevity and durability of the system.

In comparison, the SN65HVD08DR provides a lower level of ESD protection, typically rated at ±8kV for HBM. Although this level of protection is adequate for many applications, it is not as robust as the protection offered by the SIT65HVD08DR, making the SIT65HVD08DR a more reliable option in high-risk environments where strong ESD immunity is critical.

Thermal Performance and Reliability

The SIT65HVD08DR is built for reliable operation across a wide temperature range of -40°C to +125°C, ensuring optimal performance in harsh environmental conditions. This extended thermal range makes it ideal for use in automotive, industrial, and outdoor communication systems, where components are often exposed to extreme temperatures.

The SN65HVD08DR operates within a similar temperature range, typically -40°C to +85°C. However, the narrower operating temperature range may limit its reliability in high-temperature environments or applications that demand extended thermal performance. The SIT65HVD08DR’s broader range ensures better reliability and stability in more demanding applications.

Data Rate and Communication Speed

The SIT65HVD08DR supports high-speed data communication with data rates up to 20 Mbps, enabling efficient real-time data transfer in various applications. This high-speed capability ensures that the device can handle fast communication in systems where low latency and quick data exchange are critical.

The SN65HVD08DR supports data rates up to 10 Mbps, which is sufficient for many industrial applications but may not meet the requirements of systems that demand faster communication. In high-speed applications, such as real-time control systems or high-performance data transmission, the SIT65HVD08DR offers a significant advantage with its higher data rate.

Fault Tolerance and Safety Features

The SIT65HVD08DR integrates advanced fault tolerance features, including built-in thermal shutdown, overload protection, and fail-safe mechanisms that ensure continued operation even under fault conditions. These features help protect the device from damage due to short circuits, overvoltage, and other electrical anomalies, making it highly suitable for mission-critical systems where reliability is paramount.

While the SN65HVD08DR also includes some fault protection features, it lacks the comprehensive fail-safe mechanisms found in the SIT65HVD08DR. The SIT65HVD08DR’s superior fault-tolerant design ensures greater operational reliability in systems where continued functionality is critical, even in the presence of faults.

Electromagnetic Compatibility (EMC)

The SIT65HVD08DR provides superior electromagnetic compatibility (EMC), which is critical for ensuring reliable communication in electrically noisy environments. Its robust EMI (electromagnetic interference) immunity ensures that the device can operate in environments with high levels of electromagnetic noise, such as industrial control systems or automotive applications, without compromising data integrity.

The SN65HVD08DR, while meeting general EMC requirements, does not offer the same level of immunity to electromagnetic interference as the SIT65HVD08DR. In environments with strict EMC requirements, such as high-frequency industrial applications, the SIT65HVD08DR provides better noise immunity, ensuring more reliable data communication.

Cost-Effectiveness and Value Proposition

The SIT65HVD08DR offers excellent value for its performance, with enhanced features like higher data rate support, superior ESD protection, and better fault tolerance. While it may come at a slightly higher initial cost compared to the SN65HVD08DR, its advanced capabilities, lower power consumption, and longer operational life offer a higher return on investment in the long term. This makes the SIT65HVD08DR a more cost-effective choice in high-performance and mission-critical applications.

The SN65HVD08DR is generally priced similarly, but its lower performance in areas such as ESD protection, fault tolerance, and data rate makes it less cost-effective for applications that demand higher reliability and performance. The SIT65HVD08DR provides a superior overall value, particularly for systems where high-speed communication and rugged environmental performance are crucial.

Conclusion

In conclusion, the SIT65HVD08DR offers several clear advantages over the SN65HVD08DR, particularly in areas such as power efficiency, ESD protection, thermal performance, data rate, and fault tolerance. The SIT65HVD08DR's enhanced features make it a more reliable and efficient solution for high-performance applications in industrial, automotive, and communication systems. While the SN65HVD08DR is a competent device, the SIT65HVD08DR stands out for its superior performance and long-term value in demanding applications, making it the better choice for customers seeking high reliability and advanced features.
