TPW3157A-CR Low Voltage 5Ω SPDT Analog Switch

Overview of TPW3157A-CR and TS5A3157DCKR

The TPW3157A-CR from 3peak is a high-performance analog switch that offers low ON resistance, high-speed switching, and low power consumption. It is designed for precision signal routing in a variety of communication systems, consumer electronics, and industrial applications. The device operates across a wide voltage range and offers excellent noise immunity, making it suitable for high-speed analog signals.

The TS5A3157DCKR from Texas Instruments is also an analog switch with a low ON resistance and a wide voltage range. It supports similar applications and promises low power consumption and high-performance switching. However, when compared to the TPW3157A-CR, it demonstrates differences in terms of switching speed, power efficiency, and overall robustness.

Power Consumption and Efficiency

1. Low Power Consumption:

   • The TPW3157A-CR is optimized for ultra-low power operation, consuming only 1.5 µA in its off-state and maintaining minimal power loss during switching. This ensures extended battery life in portable devices and power-sensitive systems.

   • The TS5A3157DCKR also performs efficiently in terms of power consumption, but its off-state current typically ranges from 3 µA to 5 µA, making it slightly less efficient than the TPW3157A-CR. The lower off-state current of the TPW3157A-CR offers a distinct advantage in battery-powered applications, where power efficiency is critical.

Switching Speed and Performance

2. Higher Switching Speed:

   • The TPW3157A-CR boasts faster switching times, with a typical tON of 4 ns and a tOFF of 2 ns. This translates to higher performance in systems requiring high-speed switching and minimal latency, such as in high-frequency communication and data acquisition applications.

   • The TS5A3157DCKR has slightly slower switching times, with tON typically around 5 ns and tOFF around 3 ns. While adequate for many applications, the slower switching speed of the TS5A3157DCKR may not be as well-suited for high-speed data systems or advanced signal routing where fast signal transmission is critical.

Signal Integrity and Noise Immunity

3. Superior Signal Integrity:

   • The TPW3157A-CR offers excellent signal integrity with low ON resistance (RON), which is typically 0.4 Ω at VCC = 5V. This low ON resistance ensures that signal losses are minimal, making the TPW3157A-CR an excellent choice for high-precision analog signal routing in audio, video, and data transmission systems.

   • The TS5A3157DCKR has a similar ON resistance of approximately 0.6 Ω, which is slightly higher than that of the TPW3157A-CR. The higher ON resistance can cause a slight signal attenuation, which may be more noticeable in sensitive signal applications where signal quality is paramount.

ESD Protection and Robustness

4. Enhanced ESD Protection:

   • The TPW3157A-CR is designed with stronger ESD protection, with the ability to withstand ±8 kV contact and ±15 kV air discharge, making it highly suitable for industrial and automotive environments where electrostatic discharge is a concern.

   • The TS5A3157DCKR offers ±4 kV contact and ±8 kV air discharge protection. While this level of protection is sufficient for most consumer applications, the TPW3157A-CR provides a higher level of durability and reliability in more challenging environments.

Package and Form Factor

5. Compact and Flexible Packaging:

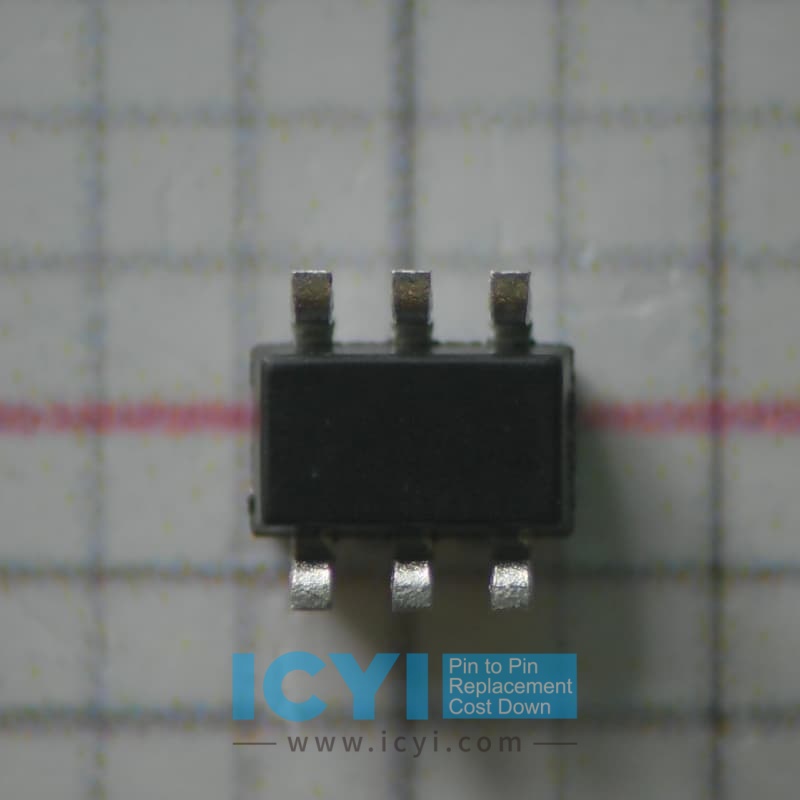

   • The TPW3157A-CR is available in a compact SOT-23-5 package, offering space-saving solutions for portable electronics and compact systems that require small form factors.

   • The TS5A3157DCKR comes in a SOT-23-6 package, which is slightly larger than the TPW3157A-CR. While still compact, the TPW3157A-CR’s smaller package gives it an edge in applications where space constraints are critical, especially in wearable and IoT devices.

Cost-Effectiveness and Value

6. Cost-Effective Performance:

   • The TPW3157A-CR offers a high-value proposition by delivering superior performance in terms of power consumption, switching speed, and signal integrity, all at a competitive price point. Its enhanced ESD protection and low ON resistance make it a great choice for cost-sensitive designs without compromising on performance.

   • The TS5A3157DCKR is a reliable choice in many applications but may be priced higher due to its slightly less efficient performance in areas like ESD protection and switching speed. The TPW3157A-CR delivers better overall value for designs requiring both performance and cost-effectiveness.

Conclusion

In conclusion, the TPW3157A-CR from 3peak clearly outperforms the TS5A3157DCKR in key aspects such as power consumption, switching speed, signal integrity, and ESD protection. The TPW3157A-CR provides faster switching, lower ON resistance, and better durability, making it an ideal choice for high-speed communication, portable devices, and industrial systems.

For applications requiring high performance, space efficiency, and reliability, the TPW3157A-CR is the superior option over the TS5A3157DCKR, offering a better balance of performance and cost.
