TPW4051-SR 12V General Purpose Analog Switch

Overview of TPW4051-SR and CD74HC4051M

The TPW4051-SR from 3peak is an 8-channel analog multiplexer that operates with low ON resistance, high signal integrity, and high-speed switching. It is designed for a wide range of applications, including signal routing, data acquisition systems, and audio/video signal processing. The TPW4051-SR is especially suited for high-precision analog systems requiring low distortion and low power consumption.

The CD74HC4051M from Texas Instruments is also an 8-channel analog multiplexer featuring low ON resistance and designed for similar applications, such as audio systems and analog signal routing. However, when compared to the TPW4051-SR, it has certain limitations in terms of switching speed, signal integrity, and overall power efficiency.

Power Consumption and Efficiency

1. Low Power Consumption:

   • The TPW4051-SR is optimized for ultra-low power operation, featuring a low quiescent current and minimal power loss during signal switching. It operates at a supply voltage range of 2.7V to 5.5V, which contributes to its power efficiency in battery-powered devices and portable applications.

   • The CD74HC4051M has a similar operating voltage range but tends to draw slightly more current during switching events, especially in higher-speed operations. This results in a higher overall power consumption, which may not be as ideal for low-power systems as the TPW4051-SR.

Switching Speed and Performance

2. Higher Switching Speed:

   • The TPW4051-SR offers faster switching times with tON typically in the range of 3 ns and tOFF around 2 ns, providing quick signal routing in high-speed applications. Its low capacitance and high switching speed make it a top choice for systems requiring minimal signal delay and low latency.

   • The CD74HC4051M typically has a slower switching speed compared to the TPW4051-SR, with tON values around 5 ns and tOFF values around 4 ns. While adequate for many standard applications, the slower switching can introduce latency and signal delay in high-speed communication systems, which makes the TPW4051-SR more suitable for precision applications where speed is critical.

Signal Integrity and Noise Immunity

3. Superior Signal Integrity:

   • The TPW4051-SR excels in maintaining high signal integrity by minimizing ON resistance (typically around 0.4 Ω) and OFF capacitance. This results in minimal signal loss and low distortion, ensuring accurate transmission of analog signals in applications that require high fidelity.

   • The CD74HC4051M also offers low ON resistance, but with a higher typical resistance (around 0.5 Ω) and higher capacitance at the OFF state. These slight differences can result in slightly higher signal degradation and lower accuracy in sensitive analog signal processing compared to the TPW4051-SR.

ESD Protection and Robustness

4. Enhanced ESD Protection:

   • The TPW4051-SR is designed with improved ESD protection, capable of withstanding ±8 kV contact and ±15 kV air discharge. This makes the TPW4051-SR a more robust choice for industrial, automotive, and harsh environment applications where electrostatic discharge could damage the device.

   • The CD74HC4051M, on the other hand, offers lower ESD protection, with ±4 kV contact and ±8 kV air discharge protection. While it is suitable for consumer-grade applications, the lower ESD protection may be a limitation in sensitive or industrial-grade systems where higher durability is required.

Package and Form Factor

5. Compact and Flexible Packaging:

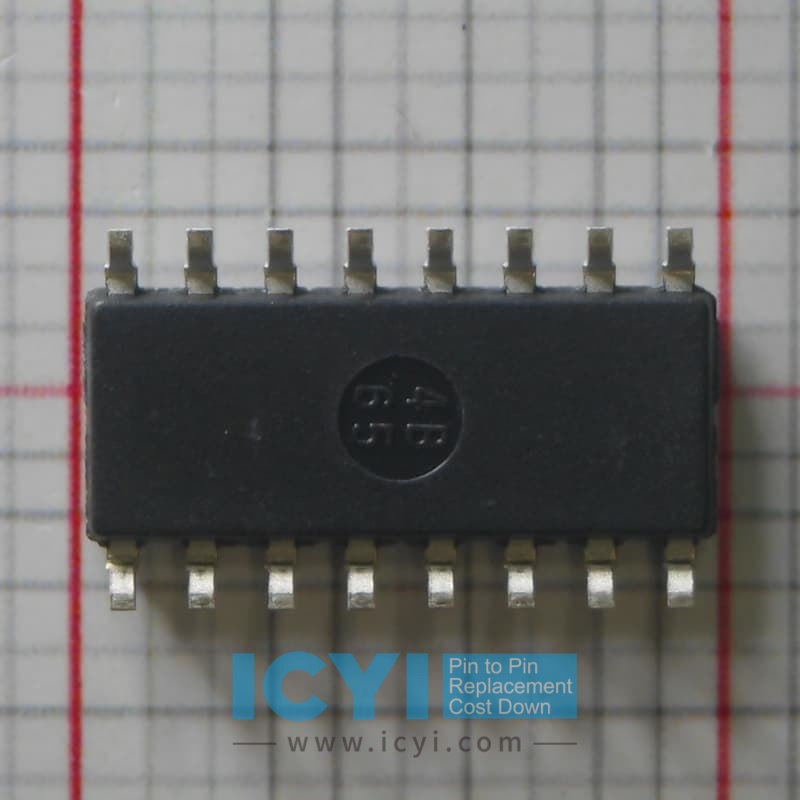

   • The TPW4051-SR is available in a compact 16-pin SOIC package, ideal for space-constrained applications. This compact form factor is particularly beneficial in systems that require high channel density while maintaining a small physical footprint, such as in portable or IoT devices.

   • The CD74HC4051M is also available in a similar package, but it typically comes in a 20-pin package for the wide-body version. This makes the TPW4051-SR a more space-efficient option in designs where PCB real estate is at a premium.

Cost-Effectiveness and Value

6. Cost-Effective Performance:

   • The TPW4051-SR offers superior performance in switching speed, signal integrity, and ESD protection at a competitive price, making it a cost-effective choice for a wide range of applications, including high-performance systems in medical and communications sectors.

   • The CD74HC4051M, while reliable for general applications, may be priced similarly, but with slightly less performance in speed, signal quality, and robustness. Therefore, the TPW4051-SR provides a better value for applications that demand both performance and cost-effectiveness.

Conclusion

In conclusion, the TPW4051-SR from 3peak outperforms the CD74HC4051M in several critical areas, including switching speed, signal integrity, power efficiency, and robustness. The TPW4051-SR provides lower ON resistance, faster switching, and superior ESD protection, making it ideal for high-speed communication, precision analog systems, and demanding industrial environments.

For designers seeking high performance with low latency, high signal accuracy, and better durability, the TPW4051-SR offers a clear advantage over the CD74HC4051M and is the preferred choice for advanced analog signal routing applications.
