TPW4051-TR 12V General Purpose Analog Switch

Overview of TPW4051-SR and CD74HC4051PWR

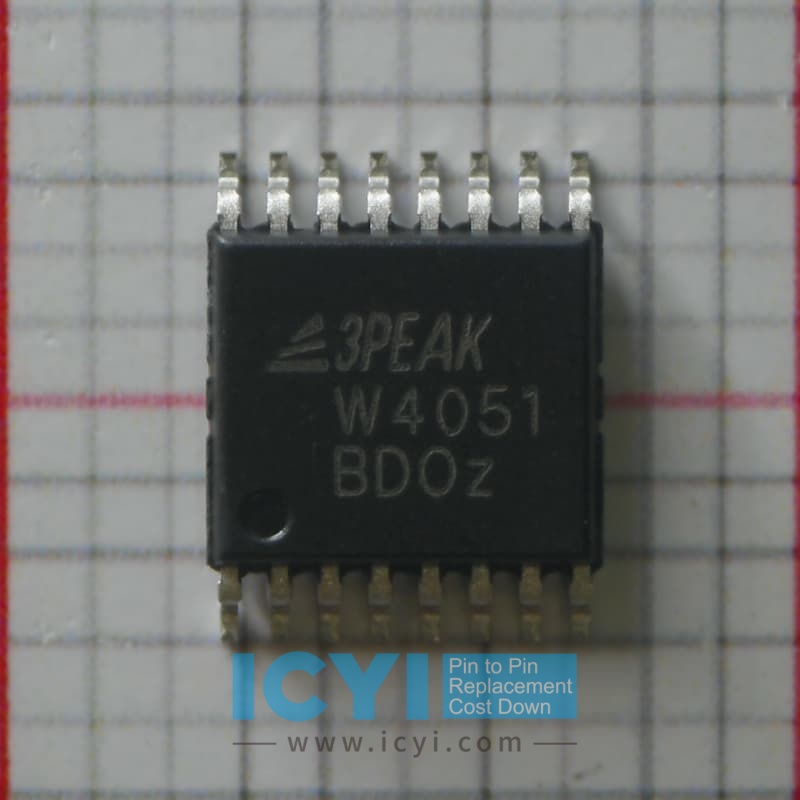

The TPW4051-SR is an 8-channel analog multiplexer from 3peak designed to offer low ON resistance, high switching speed, and excellent signal integrity. It operates at a supply voltage range of 2.7V to 5.5V, making it suitable for applications in portable devices, signal routing, and data acquisition systems. The chip is optimized for low power consumption and high-speed switching, delivering precise and reliable performance in demanding environments.

The CD74HC4051PWR is also an 8-channel analog multiplexer from Texas Instruments that operates in the 2V to 6V supply voltage range. While it offers similar functionality to the TPW4051-SR, the CD74HC4051PWR is designed with slightly lower performance characteristics in terms of speed, signal fidelity, and power efficiency. Below, we will examine the key differences between these two products.

Power Consumption and Efficiency

1. Power Efficiency:

   • The TPW4051-SR is optimized for low power operation, with quiescent current typically below 1 μA. This makes it an ideal choice for battery-operated devices and low-power systems that require extended operational life. Its low standby power contributes to overall system power savings, especially in portable applications like wearable electronics and IoT devices.

   • In comparison, the CD74HC4051PWR consumes a higher quiescent current, typically around 2 μA. While still efficient for many applications, the CD74HC4051PWR may not be as suitable for ultra-low-power designs where minimizing power consumption is critical.

Switching Speed and Performance

2. Faster Switching Speed:

   • The TPW4051-SR is capable of faster switching speeds, with tON (turn-on time) typically around 3 ns and tOFF (turn-off time) around 2 ns. This high-speed performance is crucial for applications that require low latency and rapid signal routing, such as high-frequency communication systems and data acquisition circuits.

   • The CD74HC4051PWR, while functional for most standard applications, has a slower switching speed, with tON typically around 5 ns and tOFF around 4 ns. This makes it less ideal for systems where minimal signal delay is essential, such as in precision analog systems and high-speed signal processing.

Signal Integrity and Noise Immunity

3. Superior Signal Integrity:

   • The TPW4051-SR provides superior signal integrity due to its low ON resistance, typically around 0.4 Ω, and low capacitance when the multiplexer is in the OFF state. This results in minimal signal degradation and distortion, ensuring that analog signals are routed with high accuracy and fidelity.

   • The CD74HC4051PWR, on the other hand, has a slightly higher ON resistance, typically around 0.5 Ω, and slightly higher OFF capacitance. These factors can lead to a marginal increase in signal loss and lower accuracy, particularly when handling high-frequency signals or precise analog data.

ESD Protection and Robustness

4. Enhanced ESD Protection:

   • The TPW4051-SR offers enhanced ESD protection, capable of withstanding ±8 kV contact and ±15 kV air discharge. This makes it highly robust and suitable for use in industrial, automotive, and other harsh environments where electrostatic discharge (ESD) could damage sensitive components.

   • The CD74HC4051PWR, while providing reasonable ESD protection, is rated for ±4 kV contact and ±8 kV air discharge, offering lower protection compared to the TPW4051-SR. This makes the TPW4051-SR a more durable choice for systems that operate in environments with higher electrostatic discharge risks.

Package and Form Factor

5. Compact and Flexible Packaging:

   • The TPW4051-SR is available in a compact 16-pin SOIC package, ideal for applications that require a small footprint and high channel density. Its compact design makes it well-suited for space-constrained applications such as handheld devices and portable measurement instruments.

   • The CD74HC4051PWR typically comes in a wide-body 16-pin PDIP package. While this is suitable for through-hole designs, the larger form factor may not be ideal for compact PCB designs where minimizing space is crucial. The TPW4051-SR offers a more space-efficient solution for modern designs requiring smaller packages.

Cost-Effectiveness and Value

6. Competitive Pricing and Value:

   • The TPW4051-SR delivers outstanding performance in terms of speed, signal integrity, and power efficiency at a competitive price point, offering significant value for high-performance applications. Its advanced features, including low power consumption and enhanced ESD protection, provide an excellent return on investment for customers looking to optimize system performance and reliability.

   • The CD74HC4051PWR, while a reliable product, may come at a similar or slightly lower price, but its slower switching speed, higher power consumption, and lower ESD protection could translate into additional system costs in applications where performance and durability are paramount.

Conclusion

In conclusion, the TPW4051-SR from 3peak offers significant advantages over the CD74HC4051PWR in key areas such as switching speed, signal integrity, power consumption, and ESD protection. The TPW4051-SR excels in providing low latency, high signal fidelity, and robust performance, making it the preferred choice for high-performance analog systems, high-speed data acquisition, and portable applications.

For designers looking for a cost-effective, high-performance solution, the TPW4051-SR is a superior option, offering better value with enhanced features compared to the CD74HC4051PWR.
