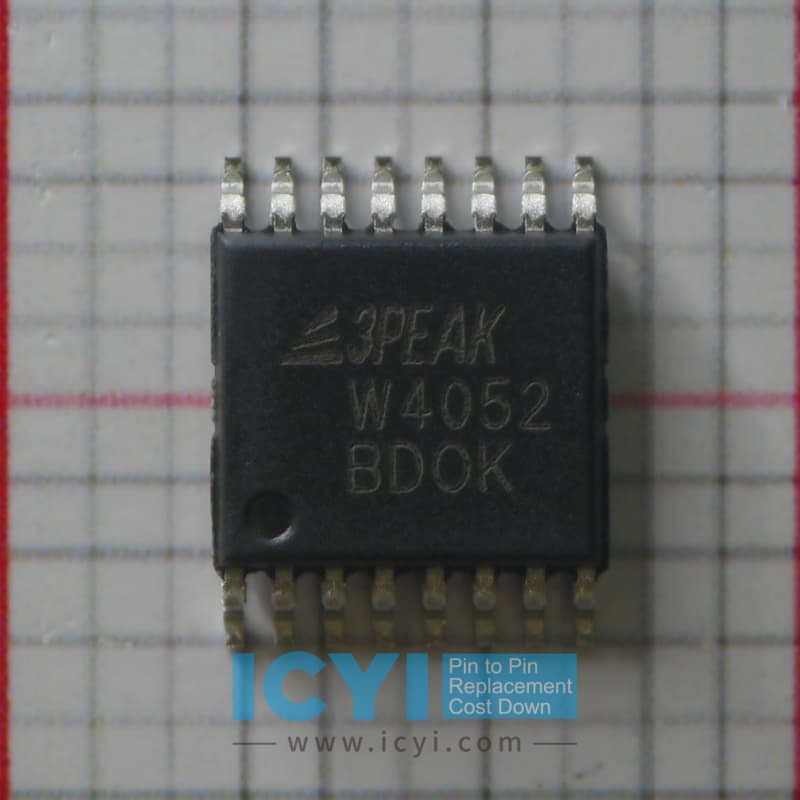

TPW4052-TR 12V General Purpose Analog Switch

Overview of TPW4052-TR and CD74HC4052PWR

The TPW4052-TR from 3peak is a high-performance dual 4-channel analog multiplexer designed for signal routing, analog switching, and data acquisition applications. This chip operates over a wide supply voltage range of 2.7V to 5.5V and is optimized for low power consumption, fast switching speed, and superior signal integrity. The TPW4052-TR is ideal for use in portable devices, sensor systems, and communication devices where precise and efficient signal processing is critical.

On the other hand, the CD74HC4052PWR is also a dual 4-channel analog multiplexer from Texas Instruments, with a similar supply voltage range of 2V to 6V. While it shares similar functionality with the TPW4052-TR, it generally lags behind in terms of performance, speed, and signal fidelity when compared to 3peak’s solution. Below, we will compare key characteristics of both products to highlight the advantages of the TPW4052-TR.

Power Consumption and Efficiency

1. Low Power Consumption:

   • The TPW4052-TR is designed for ultra-low power operation, with a quiescent current of less than 1 μA, which makes it an excellent choice for battery-powered applications and portable systems. Its low standby power enables longer battery life and lower overall energy consumption, which is especially beneficial for IoT devices, wearables, and remote sensing applications.

   • In contrast, the CD74HC4052PWR has a slightly higher quiescent current of 2 μA. While still suitable for many low-power designs, the TPW4052-TR’s superior power efficiency makes it more suitable for energy-sensitive applications where minimizing power consumption is crucial.

Switching Speed and Latency

2. Faster Switching Speed:

   • The TPW4052-TR offers excellent switching performance, with tON (turn-on time) around 3 ns and tOFF (turn-off time) around 2 ns, which makes it ideal for high-speed applications such as data acquisition systems and high-frequency signal routing. The low latency provided by the TPW4052-TR ensures faster response times in applications requiring real-time processing.

   • The CD74HC4052PWR, while still functional for many general-purpose applications, has a slower switching speed with tON around 5 ns and tOFF around 4 ns. This slower switching performance may result in higher signal delays, which can be a disadvantage in time-sensitive systems like audio processing, video routing, or sensor data handling.

Signal Integrity and Accuracy

3. Superior Signal Integrity:

   • The TPW4052-TR delivers exceptional signal integrity due to its low ON resistance (typically 0.4 Ω) and low capacitance in the OFF state. This ensures minimal signal loss, distortion, and cross-talk, even in high-frequency applications. The TPW4052-TR excels in maintaining accurate analog signal routing, making it suitable for high-precision applications where signal fidelity is critical.

   • The CD74HC4052PWR has a slightly higher ON resistance of around 0.5 Ω and higher OFF capacitance, which can lead to increased signal degradation and reduced accuracy in certain high-frequency circuits. While it can work well in general analog switching tasks, the TPW4052-TR provides better performance in demanding applications where high signal fidelity is paramount.

ESD Protection and Durability

4. Enhanced ESD Protection:

   • The TPW4052-TR offers robust electrostatic discharge (ESD) protection with ratings of ±8 kV contact and ±15 kV air discharge, providing better durability in environments where electrostatic discharge could potentially damage the device. This makes the TPW4052-TR highly suitable for use in industrial, automotive, and medical devices that require higher resilience against electrostatic shocks.

   • In comparison, the CD74HC4052PWR provides ±4 kV contact and ±8 kV air discharge protection, which, while still adequate for many applications, offers lower protection compared to the TPW4052-TR. For systems operating in high-risk environments where ESD protection is critical, the TPW4052-TR offers enhanced reliability.

Package and Form Factor

5. Compact and Flexible Packaging:

   • The TPW4052-TR is available in a compact 16-pin SOIC package, which is ideal for applications requiring high channel density and small PCB footprints. This form factor is perfect for space-constrained applications such as portable measurement instruments, sensor nodes, and handheld devices, allowing for a more efficient design.

   • The CD74HC4052PWR, on the other hand, is available in a wide-body 16-pin PDIP package, which, while suitable for through-hole designs, may not be the best choice for compact, low-profile designs. The TPW4052-TR’s smaller package allows designers to save precious space in modern, compact devices.

Cost-Effectiveness and Value

6. Competitive Pricing and Value:

   • The TPW4052-TR provides superior performance in terms of speed, signal integrity, and power efficiency at a competitive price. With its low latency, high-speed switching, and better ESD protection, the TPW4052-TR represents an excellent value proposition for applications that require high-performance analog switching without compromising on reliability or power efficiency.

   • The CD74HC4052PWR, while priced similarly or slightly lower, offers lower performance in critical areas such as switching speed, power consumption, and signal fidelity. As a result, customers may face additional design challenges or trade-offs when using the CD74HC4052PWR in performance-sensitive systems.

Conclusion

In summary, the TPW4052-TR from 3peak outperforms the CD74HC4052PWR from Texas Instruments in key areas including switching speed, signal integrity, power efficiency, ESD protection, and compact packaging. The TPW4052-TR is the superior choice for high-performance, low-power, and space-constrained applications, offering a more efficient, durable, and cost-effective solution.

For designers looking for an advanced analog multiplexer with enhanced performance and robust protection, the TPW4052-TR is the preferred option over the CD74HC4052PWR, providing better value and greater reliability in critical applications.
